Engine Control System (Introduction)
>>
System Description
>>
System
>>
Engine Control System
>>
ENGINE CONTROL SYSTEM: System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
ENGINE CONTROL SYSTEM: System Diagram

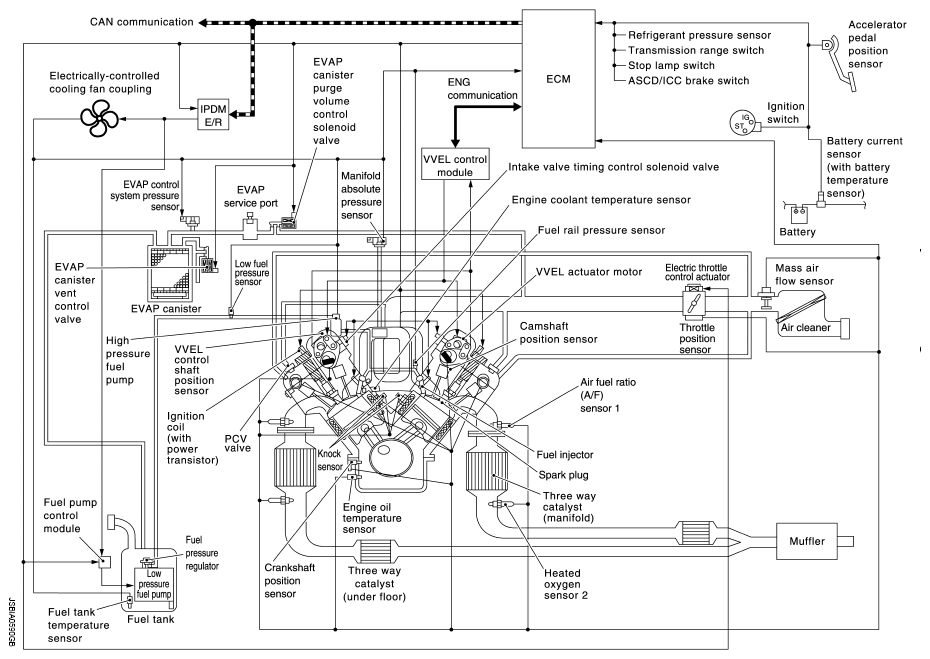

Fig 1: Engine Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
