Component Parts Location

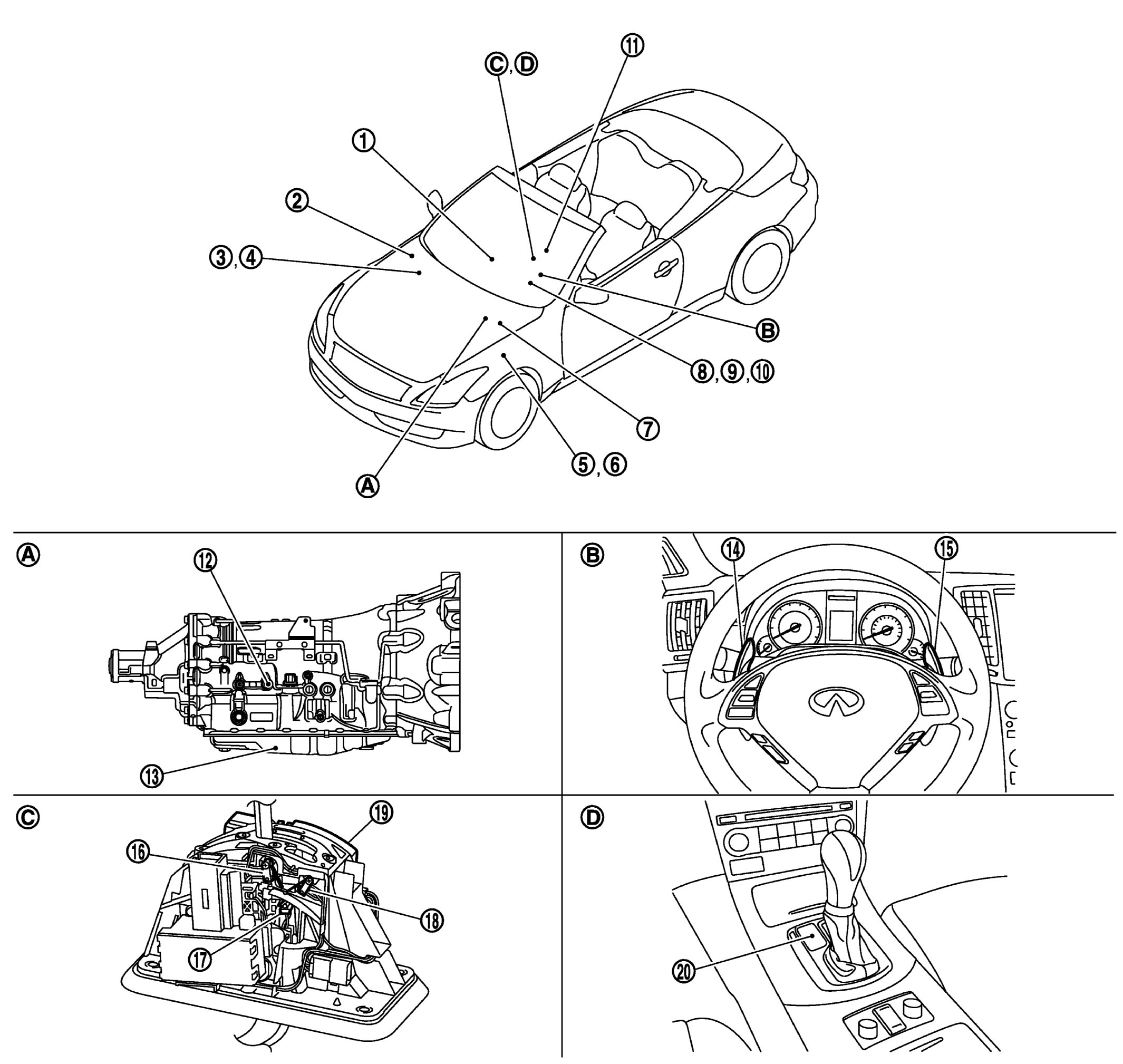

Fig 1: Shift Change Control System Component Parts Location

G08243984

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Unified meter and A/C amp. Refer to COMPONENT PARTS LOCATION .	2.	IPDM E/R Refer to COMPONENT PARTS LOCATION .	3.	ECM Refer to COMPONENT PARTS LOCATION .
4.	BCM Refer to COMPONENT PARTS LOCATION .	5.	Accelerator pedal position sensor Refer to COMPONENT PARTS LOCATION .	6.	Stop lamp switch Refer to COMPONENT PARTS LOCATION .
7.	ABS actuator and electric unit (control unit) Refer to COMPONENT PARTS LOCATION .	8.	A/T CHECK indicator lamp (On the combination meter)	9.	Shift position indicator (On the combination meter)
10.	Manual mode indicator (On the combination meter)	11.	Yaw rate/side G sensor Refer to COMPONENT PARTS LOCATION .	12.	Joint connector
13.	Control valve & TCM^*1	14.	Paddle shifter (shift-down)^*2	15.	Paddle shifter (shift-up)^*2
16.	Manual mode position select switch (shift-up)	17.	Manual mode select switch	18.	Manual mode position select switch (shift-down)
19.	Shift position switch	20.	Selector lever position indicator
A.	A/T assembly	B.	Steering wheel	C.	A/T shift selector assembly
D.	Center console

NOTE:

The following components are included in control valve & TCM.
- TCM
- Input speed sensor 1, 2
- Output speed sensor
- A/T fluid temperature sensor
- Transmission range switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve

*1: Control valve & TCM is included in A/T assembly.

*2: With paddle shifter
