Component Parts Location

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

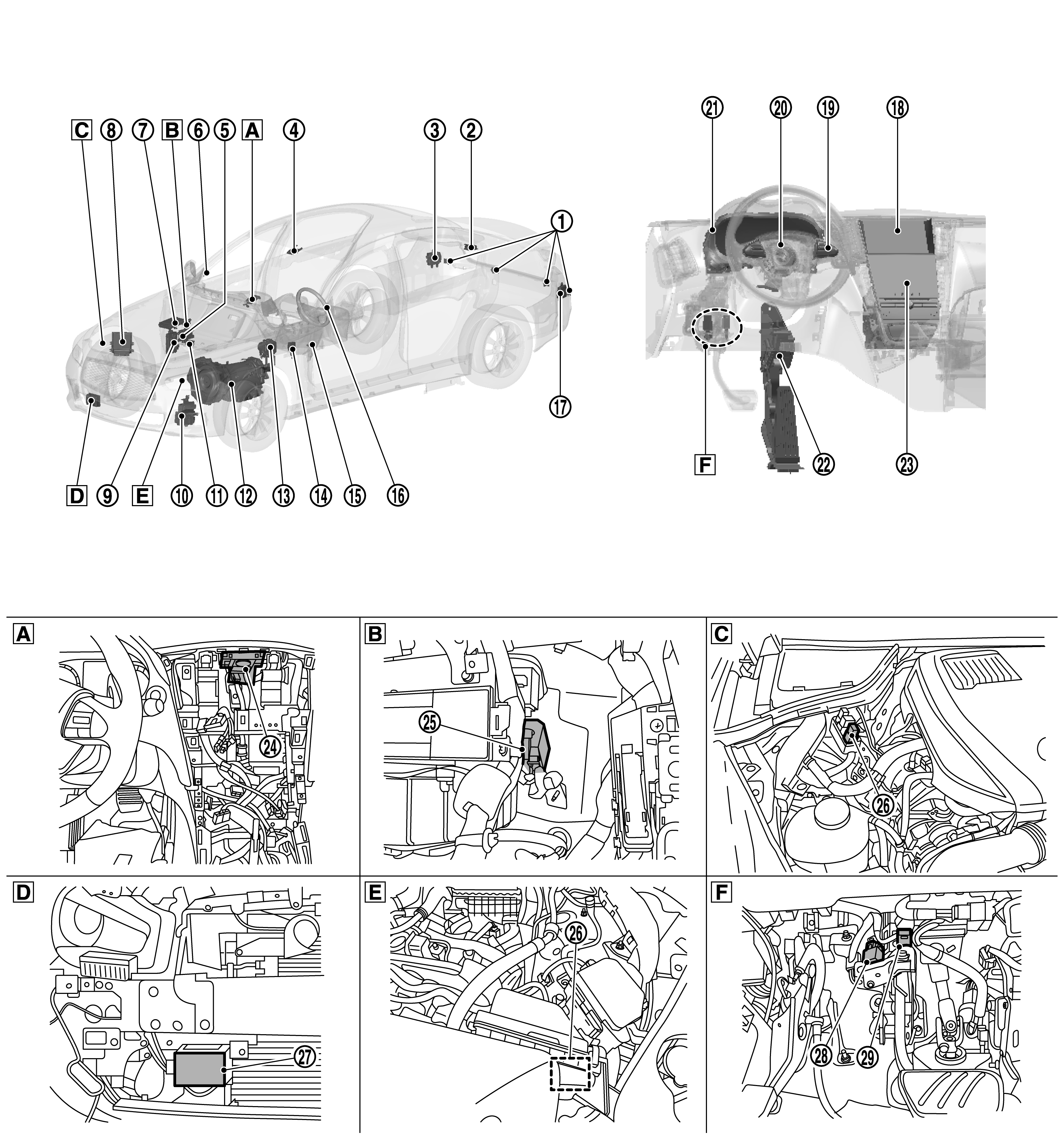

	Instrument panel (Center)		Instrument lower panel (RH)		Engine room (RH) (2.0L turbo gasoline engine)
	Front bumper (RH)		Engine room (LH) (VR30DDTT)	Upper side of brake pedal

No.	Component	Description
	Sonar sensor (rear)	When a distance from an obstacle is detected, a distance signal is transmitted to the sonar control unit. Refer to Component Parts Location for detailed installation location.
	ADAS control unit	ADAS control unit calculates a target distance between vehicles and a target speed, based on signals received from each sensor and switch to transmit a brake fluid pressure control signal to ABS actuator and electric unit (control unit) via CAN communication ADAS control unit transmits the buzzer output signal to the combination meter via CAN communication ADAS control unit transmits an accelerator pedal feedback force control signal to the accelerator pedal actuator via ITS communication Refer to Component Parts Location for detailed installation location.
	Side radar RH	Refer to Side Radar LH/RH
	Lane camera unit	Refer to Lane Camera Unit
	EMCM	EMCM transmits the brake pedal position switch signal and stop lamp switch signal to ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location.
	Blind Spot Warning/Blind Spot Intervention indicator RH	Refer to Blind Spot Warning/Blind Spot Intervention Indicator LH/RH
	ECM (2.0L turbo gasoline engine)	ECM transmits the accelerator pedal position signal, ICC brake switch signal, stop lamp switch signal, ICC steering switch signal, etc. to ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location.
	ECM (VR30DDTT)	ECM transmits the accelerator pedal position signal, ICC brake switch signal, stop lamp switch signal, ICC steering switch signal, etc. to ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location.
	BCM	Transmits the turn indicator signal and position light request signal to ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location.
	Steeling angle main control module	Direct adaptive steering system is controlled by three control modules of steering force control module, steering angle main control module and steering angle sub control module. Receives steering reaction force request signal and controls the steering reaction force. Refer to Component Parts Location for detailed installation location.
	Sonar control unit	The warning buzzer outputs by inputting the sensor signal from sonar sensors. Sensor signal that corresponds to the detected distance to an obstacle is transmitted to around view monitor control unit via can communication. Refer to Component Parts Location for detailed installation location.
	TCM	TCM transmits the signal related to A/T control to ADAS control unit. Refer to Component Parts Location for detailed installation location.
	ABS actuator and electric unit (control unit)	ABS actuator and electric unit (control unit) transmits the vehicle speed signal (wheel speed), stop lamp signal and VDC/TCS/ABS system operation condition to ADAS control unit via CAN communication ABS actuator and electric unit (control unit) controls the brake, based on a brake fluid pressure control signal received from ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location.
	Chassis control module	Chassis control module transmits the drive mode signal to ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location.
	Buzzer	The warning buzzer sounds with the signal from the sonar control unit. Refer to Component Parts Location for detailed installation location.
	Blind Spot Warning/Blind Spot Intervention indicator LH	Refer to Blind Spot Warning/Blind Spot Intervention Indicator LH/RH
	Side radar LH	Refer to Side Radar LH/RH
	Display control unit	Display control unit transmits the system selection signal to ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location.
	Dynamic driver assistance switch (On the ICC steering switch)	ECM receives an ICC steering switch (dynamic driver assistance switch) signal and transmits the signal to ADAS control unit via CAN communication (VR30DDTT) ADAS control unit receives an ICC steering switch (dynamic driver assistance switch) signal (2.0 TURBO GASOLINE ENGINE)
	Steering angle sensor	Measures the rotation amount, rotation speed, and rotation direction of steering wheel, and then transmits them to ADAS control unit via CAN communication Refer to Component Parts Location for detailed installation location.
	Combination meter	Performs the following operations using the signals received from the ADAS control unit via the CAN communication Displays the system operation status using the meter display signal Illuminates the system FEB warning lamp using the FEB warning lamp signal Operates the buzzer using the buzzer output signal Refer to Component Parts Location for detailed installation location.
	Accelerator pedal actuator	Refer to Accelerator Pedal Actuator
	Integral switch	Change each system setting by switch operation Refer to Component Parts Location for detailed installation location.
	Driver assistance buzzer	Refer to Driver Assistance Buzzer
	Driver assistance buzzer control module	Refer to Driver Assistance Buzzer Control Module
	ICC brake hold relay	Refer to ICC Brake Hold Relay
	ICC sensor	Refer to ICC Sensor
	Stop lamp switch	Refer to Brake Pedal Position Switch / Stop Lamp Switch
	Brake pedal position switch	Refer to Brake Pedal Position Switch / Stop Lamp Switch
