Method Of Starting

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Start condition of on board self-diagnosis

ICC system OFF
Intelligent Distance Control system OFF
Vehicle speed 0 km/h (0 MPH)

Turn the ignition switch OFF.
Start the engine.
Wait for 5 seconds after starting the engine. Push up the RESUME/ACCELERATE switch 5 times and push down the SET/COAST switch 5 times within 10 seconds.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: If the above operation cannot be performed within 10 seconds after waiting for 5 seconds after starting the engine, repeat the procedure from step 1.

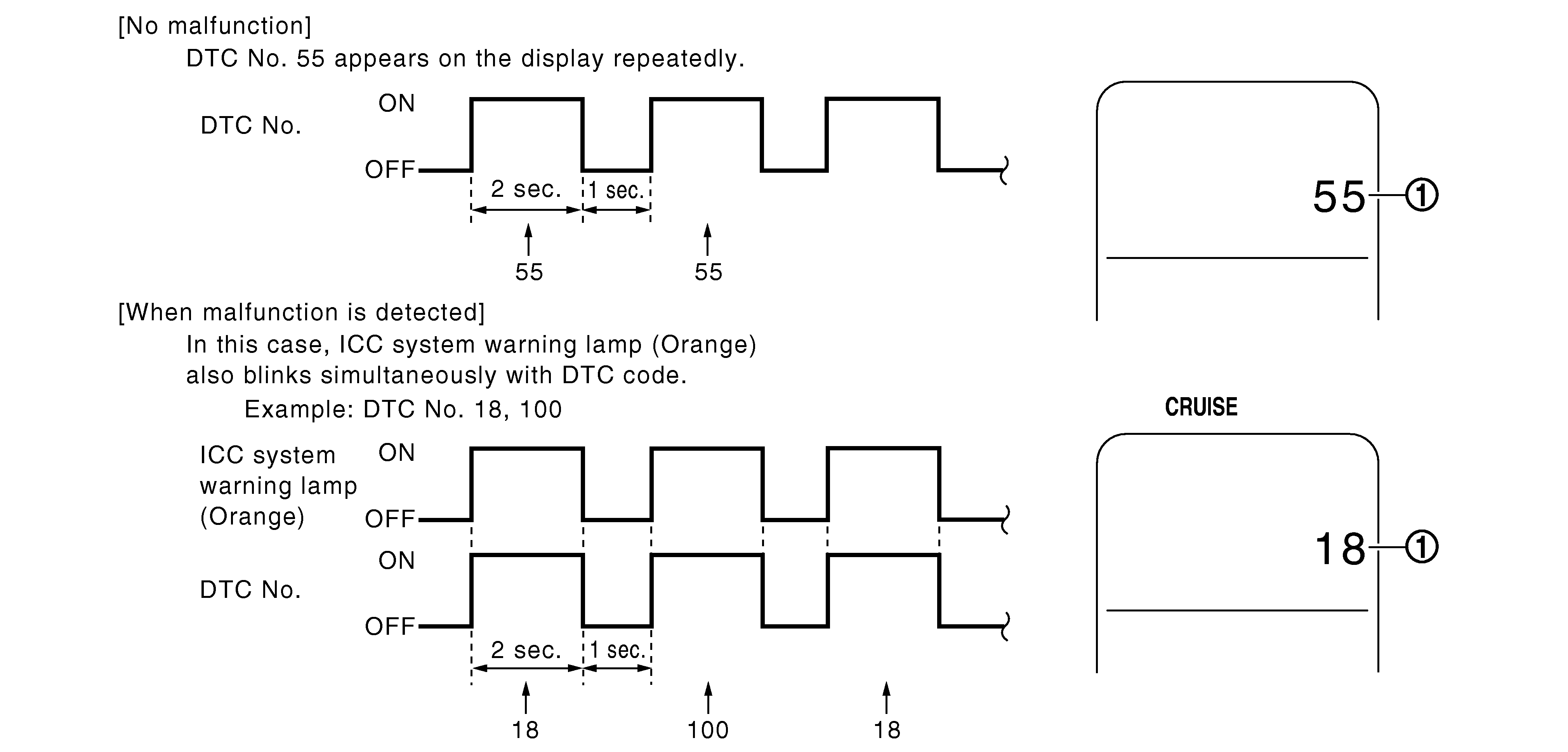

The DTC is displayed on the set vehicle speed indicator on the ICC system display on the information display when the on board self-diagnosis starts. Refer to DTC Index .

Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
- It displays for up to 5 minutes and then stops.
- If multiple malfunctions exist, up to 6 DTCs can be stored in memory at the most, and the most recent one is displayed first.
