Work Procedure (Preparation)

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

ADVANCE PREPARATION FOR RADAR ALIGNMENT

Adjust all tire pressure to the specified value.
Empty the vehicle. (Remove any luggage from the passenger compartment, trunk room, etc.)
Shift the selector lever to "P" position, and release the parking brake.
Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.

Clean the ICC sensor area

of the front bumper grille.

Courtesy of NISSAN NORTH AMERICA, INC.

GO TO 2.

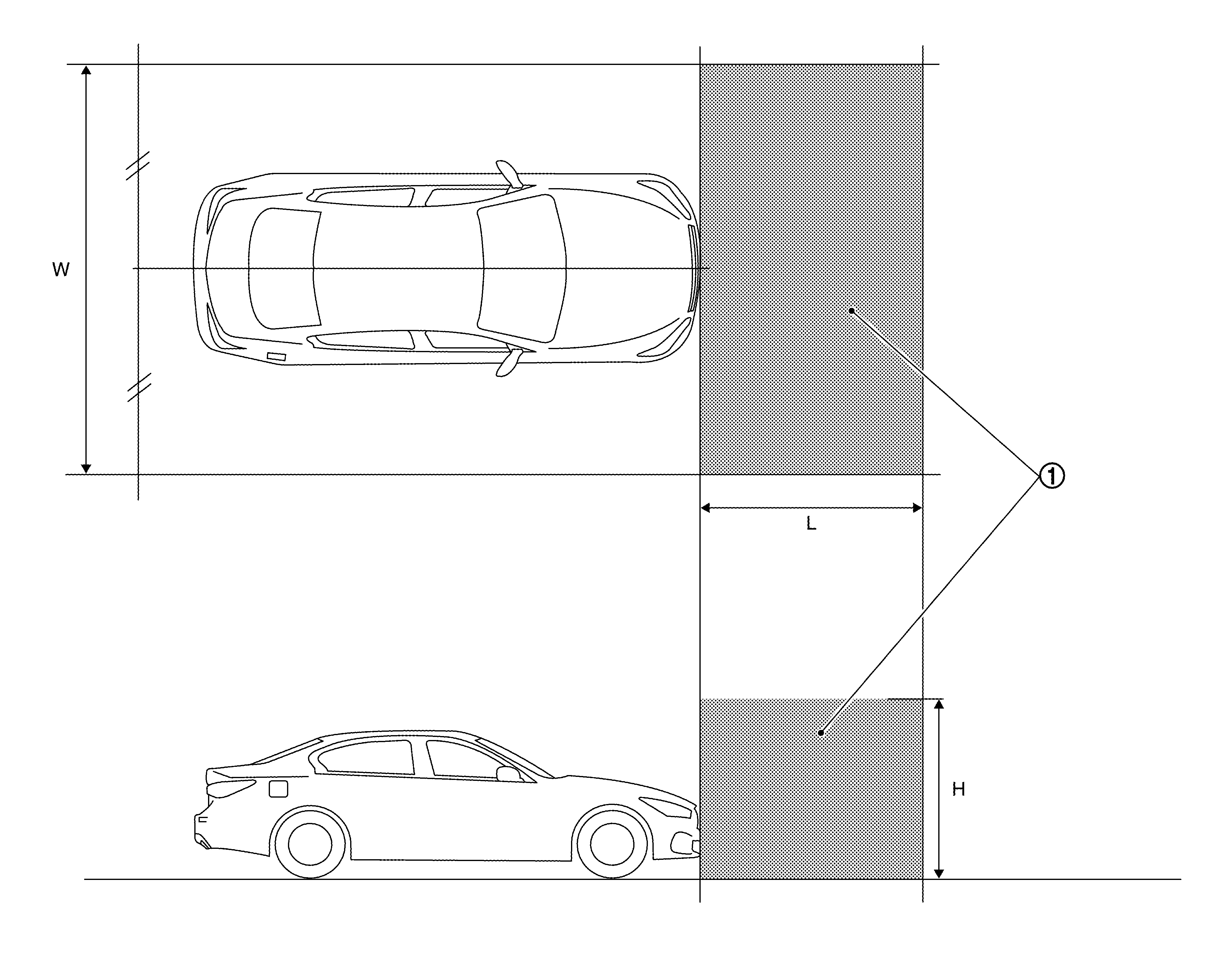

RADAR ALIGNMENT OPERATION AREA

Position the vehicle in a place that is level and where area can be secured.

Courtesy of NISSAN NORTH AMERICA, INC.

W	: 3000 mm (118.11 in)
L	: 2000 mm (78.74 in)
H	: 2000 mm (78.74 in)

NOTE:

is a no object zone.

Go to Work Procedure (Setting The ICC Target Board) .
