Section 414 (Security Control System)
>>
System Description
>>
System
>>
Vehicle Security System
>>

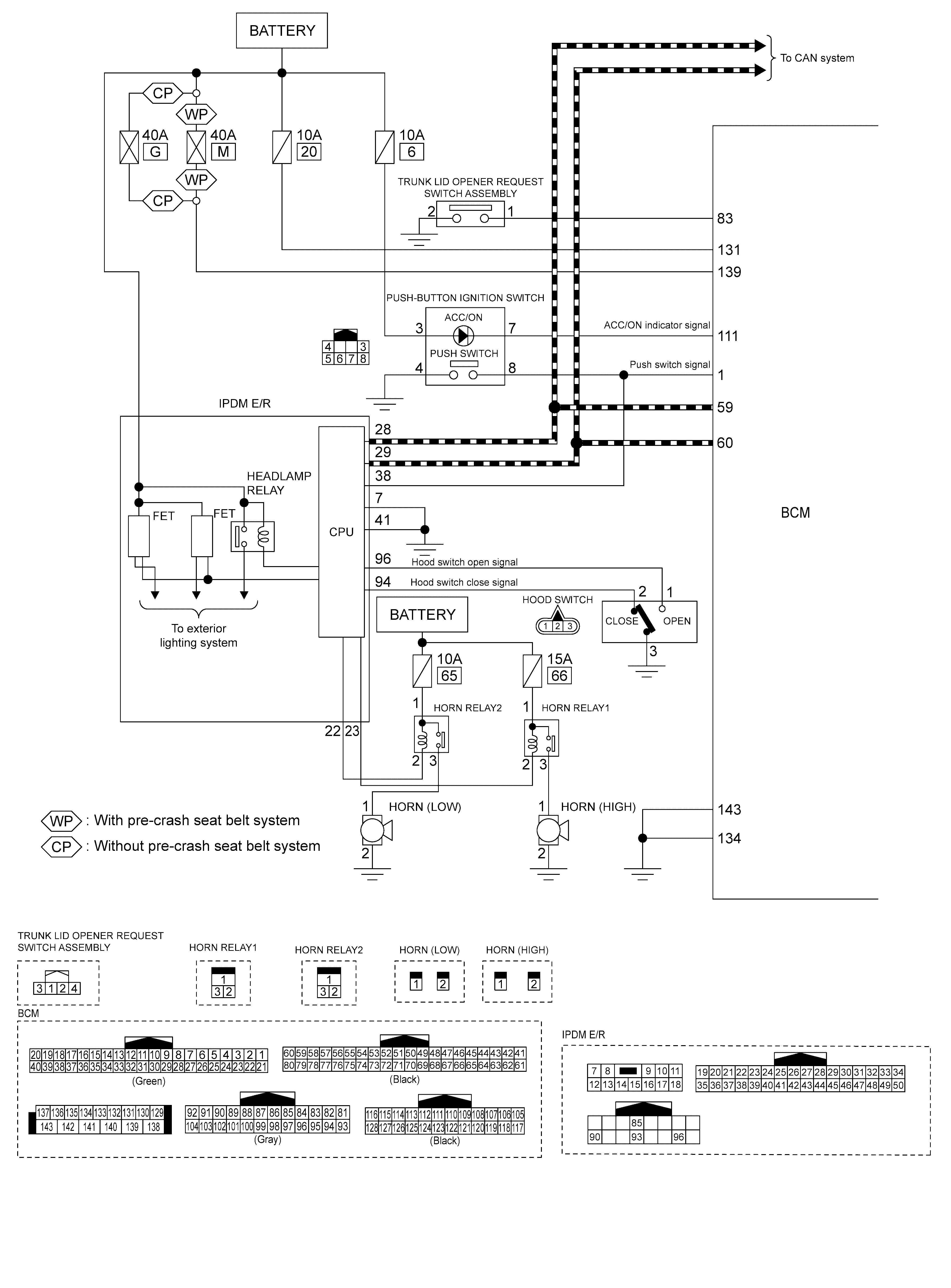

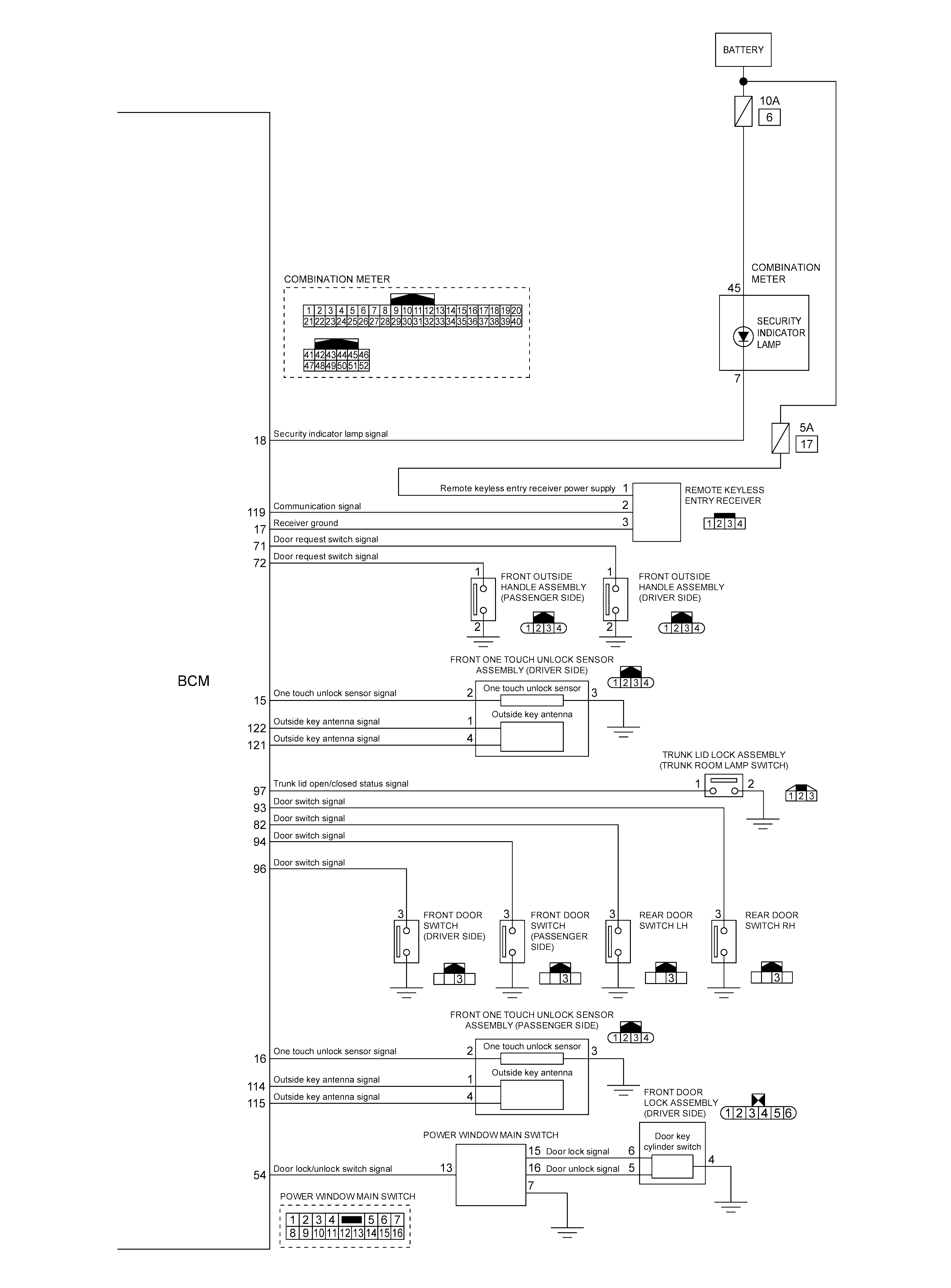

Circuit Diagram
>>
For VR30DDTT Engine Models
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
For VR30DDTT Engine Models
WARNING:
This page is about a different car, the 2019 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
