Component Location

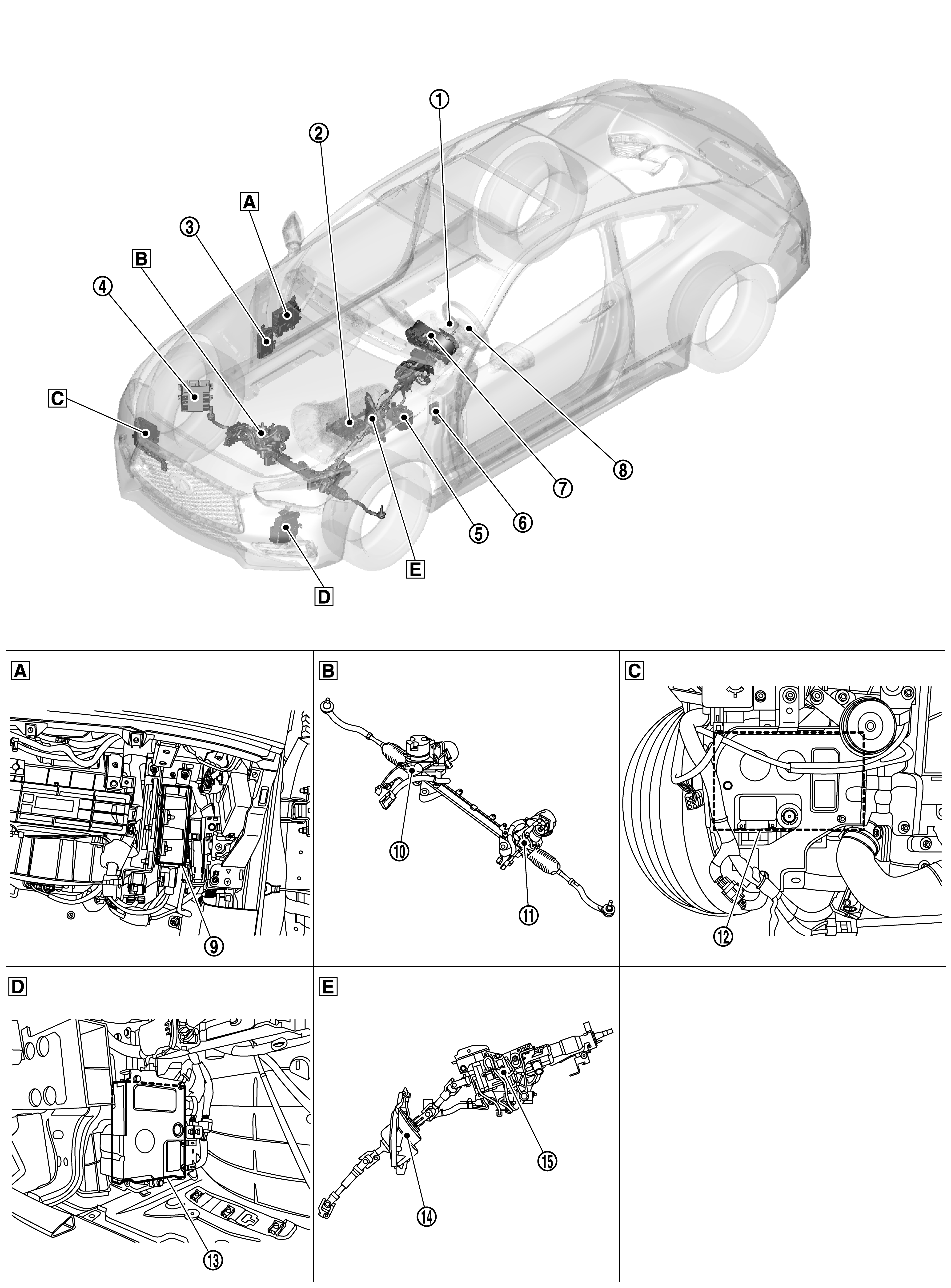

GNSJSGIA2194Z-194Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Behind of glove box

SYMBOL

Steering gear assembly

SYMBOL

Behind of front bumper (right side)

SYMBOL

Behind of front bumper (left side)

SYMBOL

Steering column assembly and steering shaft assembly

No.

Component

Function

SYMBOL

Drive mode select switch

  • Drive mode is selectable among PERSONAL, SPORT, and STANDARD by the operating the switch.
  • Output the status of drive mode to the chassis control module.
  • For detailed installation location. Refer to Component Location .

SYMBOL

TCM

  • Transmits mainly the following signals to steering force control module via CAN communication.
    • Shift position signal
  • For detailed installation location. Refer to Component Location .

SYMBOL

BCM

  • Transmits mainly the following signals to steering force control module via CAN communication.
    • Sleep/wake up signal
  • For detailed installation location. Refer to Component Location .

SYMBOL

ECM

  • Transmits mainly the following signals to steering force control module via CAN communication.
    • Engine status signal
    • Engine speed signal
  • Receives mainly the following signals from steering force control module via CAN communication.
    • Steering torque signal
  • For detailed installation location. Refer to Component Location .

SYMBOL

ABS actuator and electric unit (control unit)

  • Transmits mainly the following signals to steering force control module via CAN communication.
    • Front LH wheel speed signal
    • Front RH wheel speed signal
    • Vehicle speed signal
    • Side G signal
    • Yaw rate signal
  • For detailed installation location. Refer to Component Location .

SYMBOL

Chassis control module

  • Transmits mainly the following signals to steering force control module via CAN communication.
    • Drive mode signal
    • Steering angle sensor signal
  • Transmits mainly the following signals to steering angle main control module via Chassis communication.
    • Active lane control signal
    • Steering angle sensor signal *
    • Steering angle sensor malfunction signal *
  • For detailed installation location. Refer to Component Location .

SYMBOL

Combination meter

(Power steering warning lamp)

  • Transmits mainly the following signals to steering force control module via CAN communication.
    • Odometer signal
  • Receives mainly the following signals from steering force control module via CAN communication.
    • Power steering warning lamp signal
  • For detailed installation location. Refer to Component Location .

SYMBOL

Steering angle sensor

  • Transmits mainly the following signals to steering force control module via CAN communication.
    • Steering angle sensor signal
    • Steering angle sensor malfunction signal
  • For detailed installation location. Refer to Component Location .

SYMBOL

Steering force control module

Refer to Component Description .

SYMBOL

Steering angle sub actuator

Steering angle sub motor

Refer to Component Description .

Sub motor angle sensor

Sub reduction gear

SYMBOL

Steering angle main actuator

Steering angle main motor

Refer to Component Description .

Main motor angle sensor

Main reduction gear

Steering torque sensor

SYMBOL

Steering angle sub control module

Refer to Component Description .

SYMBOL

Steering angle main control module

Refer to Component Description .

SYMBOL

Steering clutch

Refer to Component Description .

SYMBOL

Steering force actuator

Refer to Component Description .

*: Chassis control module transmits the signal (received from steering angle sensor) via Chassis communication
