Component Location

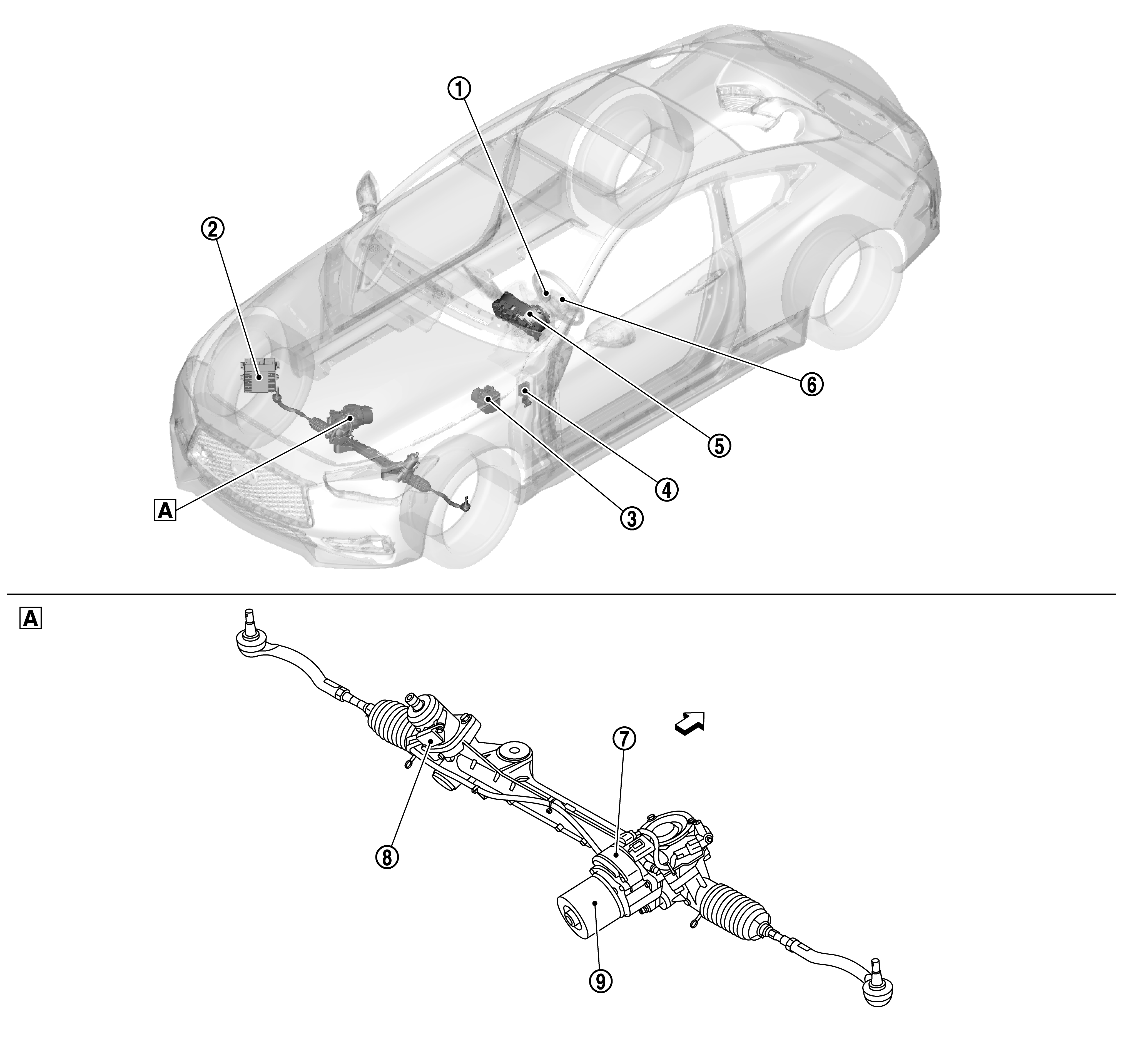

GNSJSGIA2193Z-193Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Steering gear assembly

SYMBOL : Vehicle front

SYMBOL

Drive mode select switch

SYMBOL

ECM

SYMBOL

ABS actuator and electric unit (control unit)

SYMBOL

Chassis control module

SYMBOL

Combination meter (Power steering warning lamp)

SYMBOL

Steering angle sensor

SYMBOL

Power steering control module

SYMBOL

Power steering torque sensor

SYMBOL

EPS motor
