Circuit Diagram

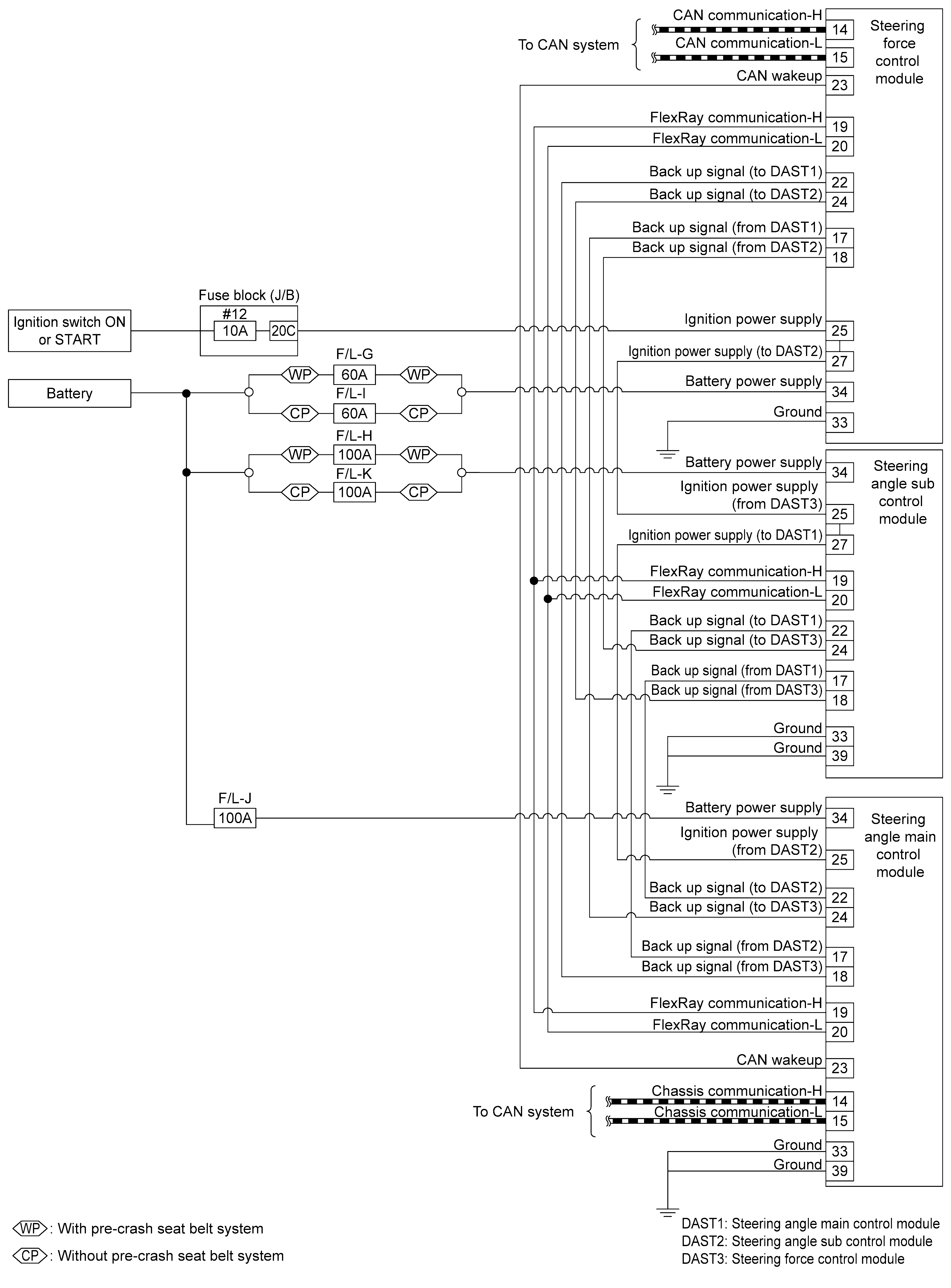

GNSILL0278940-940

Courtesy of NISSAN NORTH AMERICA, INC.

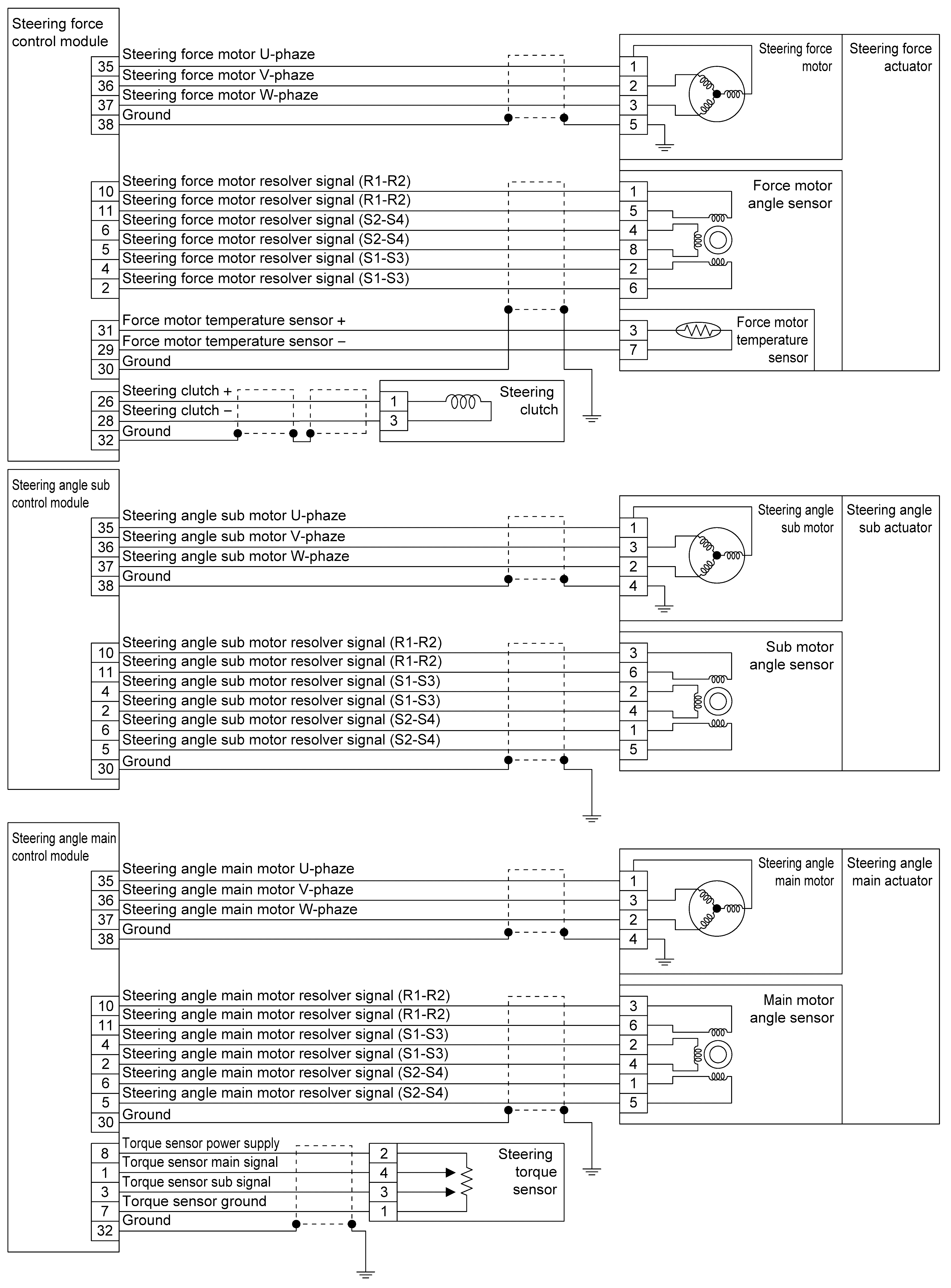

GNSILL0267138-138

Courtesy of NISSAN NORTH AMERICA, INC.

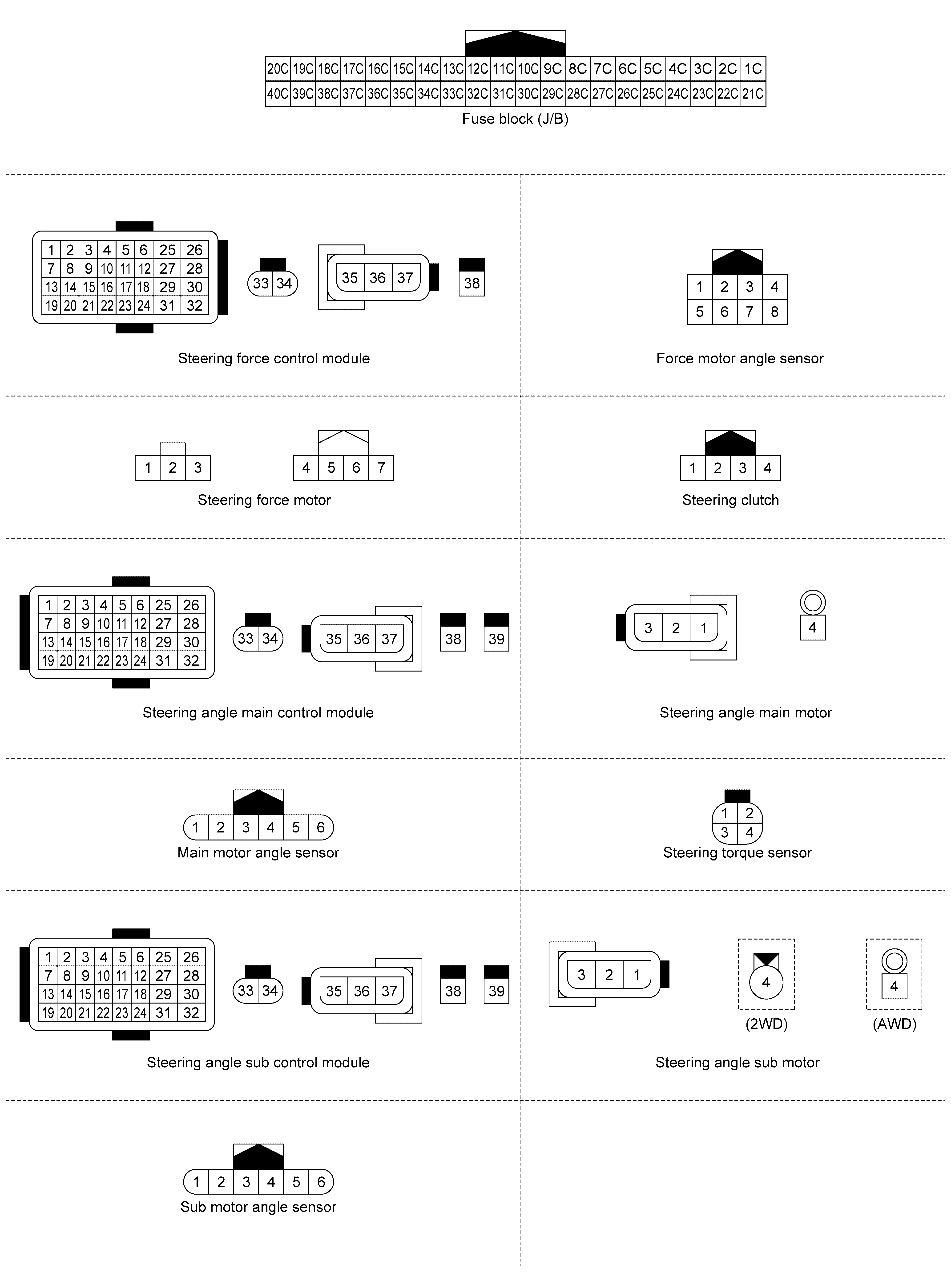

GNSILL0274847-847

Courtesy of NISSAN NORTH AMERICA, INC.
