Removal and Installation: Removal

Remove EVAP canister vent control valve. Refer to Removal and Installation .
Disconnect EVAP vent line from EVAP canister.

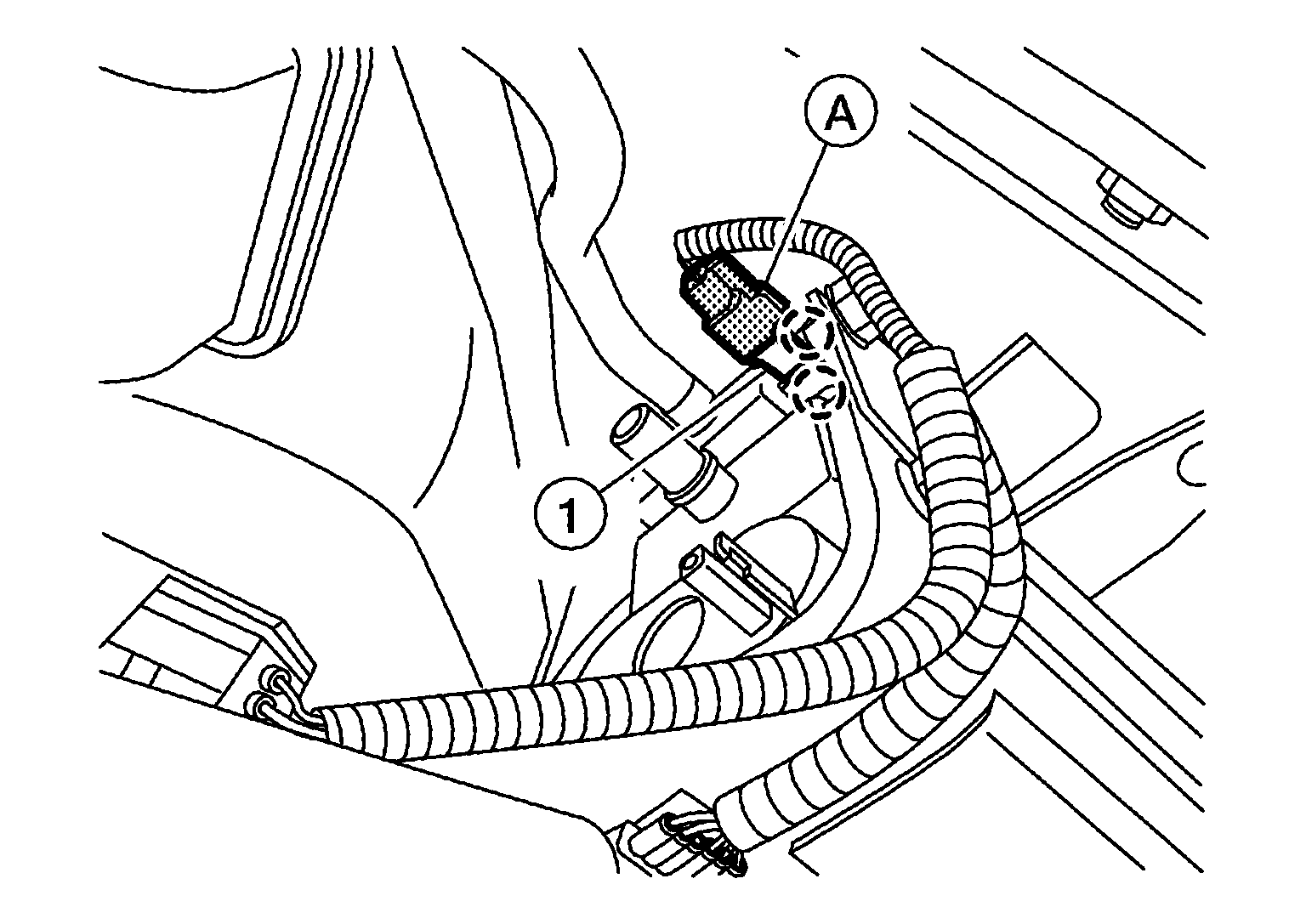

Disconnect harness connector (A) from EVAP control system pressure sensor (1), then release pawls and remove EVAP control system pressure sensor (1).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
