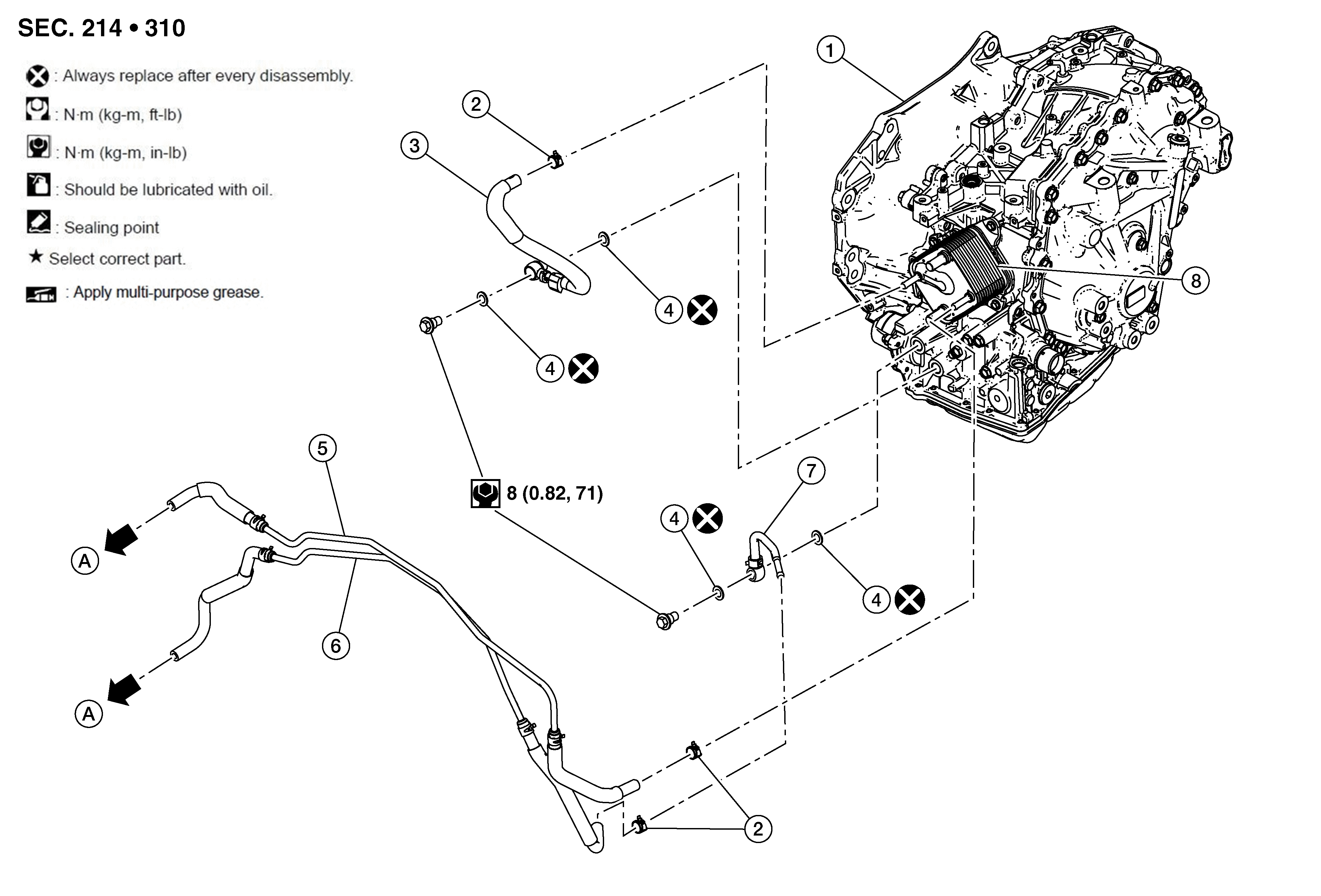

Exploded View - Without Tow Package

1.

Transaxle assembly

2.

Hose clamp

3.

CVT fluid cooler hose A

4.

Copper sealing washer

5.

CVT fluid cooler hose C

6.

CVT fluid cooler hose D

7.

CVT fluid cooler hose B

8.

CVT fluid warmer

A.

To radiator
