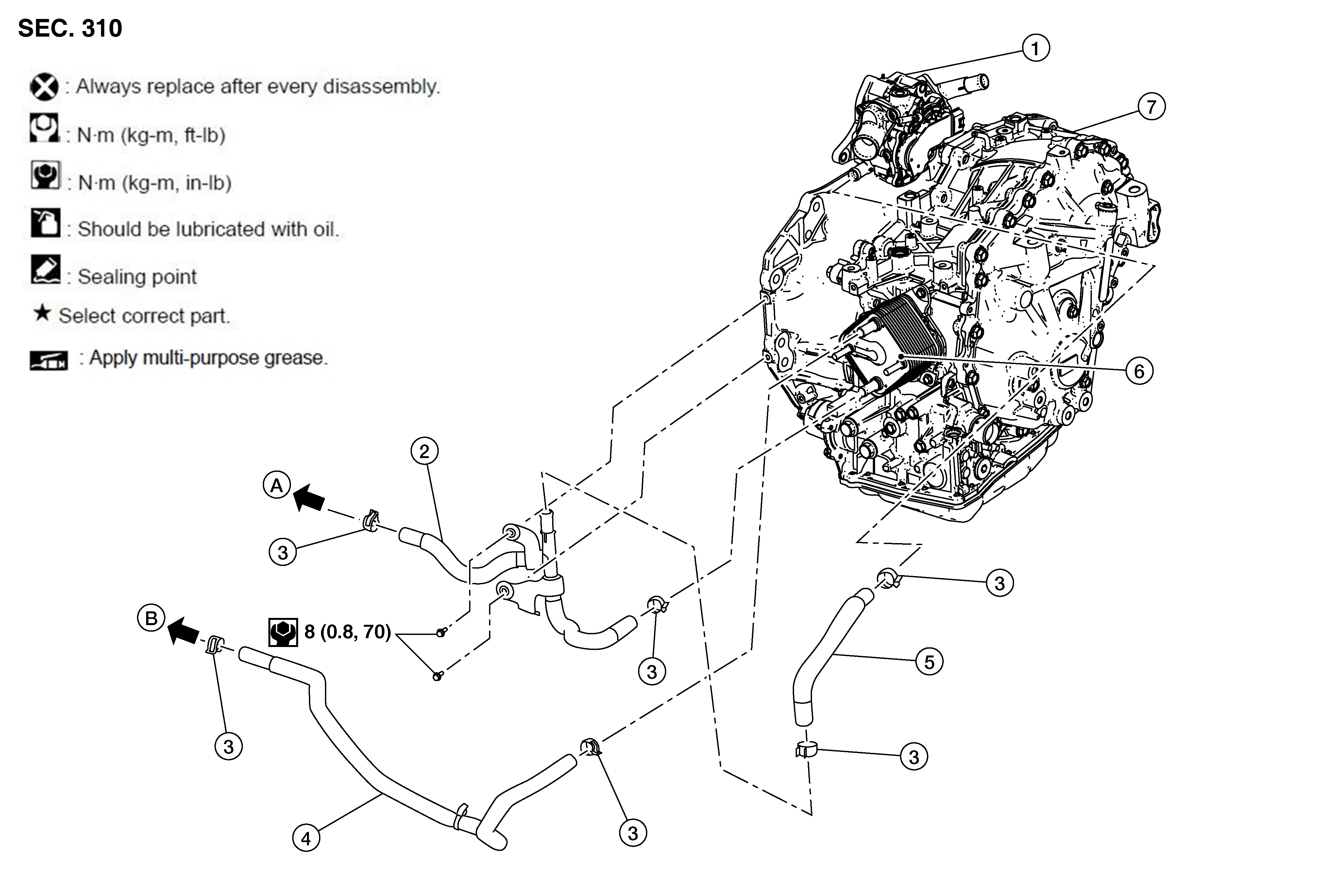

Exploded View

1.

Multi-way control valve

2.

CVT water hose A

3.

Hose clamp

4.

CVT water hose B

5.

CVT water hose C

6.

CVT oil warmer

7.

Transaxle assembly

A.

To oil cooler assembly. Refer to Exploded View .

B.

To water pump housing. Refer to Exploded View .
