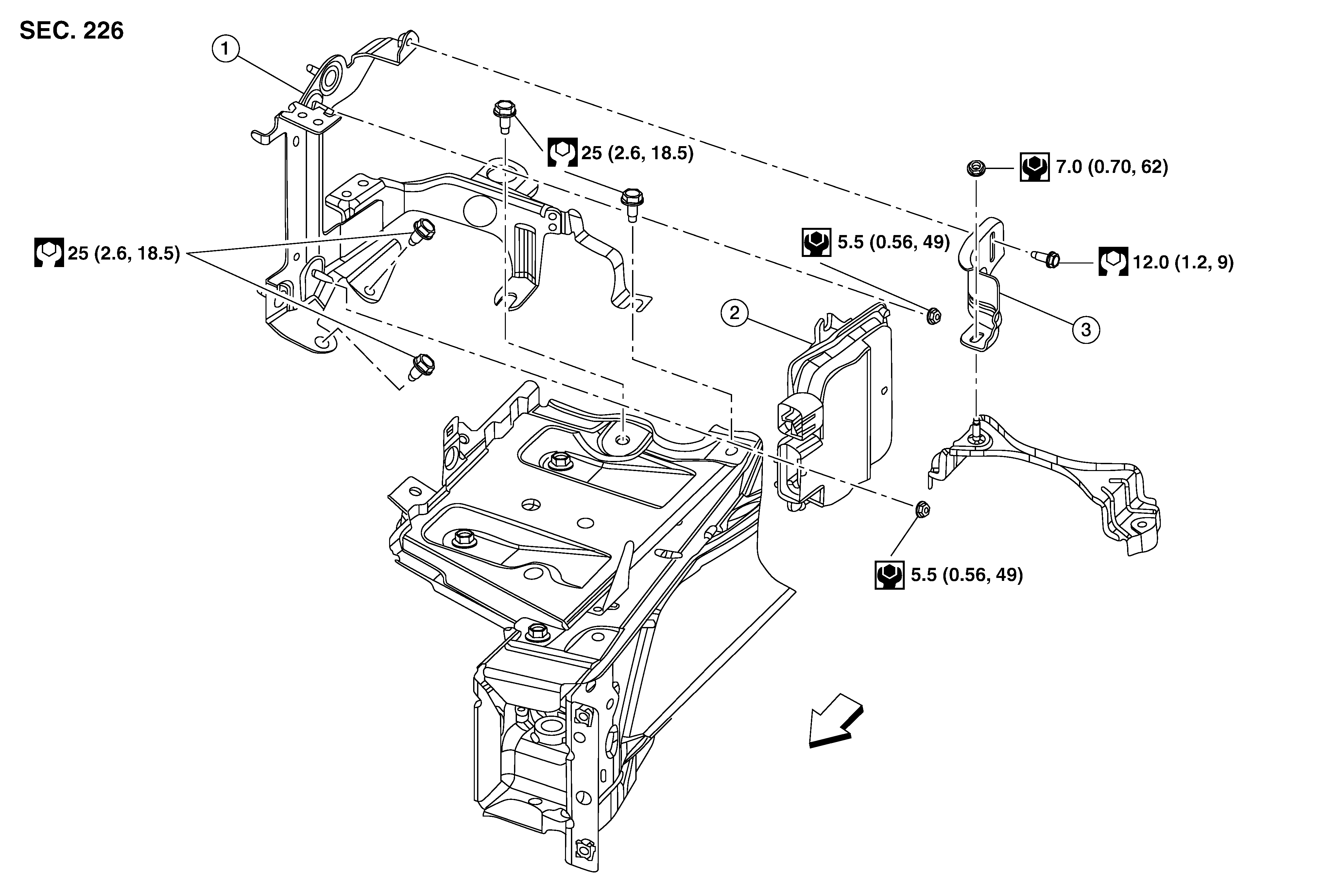

Exploded View

GNSALBIA0585Z-585Courtesy of NISSAN NORTH AMERICA, INC.

1.

Electric intake valve timing control module bracket

2.

Electric intake valve timing control module

3.

ECM cover

SYMBOL

Front
