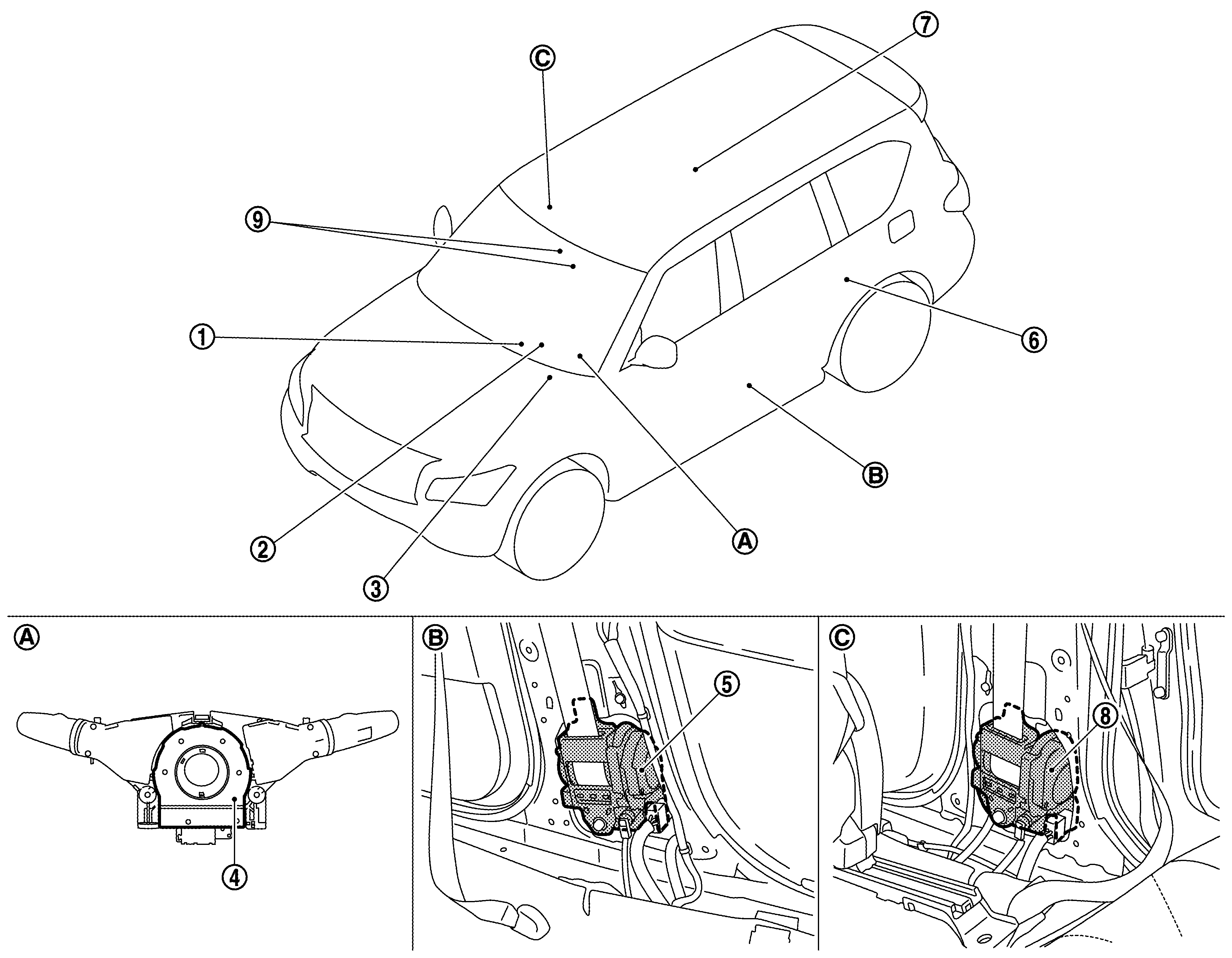

Component Location: Notes
|
1. |
BCM Refer to Component Location . |
2. |
Combination meter Refer to Component Location . |
3. |
ABS actuator and electric unit (control unit) Refer to Component Location . |
|
4. |
Steering angle sensor Pre-crash |
5. |
Pre-crash seat belt control unit (driver side) |
6. |
ADAS control unit Refer to Component Location . |
|
7. |
Air bag diagnosis sensor unit Refer to Component Location . |
8. |
Seat belt control unit (passenger side) |
9. |
Seat belt buckle switch |
|
A. |
Combination switch |
B. |
View with center pillar lower garnish removed (driver side) |
C. |
View with center pillar lower garnish removed (passenger side) |
