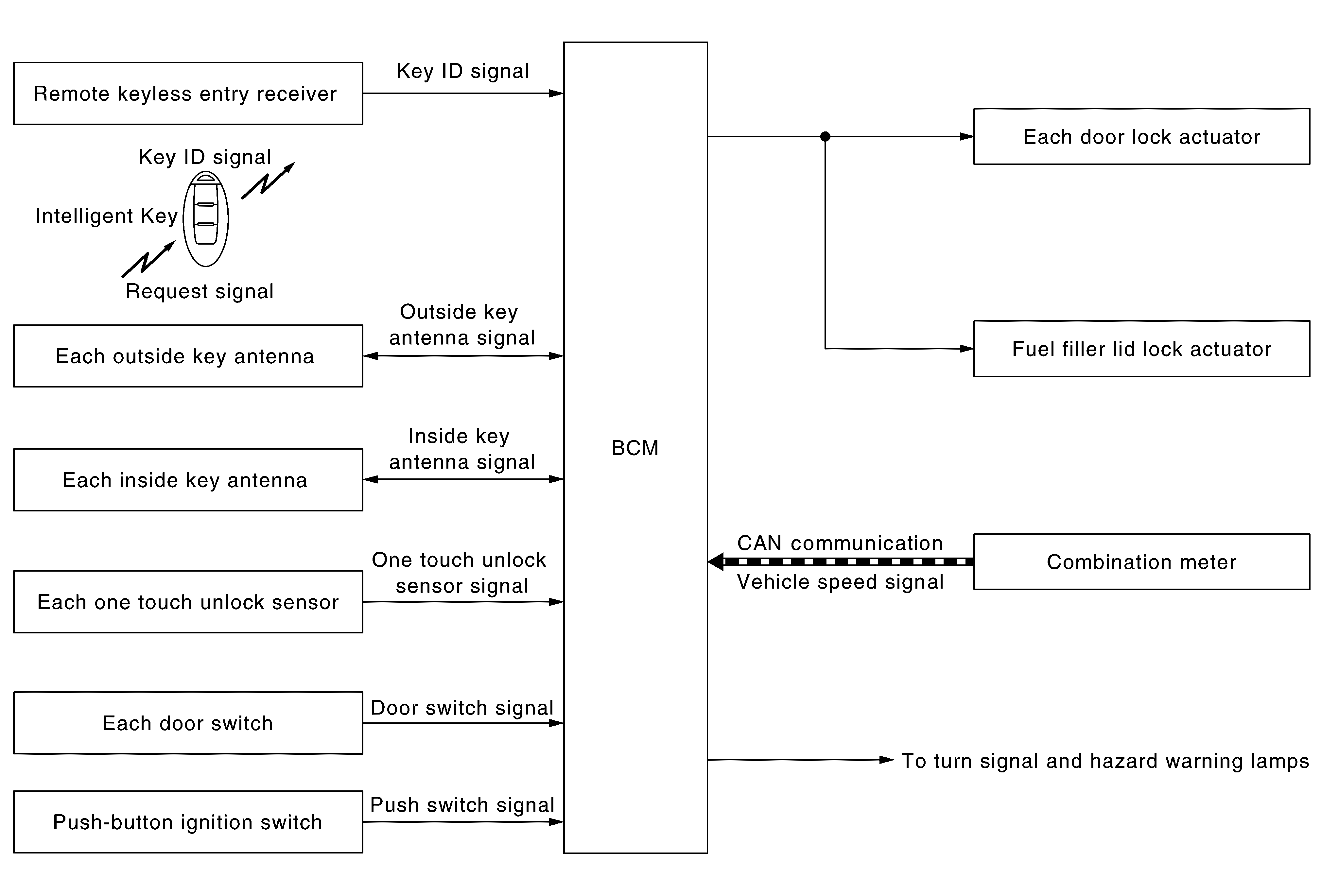

System Diagram (One Touch Unlock Function)

G09163394Courtesy of NISSAN NORTH AMERICA, INC.

One touch unlock function controls operation function of the following items.
