Operation Description

Quickly push (less than 1.5 seconds) and release the MAIN switch ON.

The MAIN switch indicator, set distance indicator, own vehicle indicator, and set vehicle speed indicator come on and ICC system is set to a standby state.

ADAS control unit performs the control as per the following:

Constant speed

Comparing the set vehicle speed with the current vehicle speed, transmit the command to ECM via CAN communication to reach the set vehicle speed, and controls the electric throttle control actuator.

Deceleration

When a vehicle ahead (slower than driver set vehicle speed) appears or when a vehicle ahead slows down, the system controls the electric throttle control actuator into the close direction and decelerates the vehicle. If greater deceleration is necessary, the system transmits the brake fluid pressure control signal to the ABS actuator and electric unit (control unit) via chassis control module and operates the brake.

Following

The system controls electric throttle control actuator and the brake fluid pressure to keep the proper distance between the vehicles according to the vehicle speed change of the vehicle ahead.

Acceleration

When a vehicle ahead is not detected because of it changes lanes or own vehicle changes lanes during the following driving, the system controls the electric throttle control actuator in the open direction and accelerates the vehicle to the set vehicle speed slowly.

Set Condition

Under a standby state, pushing down the SET/COAST switch will start system control.

If the system is canceled by conditions 1-10 below, the system will resume control at the last set cruising speed by pushing up the RESUME/ACCELERATE switch.

NOTE:

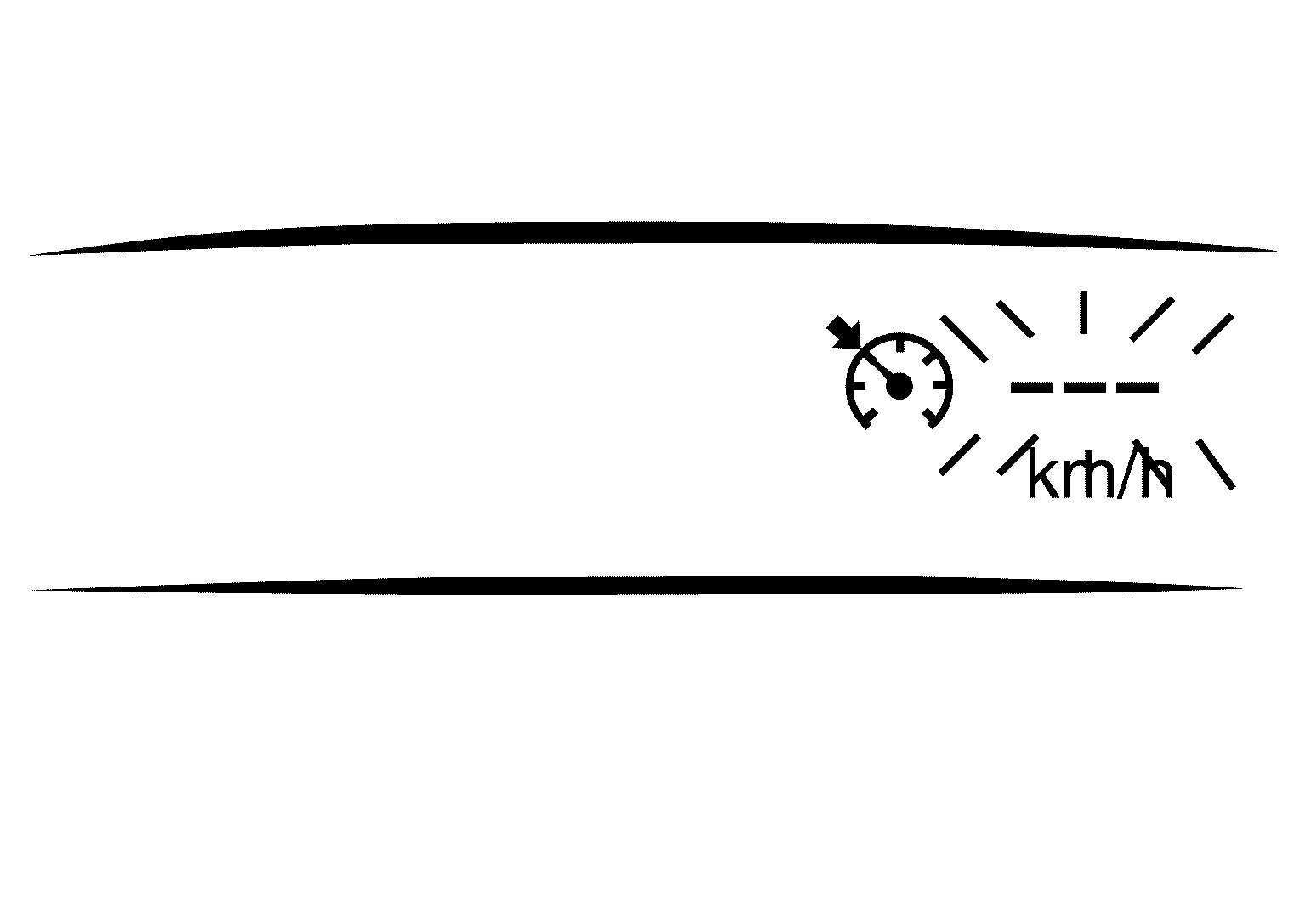

  • When the SET/COAST switch is pushed under the following conditions, the system cannot be set and the set vehicle speed indicator will blink for approximately 2 seconds.
    GNSJSOIA0834Z-834Courtesy of NISSAN NORTH AMERICA, INC.
    • When traveling below 32 km/h (20 MPH) and the vehicle ahead is not detected.
    • When the selector lever is not in the "D" position or manual mode.
    • When the parking brakes are applied.
    • When the brakes are operated by the driver.
  • When the SET/COAST switch is pushed under the following conditions, the system cannot be set.
    • When the drive mode select switch is in SNOW position. (To use the ICC system, turn OFF the snow mode, push the MAIN switch to turn OFF the ICC system and reset the ICC system by pushing the MAIN switch again.)
    • When the VDC is OFF. (To use the ICC system, turn ON the VDC system, push the MAIN switch to turn OFF the ICC system and reset the ICC system by pushing the MAIN switch again.)
    • When ABS or VDC (including the TCS) operates.
    • When the wheel is slipping. (To use the ICC system, make sure the wheels are no longer spinning, push the MAIN switch to turn OFF the ICC system and reset the ICC system by pushing the MAIN switch again.)

Cancel Conditions

  1. When CANCEL switch is pressed.
  2. When brake pedal is depressed.
  3. When the vehicle ahead is not detected below the speed of 24 km/h (15 MPH).
  4. When the selector lever is not in the "D" position or manual mode.
  5. When the parking brakes are applied.
  6. When the system judges the vehicle is at standstill.
  7. When the drive mode select switch is in SNOW position.
  8. When ABS or VDC (including the TCS) operates.
  9. When a wheel slips.
  10. When the VDC is turned OFF.
  11. When the MAIN switch is turned OFF.
  12. When the system malfunction occurs.
