System Description: Design/Purpose
- The warning message is displayed on the vehicle information display when chassis control detected the system malfunction.
- When the aiming of lane camera unit is incomplete, a warning message is displayed.
- Each chassis control system information is displayed on the vehicle information display.
Warning Message
|
Design |
Warning Message |
|
-- |
Chassis Control System Error See Owner's Manual |

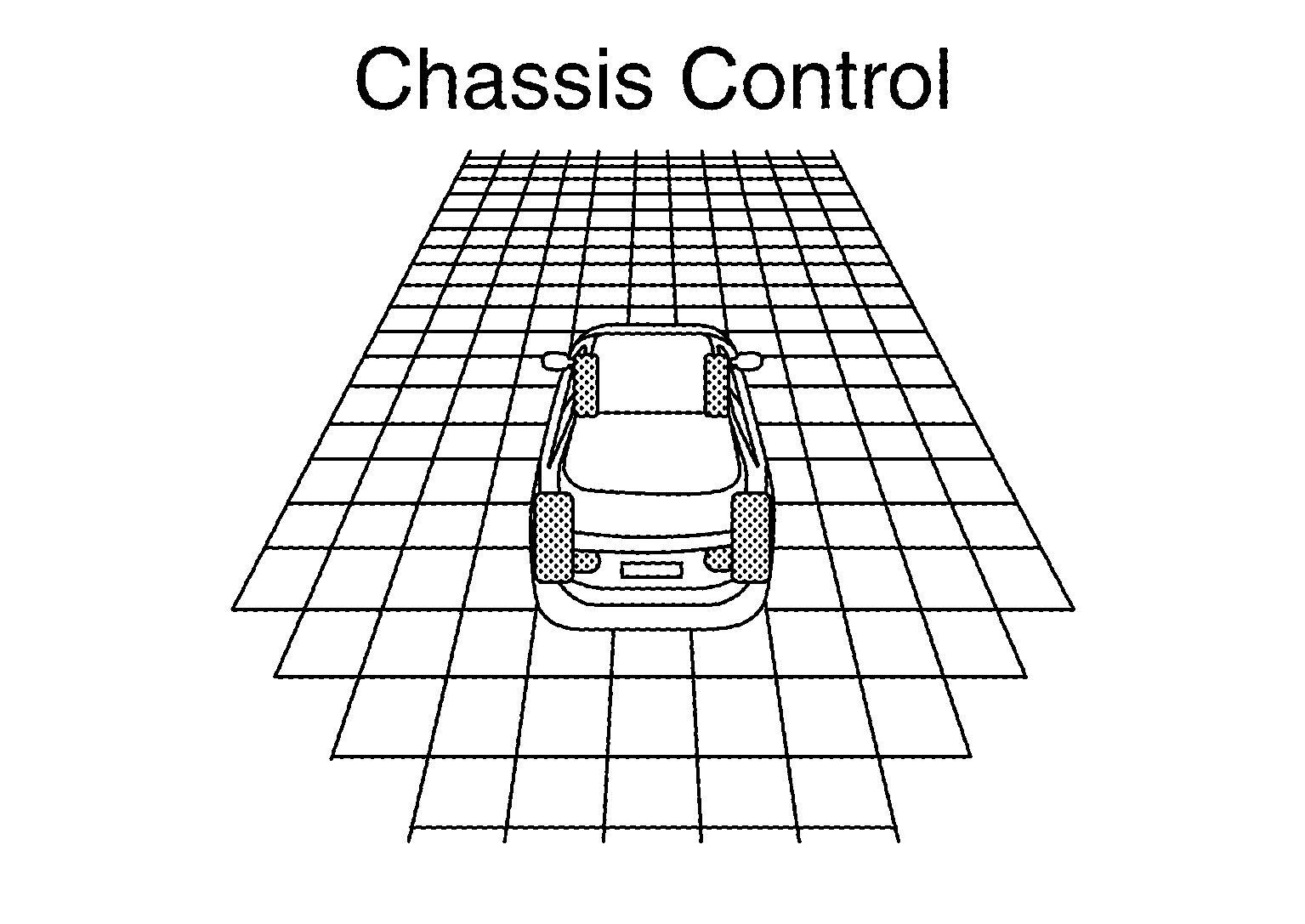

System Information
Active trace control
|
Design |
Description |
|

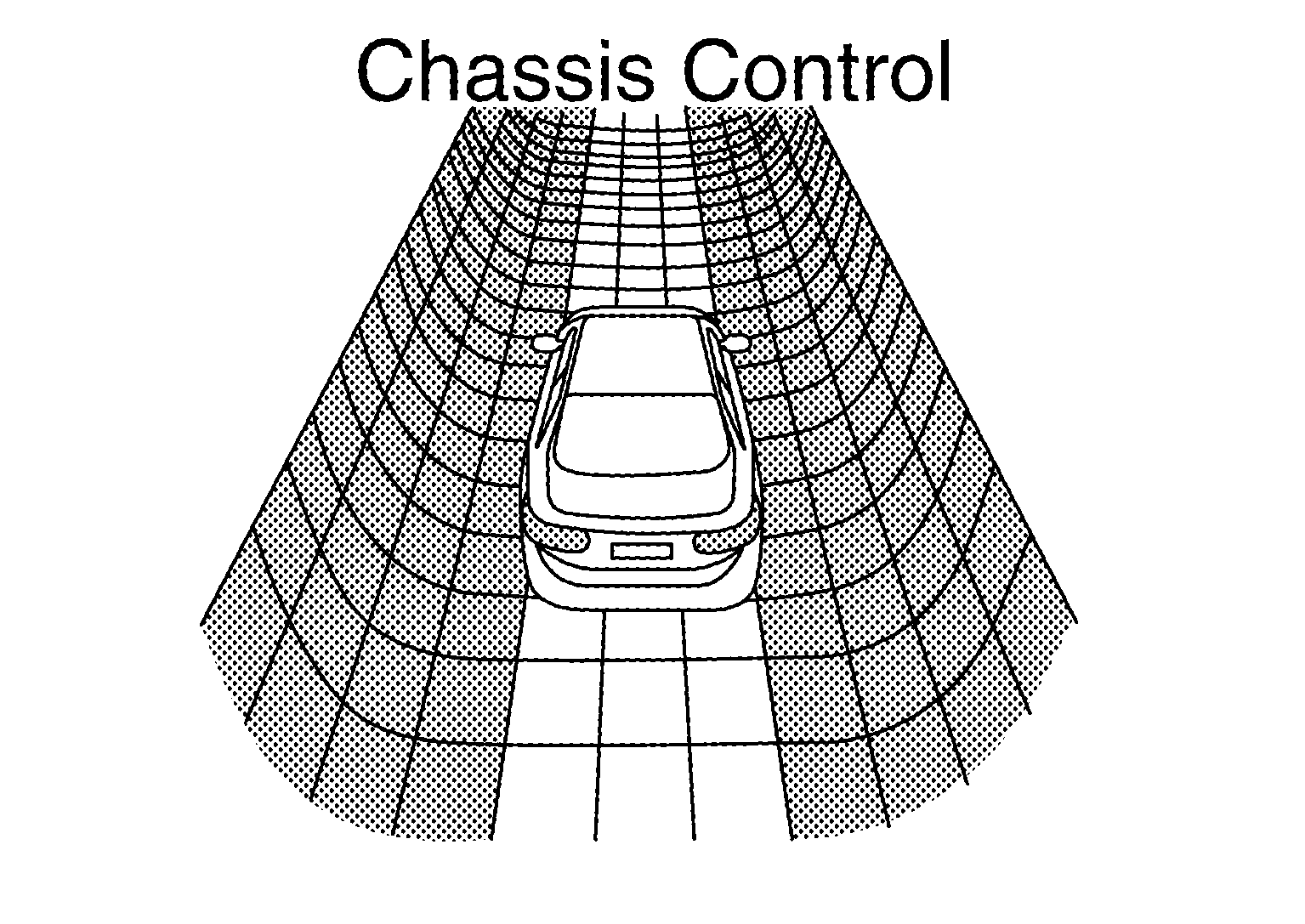

Active trace control inactive |
|
|

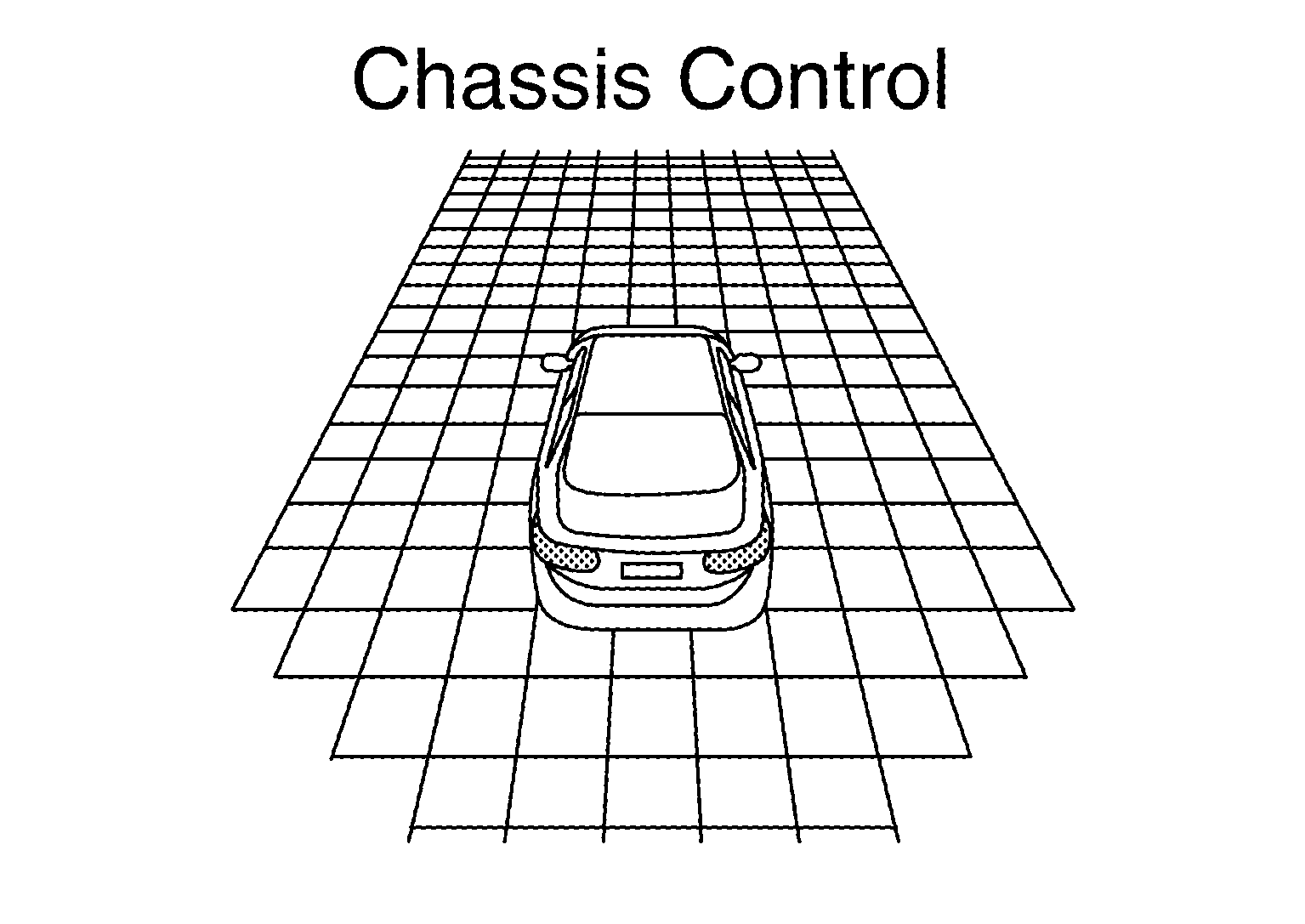

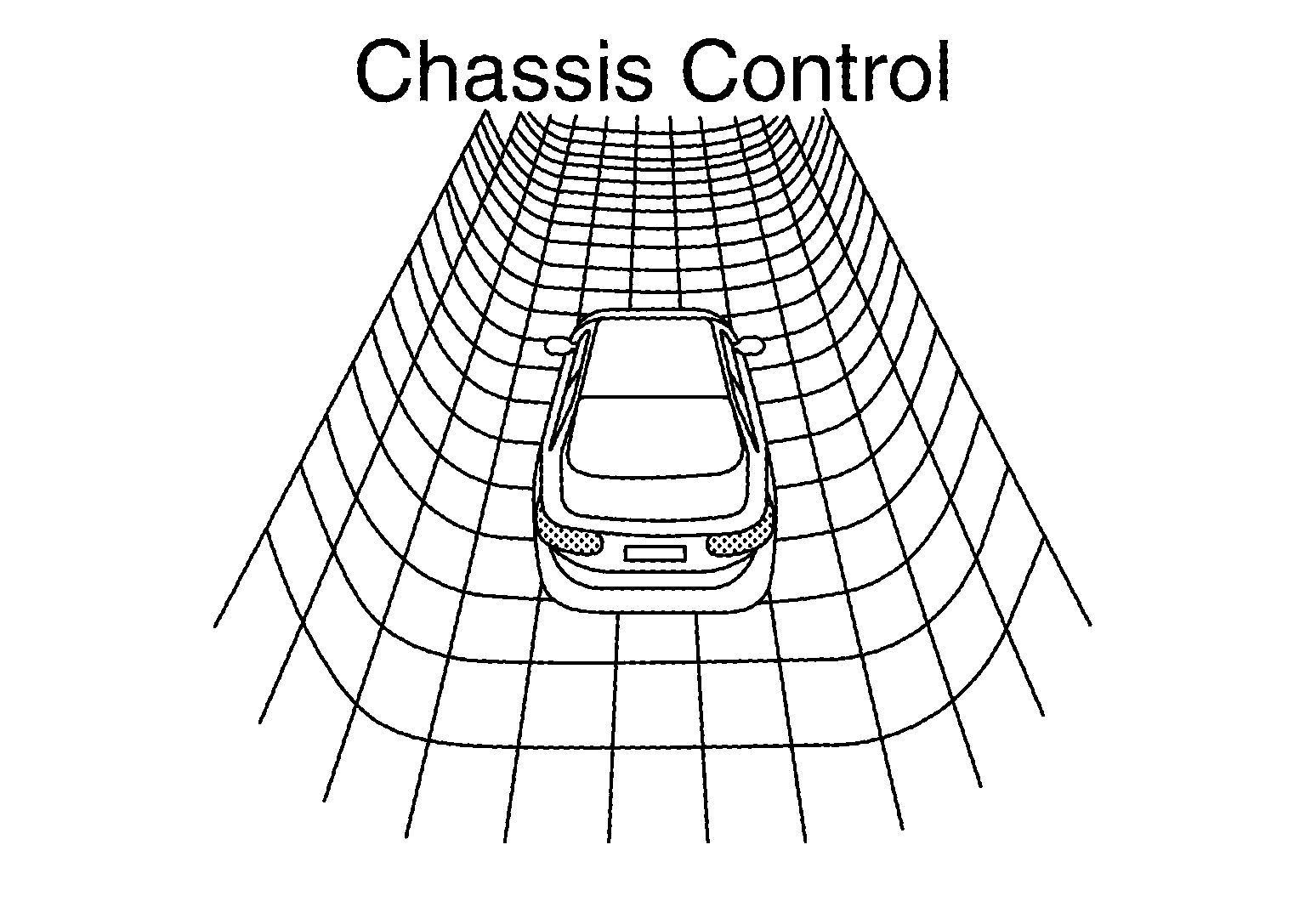

Active trace control is active. (Steering angle is less than the specified angle.) |
|
|

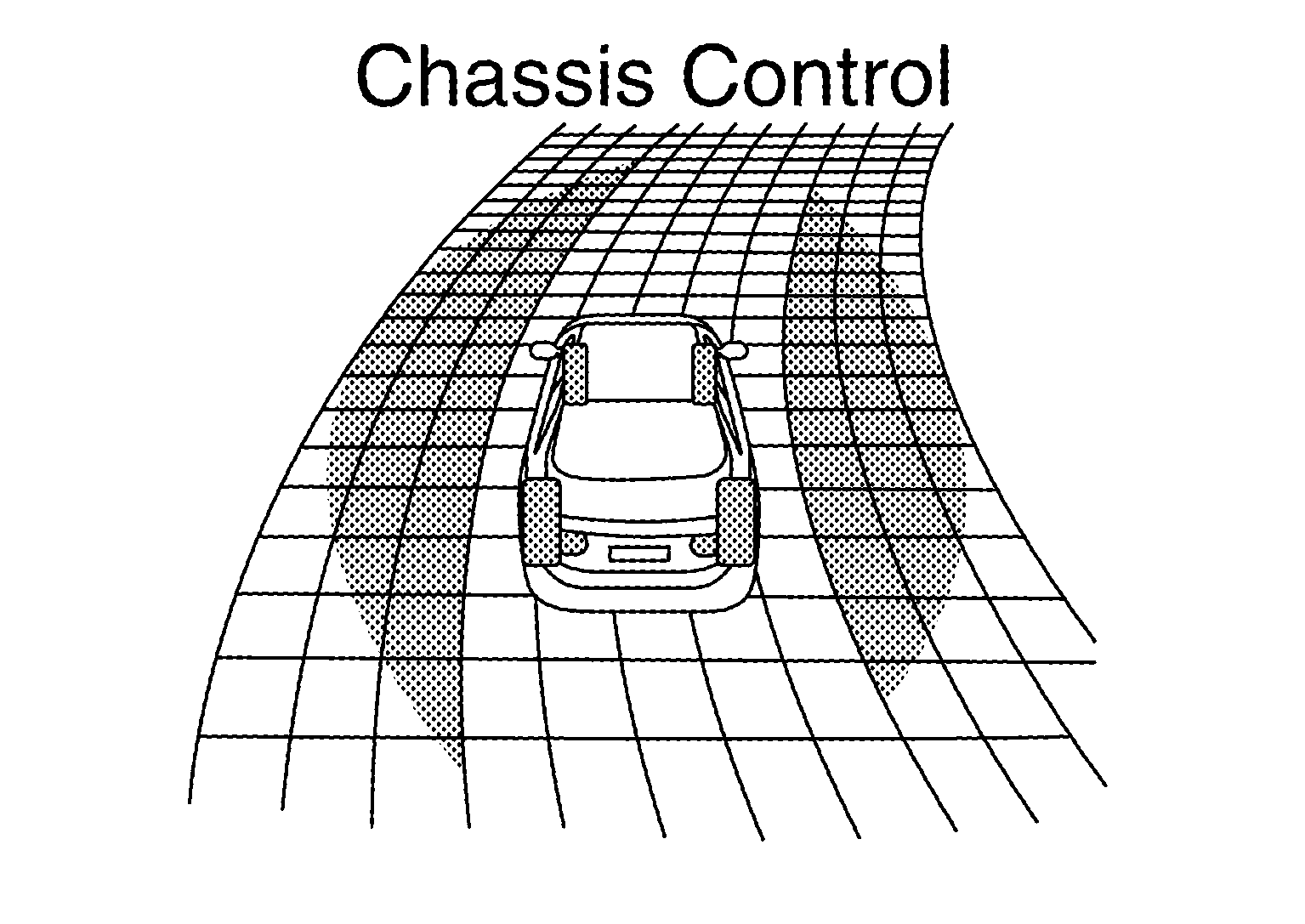

Active trace control is active. (Steering angle is the specified angle or more in the leftward direction.) |
|
|

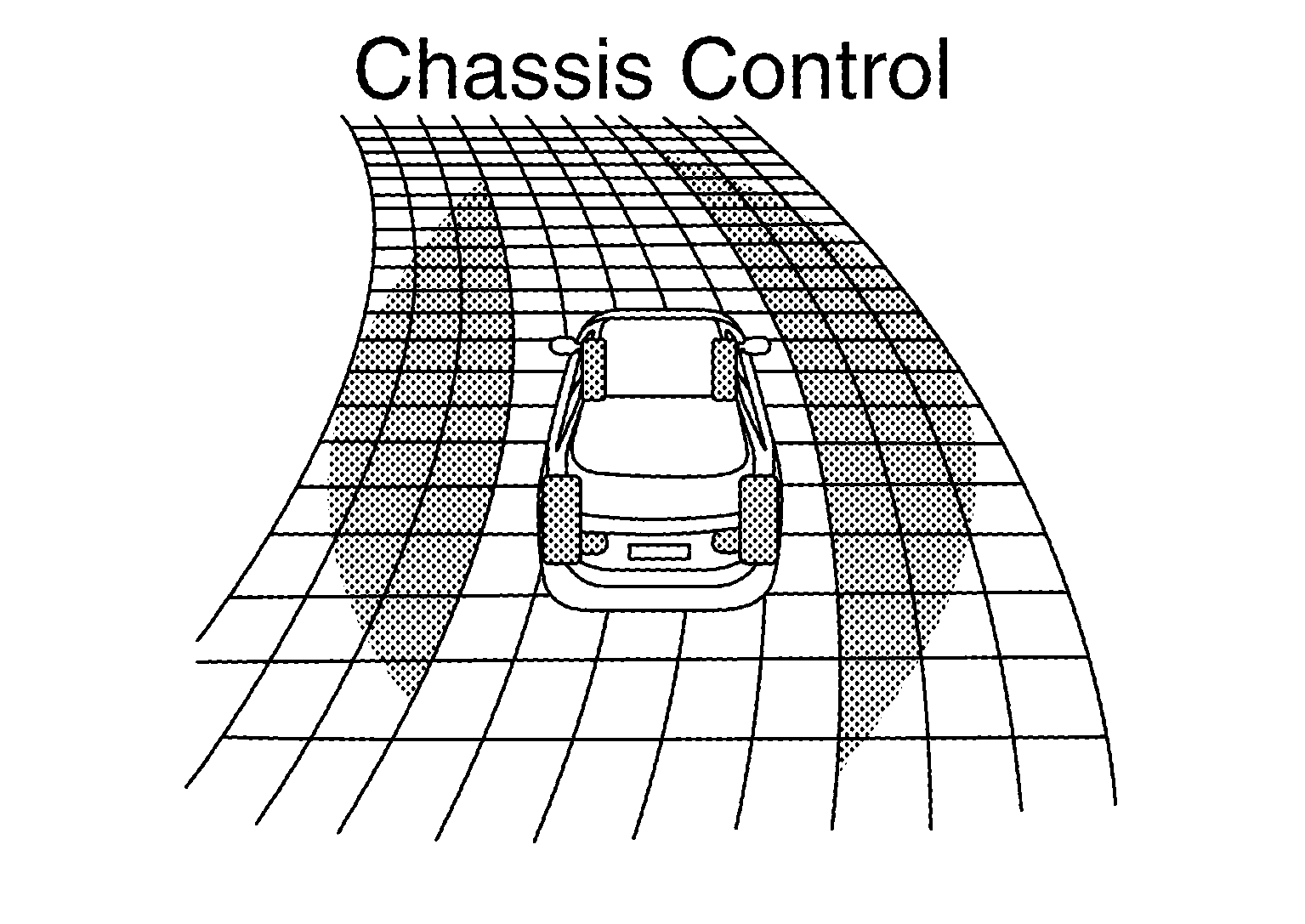

Active trace control is active. (Steering angle is the specified angle or more in the rightward direction.) |
Active lane control
|
Design |
Description |
|
Active Lane Control is turned ON. |
|
|
Active Lane Control is operational or is operating. |
