VR30DDTT engine

1. Turn ignition switch OFF.
2. Remove turbocharger boost sensor with its harness connector.

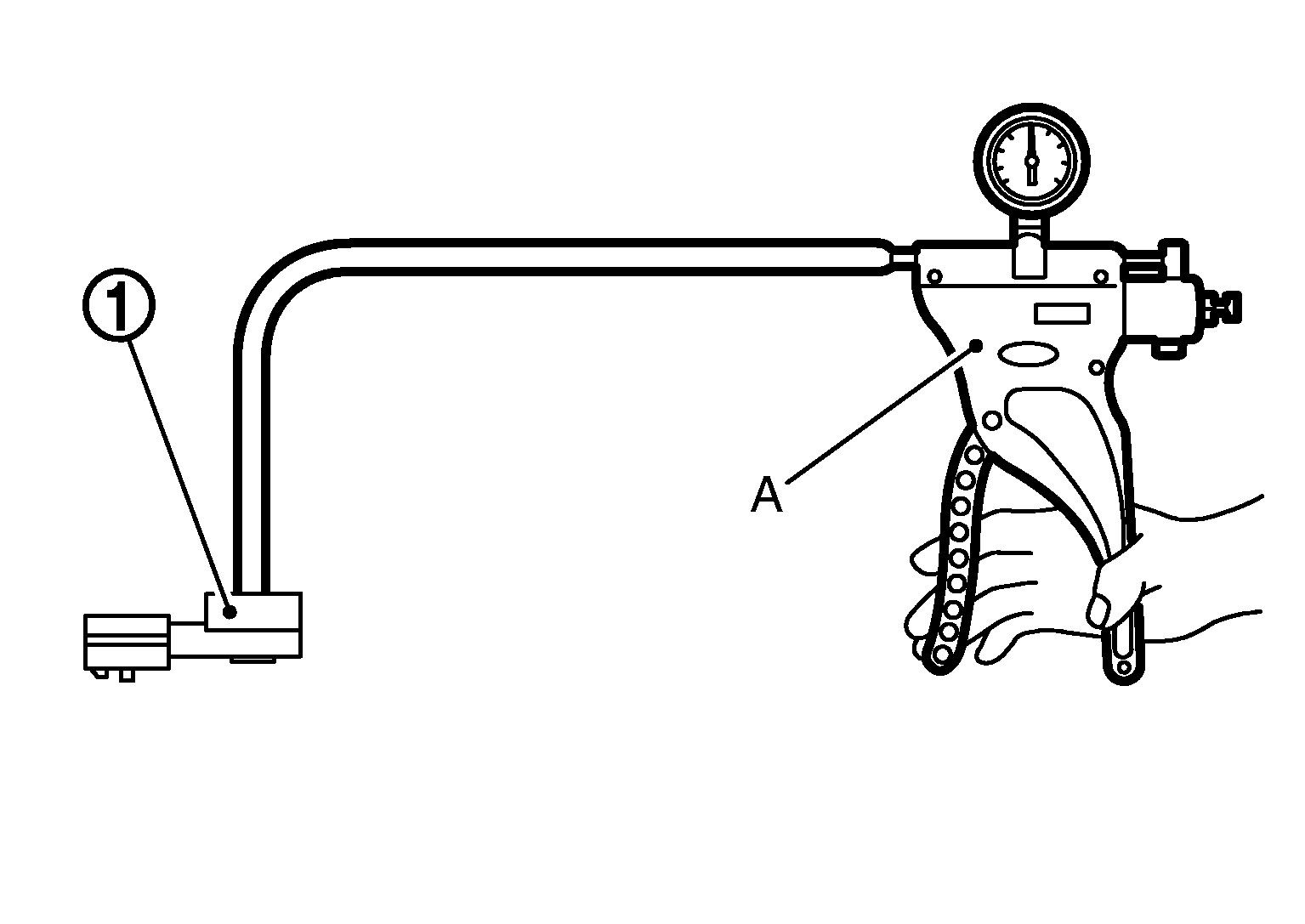

3. Install pressure pump (A) to turbocharger boost sensor .

   Courtesy of NISSAN NORTH AMERICA, INC.

   CAUTION: When insert a pressure pump hose to the sensor, be careful to the damage of the sensor housing.
4. Turn ignition switch ON.
5. Check the voltage between ECM harness connector terminals as per the following conditions.
   NOTE:

   • Always calibrate the pressure pump gauge when using it.
   • Inspection should be done at room temperature [10 - 30 deg. C (50 - 86 deg. F)].

   ECM				Condition [Pressure (Relative to atmospheric pressure)]	Voltage (Approx.)
   Bank	Connector	+	-
   		Terminal
   1	F142	116	99	0 kPa (0 mbar, 0 mmHg, 0 inHg)	2.03 V
   2		119	125
   1		116	99	40 kPa (400 mbar, 300 mmHg, 11.81 inHg)	2.67 V
   2		119	125

Is the inspection result normal?

YES

INSPECTION END

NO

Replace malfunctioning turbocharger boost sensor. Refer to CHARGE AIR COOLER : Exploded View .
