Electric Intake Valve Timing Control Module Connector End View (E154)

Connector Types:  SJZ02FB-SNZ2

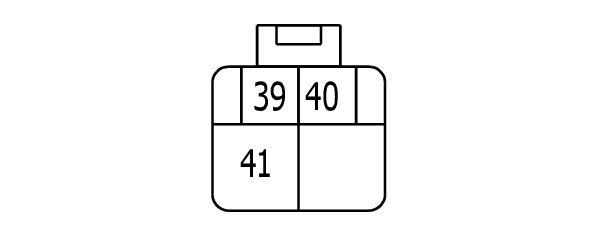

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

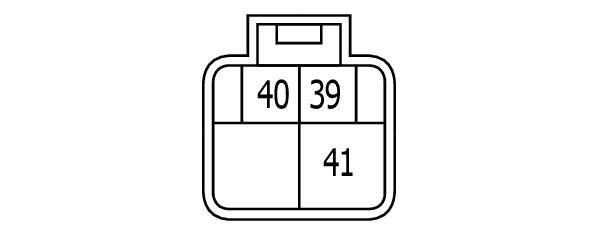

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
39	R	POWER SUPPLY
40	L	POWER SUPPLY
41	B	GROUND
