IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E123)

Connector Types:  NS10FW-CS

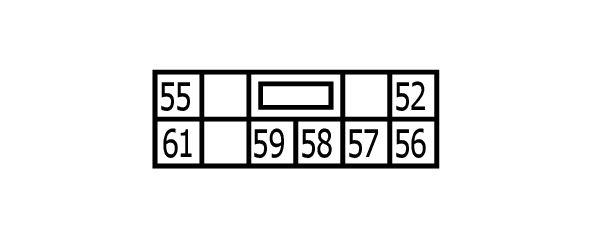

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

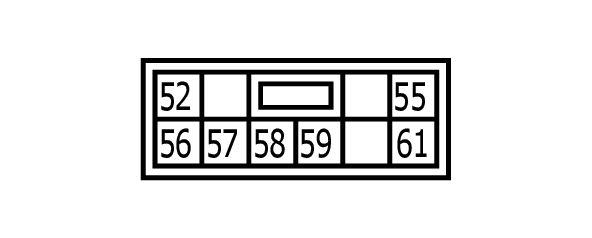

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
52	Y	-
55	W	-
56	L	-
57	LG	-
58	P	-
59	R	-
61	GR	-
