Steering Force Control Module Connector End View (M151)

Connector Types:  Y03FB-R

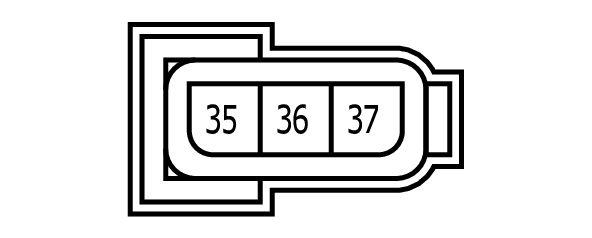

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

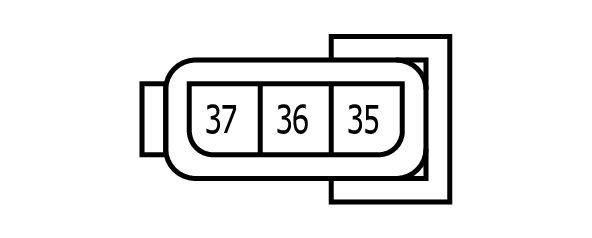

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
35	B/R	STEERING FORCE MOTOR U-PHAZE
36	B/L	STEERING FORCE MOTOR V-PHAZE
37	B/G	STEERING FORCE MOTOR W-PHAZE
