Steering Force Control Module Connector End View (M152)

Connector Types:  P01FB-A

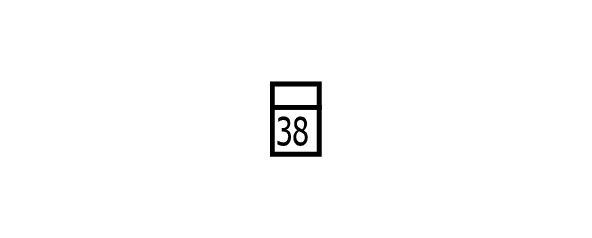

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

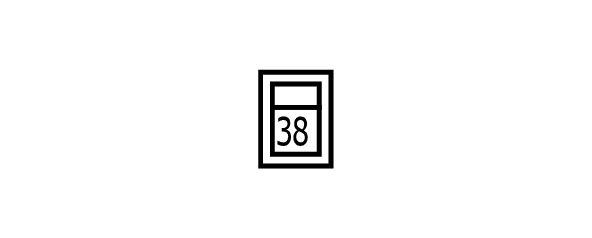

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
38	B	GROUND
