Steering Force Control Module Connector End View (M72)

Connector Types:  Y02FB-1V

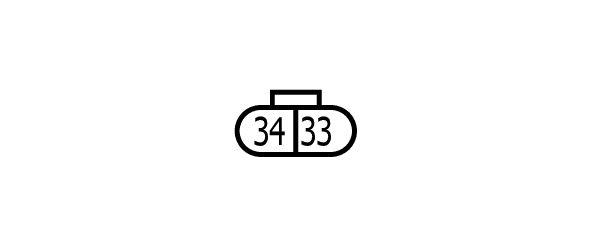

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

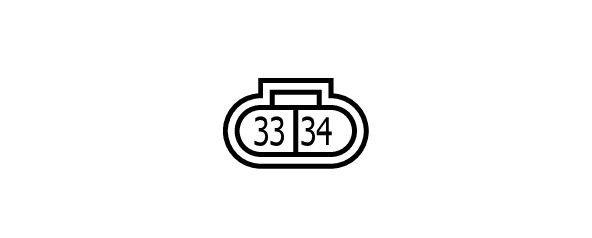

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
33	B	GROUND
34	R	BATTERY POWER SUPPLY
