Direct Adaptive Steering System

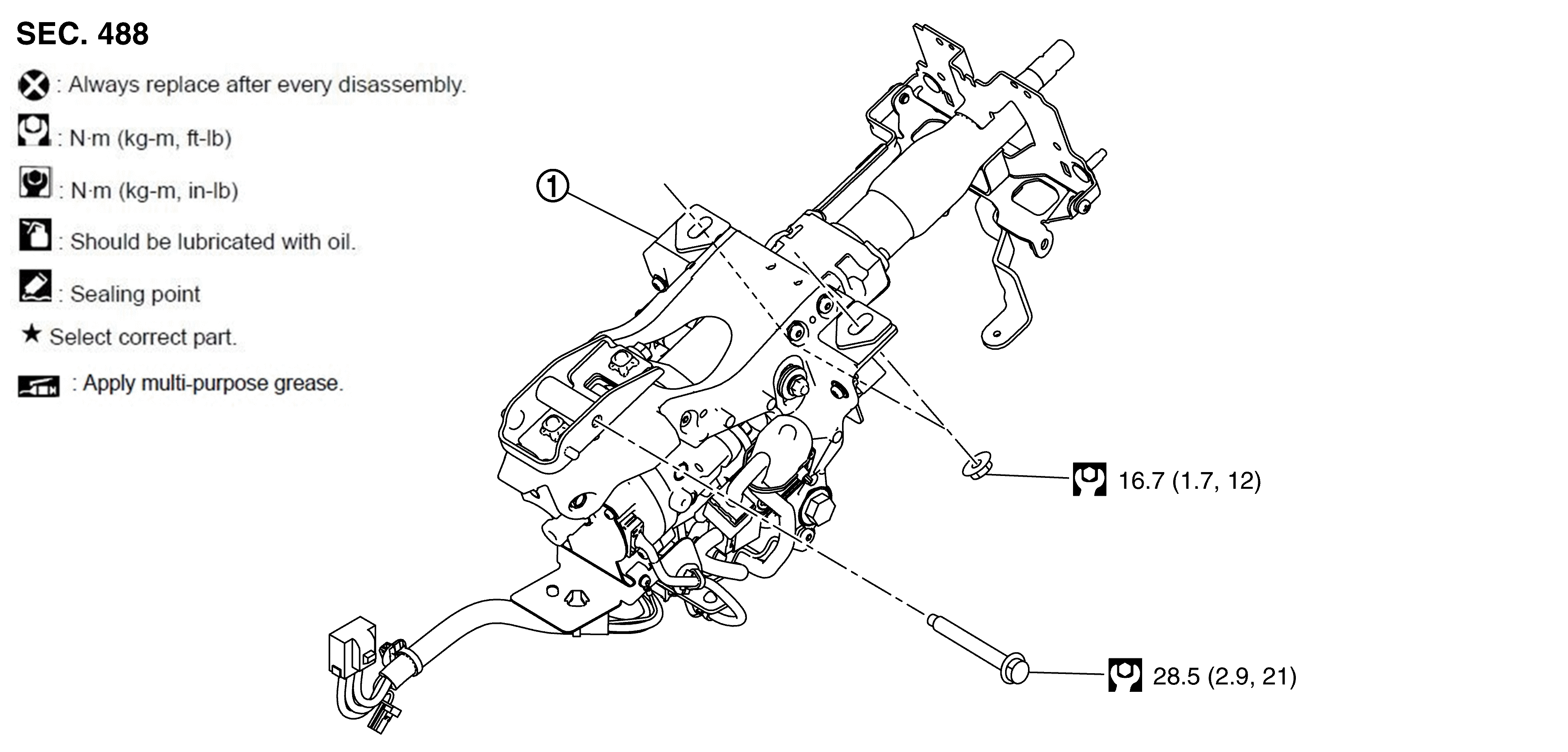

Fig 1: Steering Column Components With Torque Specifications - Direct Adaptive Steering System
GNSJSGIA1269GB-269Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Steering column assembly

SYMBOL : N.m (kg-m, ft-lb)
CAUTION: Never disassemble other than the parts shown in Exploded View.
