Electric Power Steering System

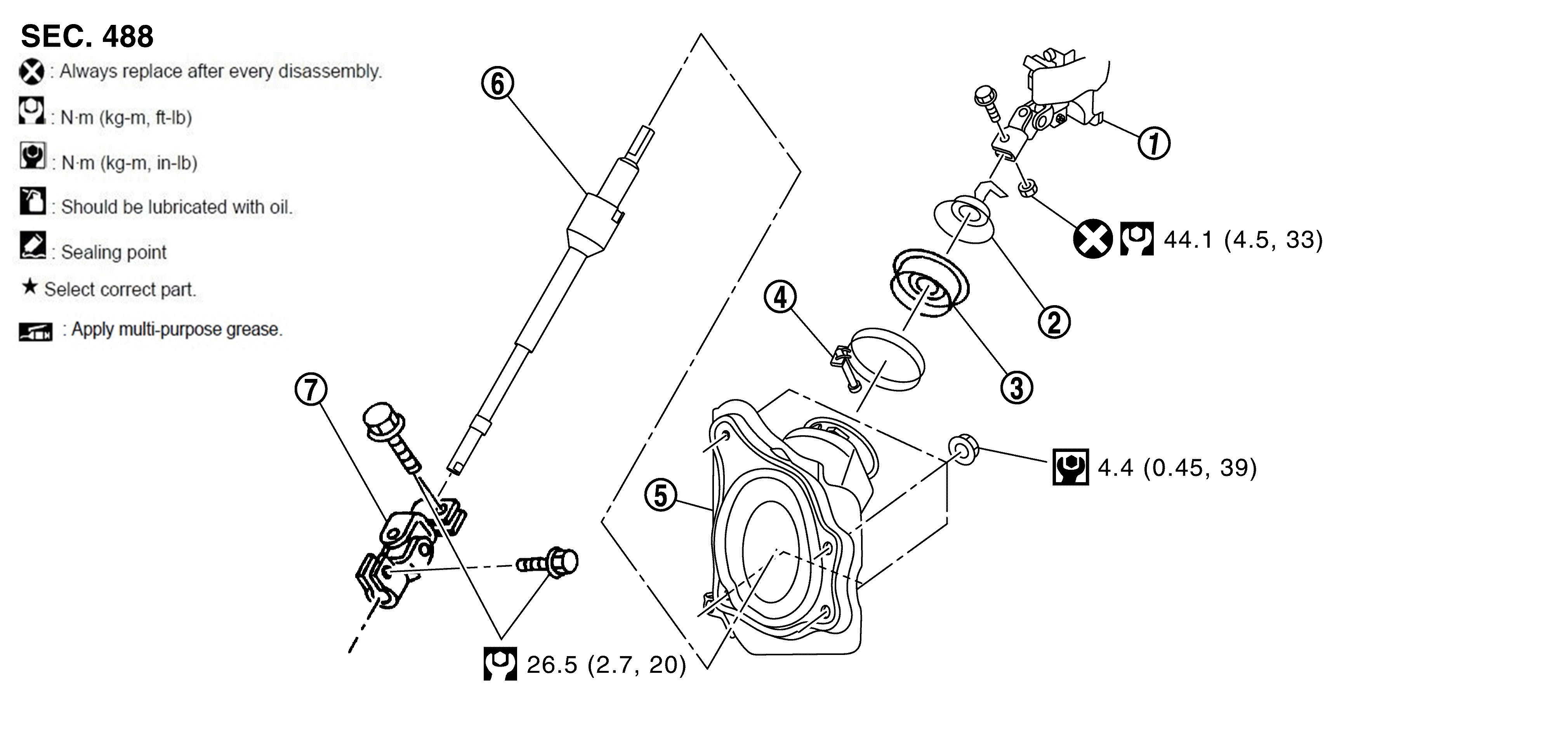

Fig 1: Steering Shaft Components With Torque Specifications - Electric Power Steering System
GNSJSGIA1262GB-262Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Steering column assembly

SYMBOL

Collar

SYMBOL

Hole cover seal

SYMBOL

Clamp

SYMBOL

Hole cover

SYMBOL

Steering shaft

SYMBOL

Lower joint

SYMBOL : Always replace after every disassembly.

SYMBOL : N.m (kg-m, ft-lb)

SYMBOL : N.m (kg-m, in-lb)
