Tooth Contact

Before inspection and adjustment, drain gear oil.

1. Remove carrier cover. Refer to FRONT FINAL DRIVE DIFFERENTIAL ASSEMBLY : Disassembly & Assembly .

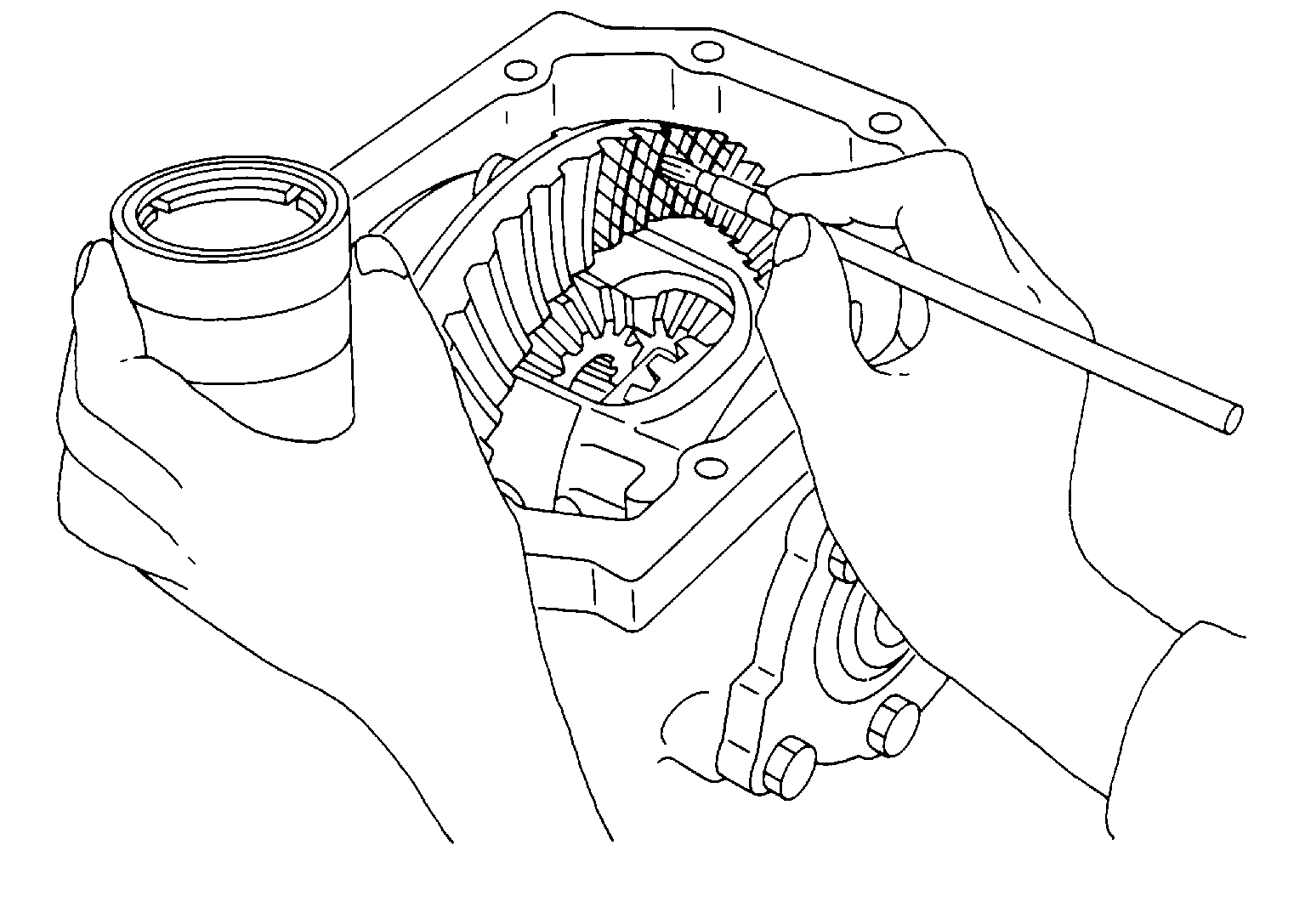

2. Apply red lead to drive gear.

   Courtesy of NISSAN NORTH AMERICA, INC.

   CAUTION: Apply red lead to both the faces of 3 to 4 gears at 4 locations evenly spaced on drive gear.
3. Rotate drive gear back and forth several times, check drive pinion gear to drive gear tooth contact.

   Courtesy of NISSAN NORTH AMERICA, INC.

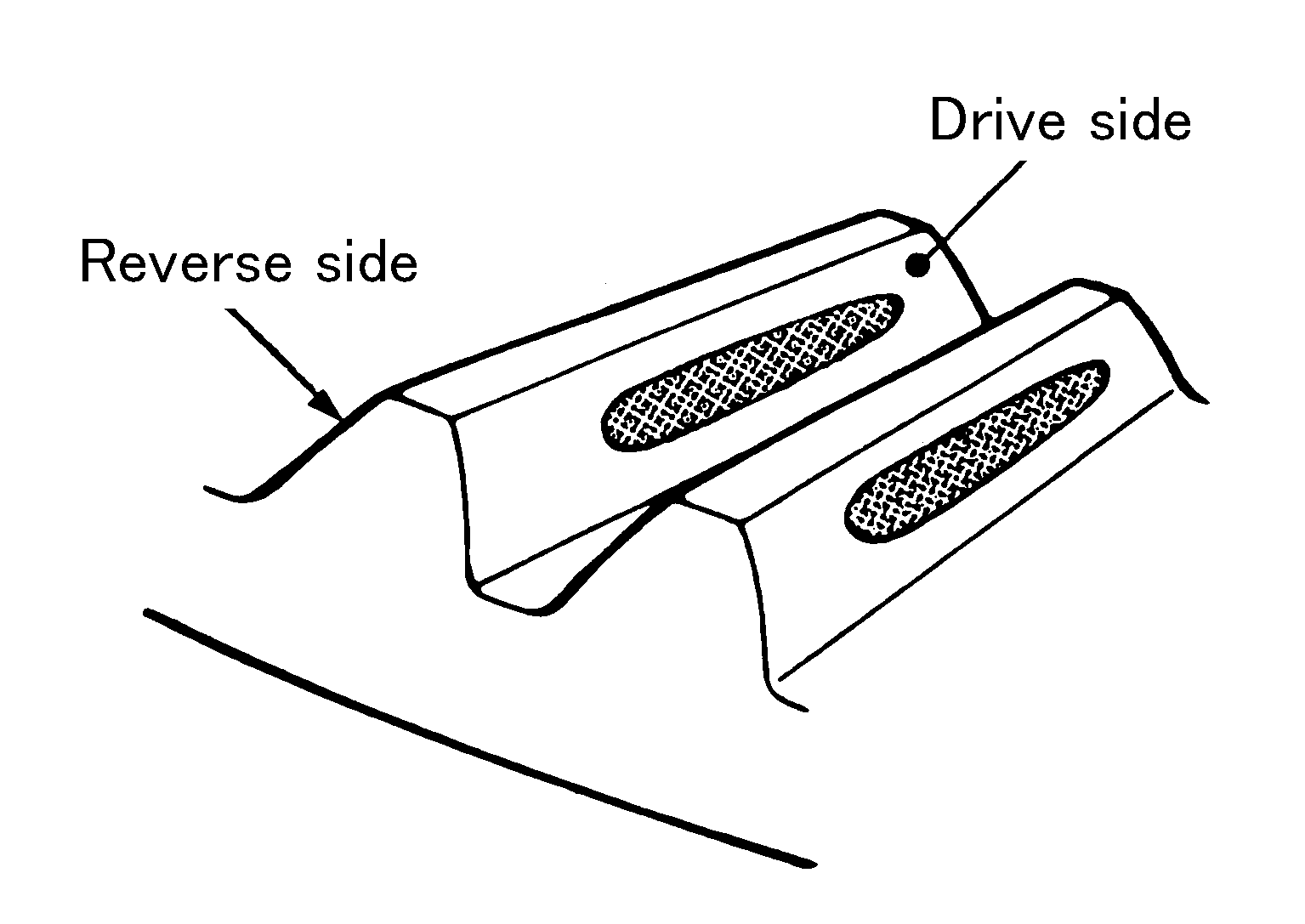

   CAUTION: Check tooth contact on drive side and reverse side.

   Courtesy of NISSAN NORTH AMERICA, INC.

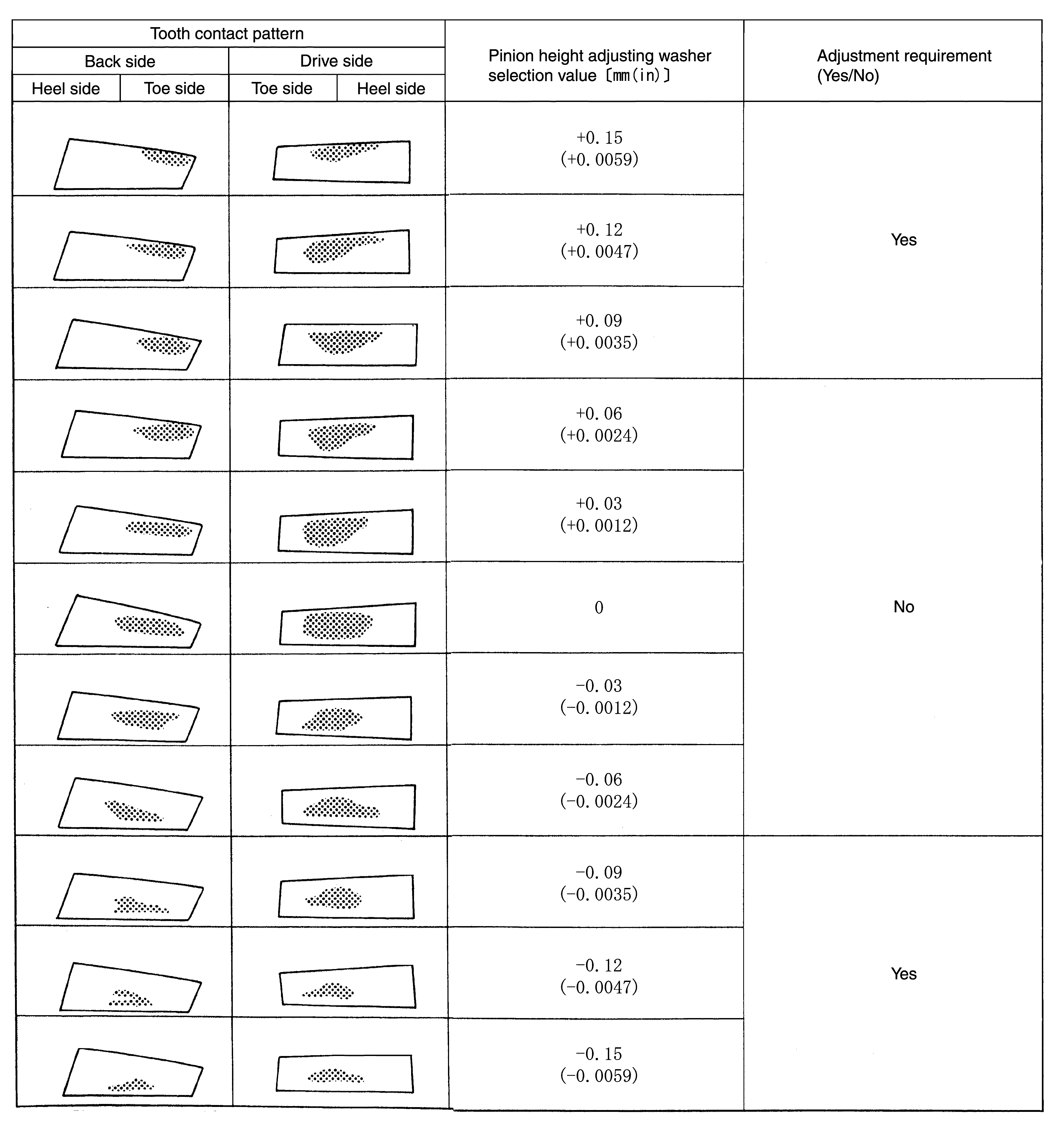

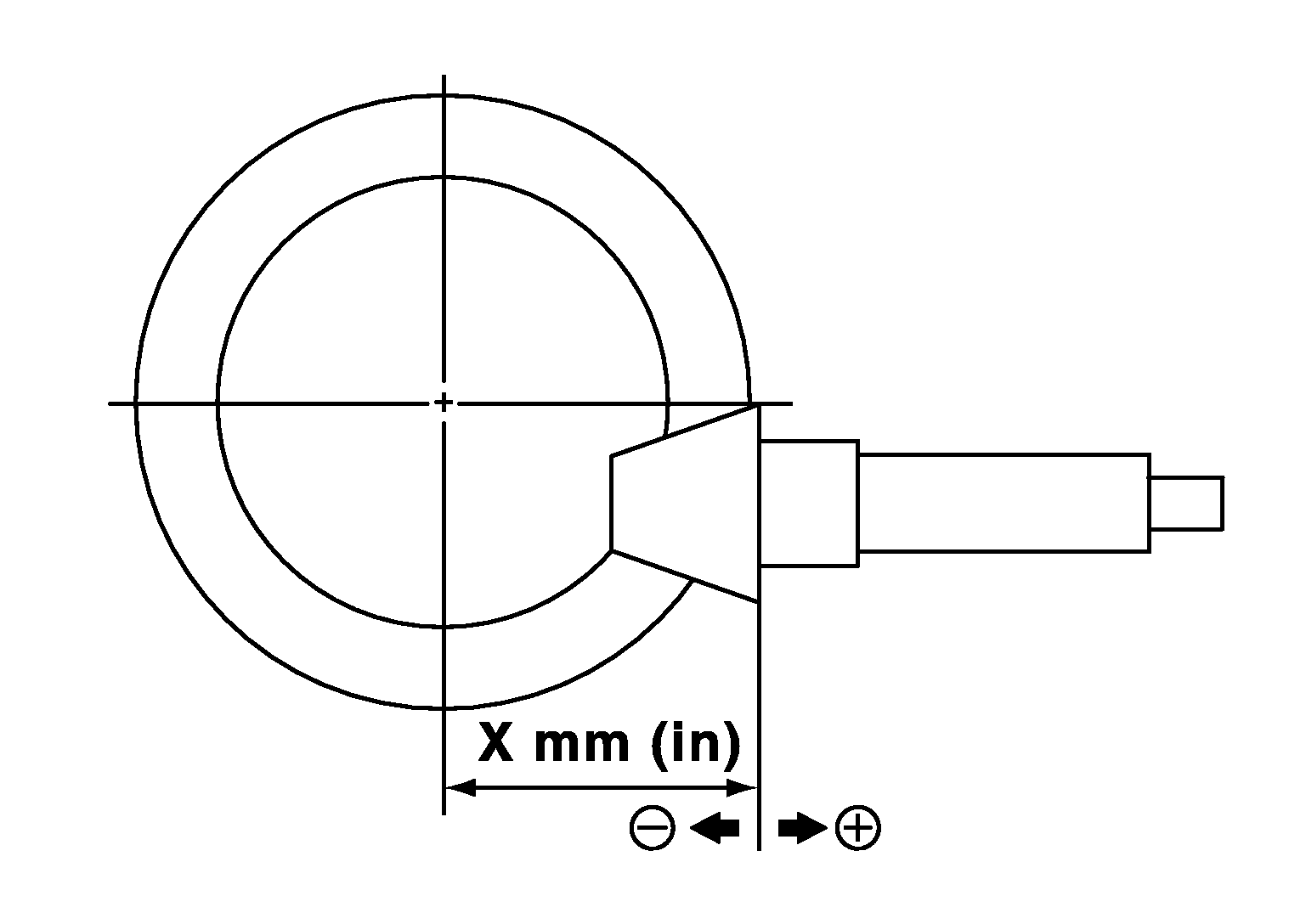

4. If tooth contact is improperly adjusted, follow the procedure below to adjust the pinion height [dimension (X)].

   Courtesy of NISSAN NORTH AMERICA, INC.

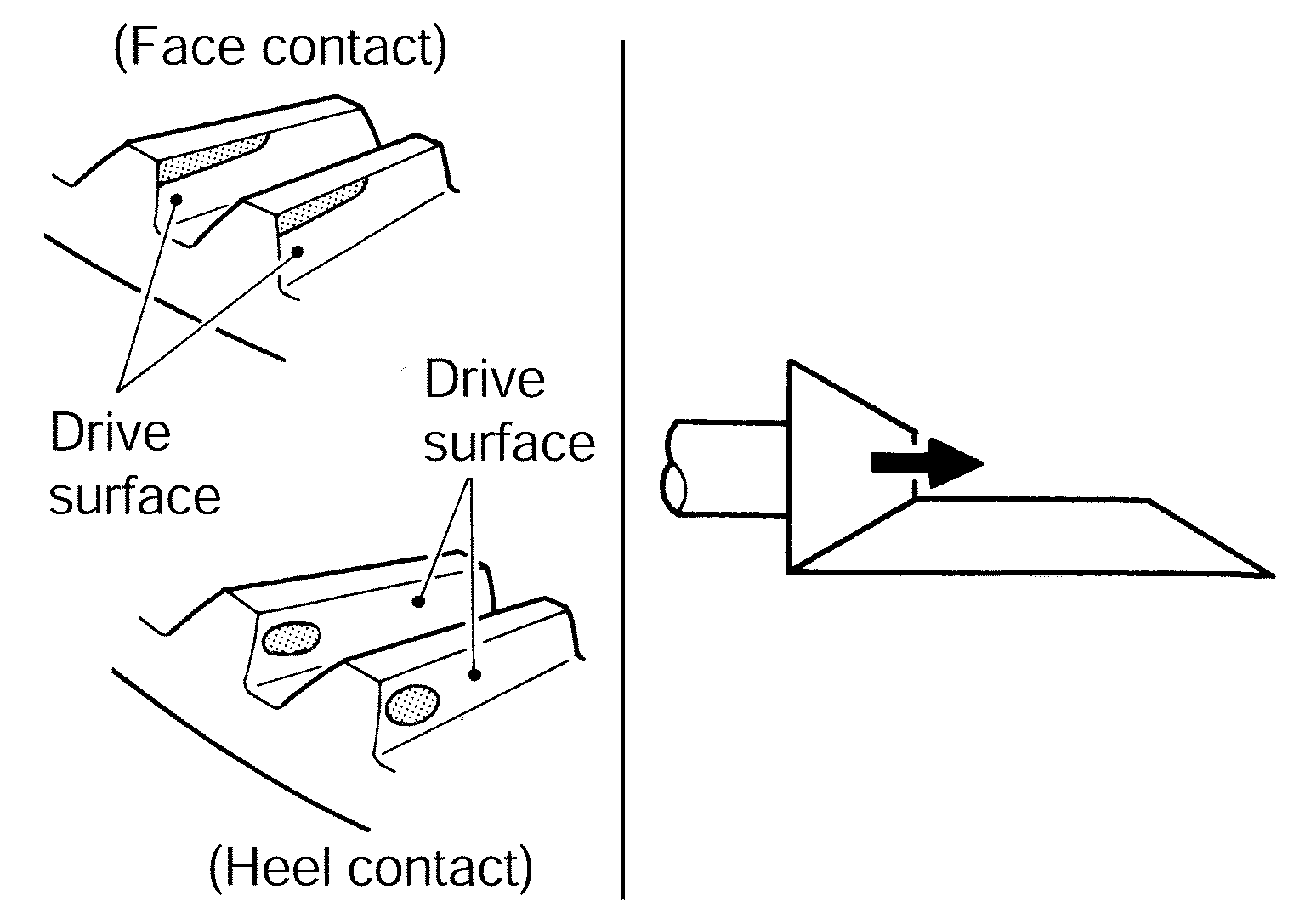

   • If the tooth contact is near the face (face contact), or near the heel (heel contact), thicken pinion height adjusting washers to move drive pinion closer to drive gear.

     Courtesy of NISSAN NORTH AMERICA, INC.

     For selecting adjusting washer, refer to the latest parts information.

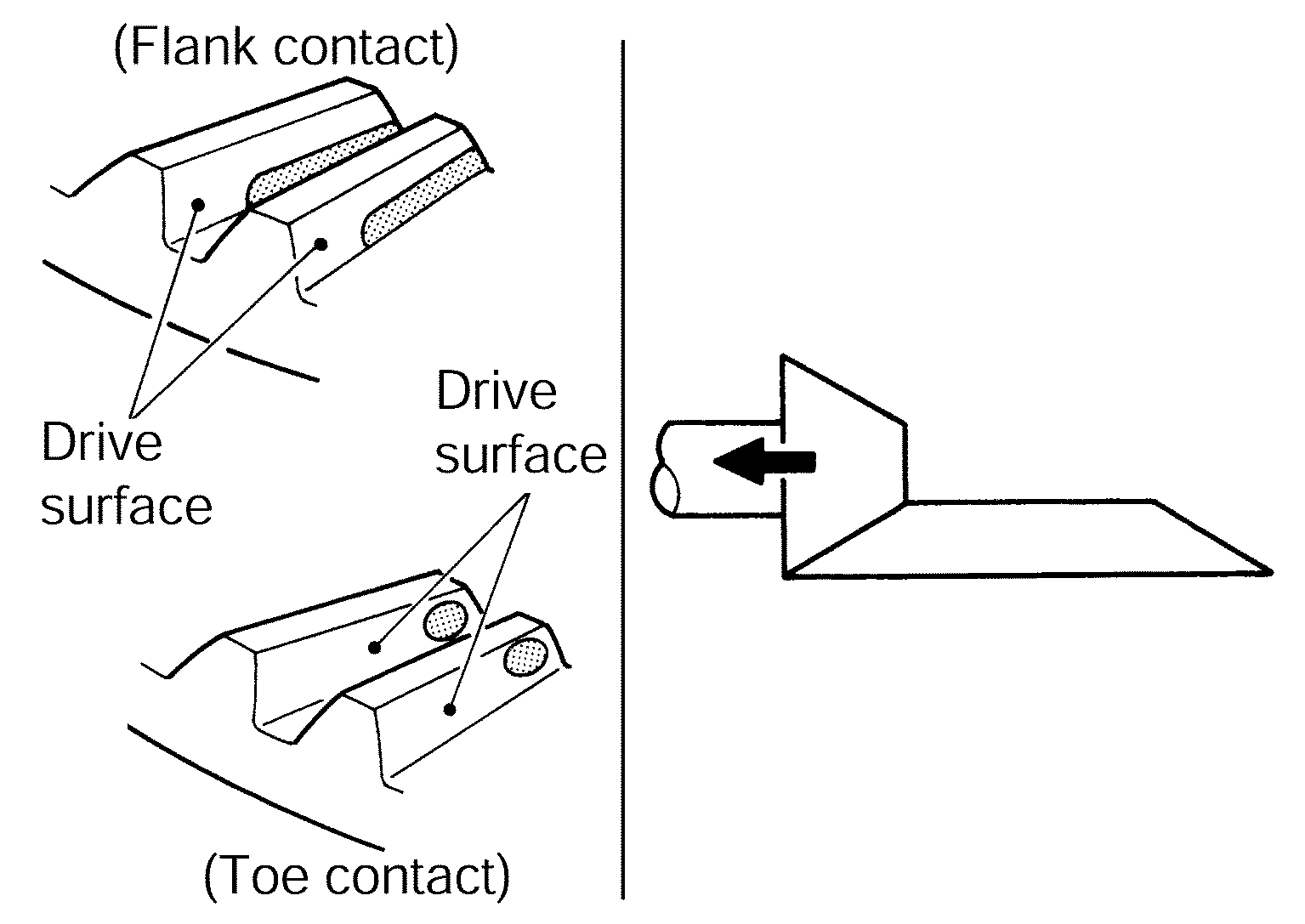

   • If the tooth contact is near the flank (flank contact), or near the toe (toe contact), thin pinion height adjusting washers to move drive pinion farther from drive gear.

     Courtesy of NISSAN NORTH AMERICA, INC.

     For selecting adjusting washer, refer to the latest parts information.
