FRONT FINAL DRIVE DIFFERENTIAL ASSEMBLY : Disassembly & Assembly: Disassembly

  1. Drain gear oil, if necessary.
  2. Remove carrier cover mounting bolts.

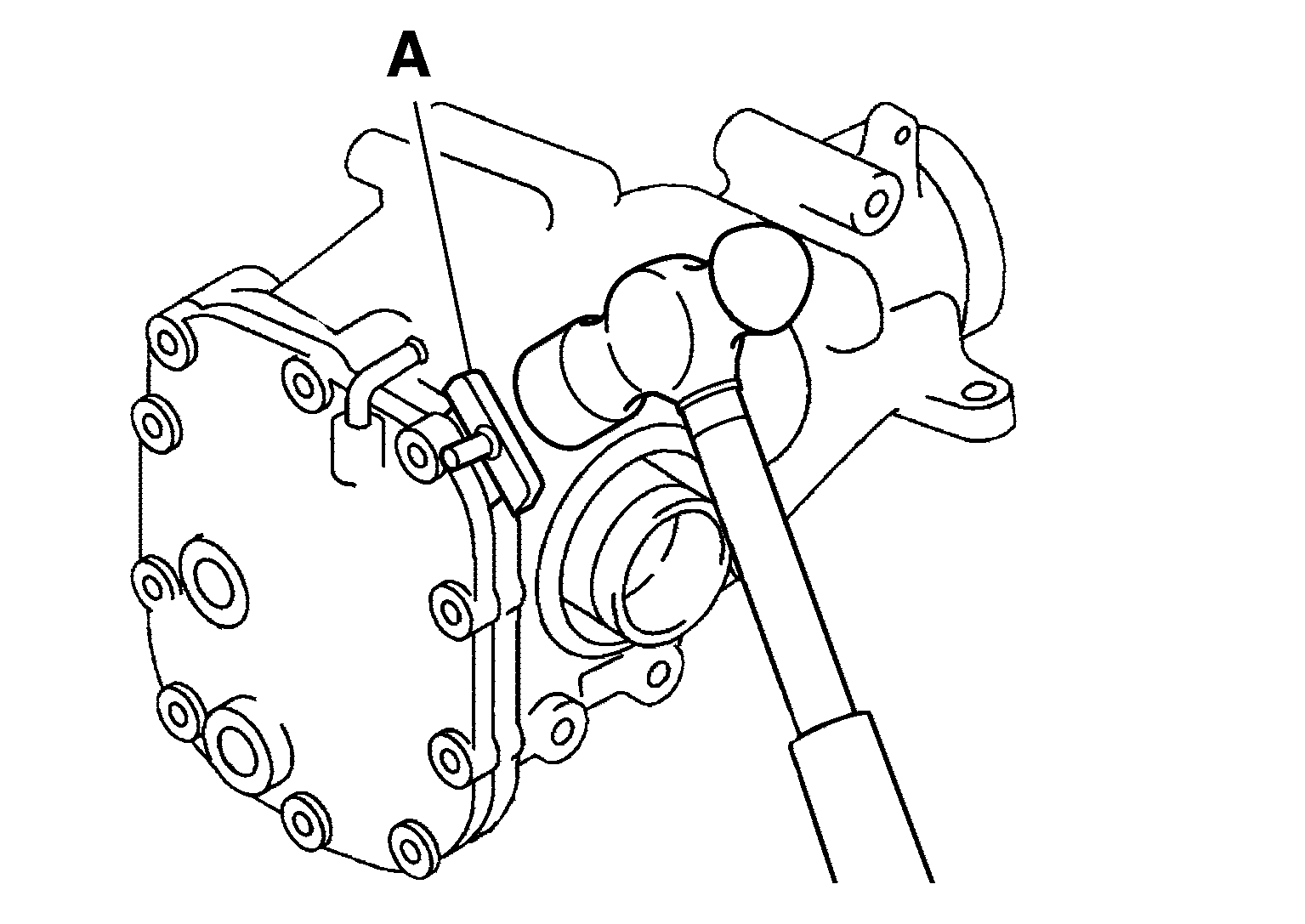

  3. Remove carrier cover to insert the seal cutter (A) [SST: KV10111100 (J-37228)] between gear carrier and carrier cover.
    G04076239Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Never damage the mating surface.
    • Never insert flat-bladed screwdriver, this may damage the mating surface.

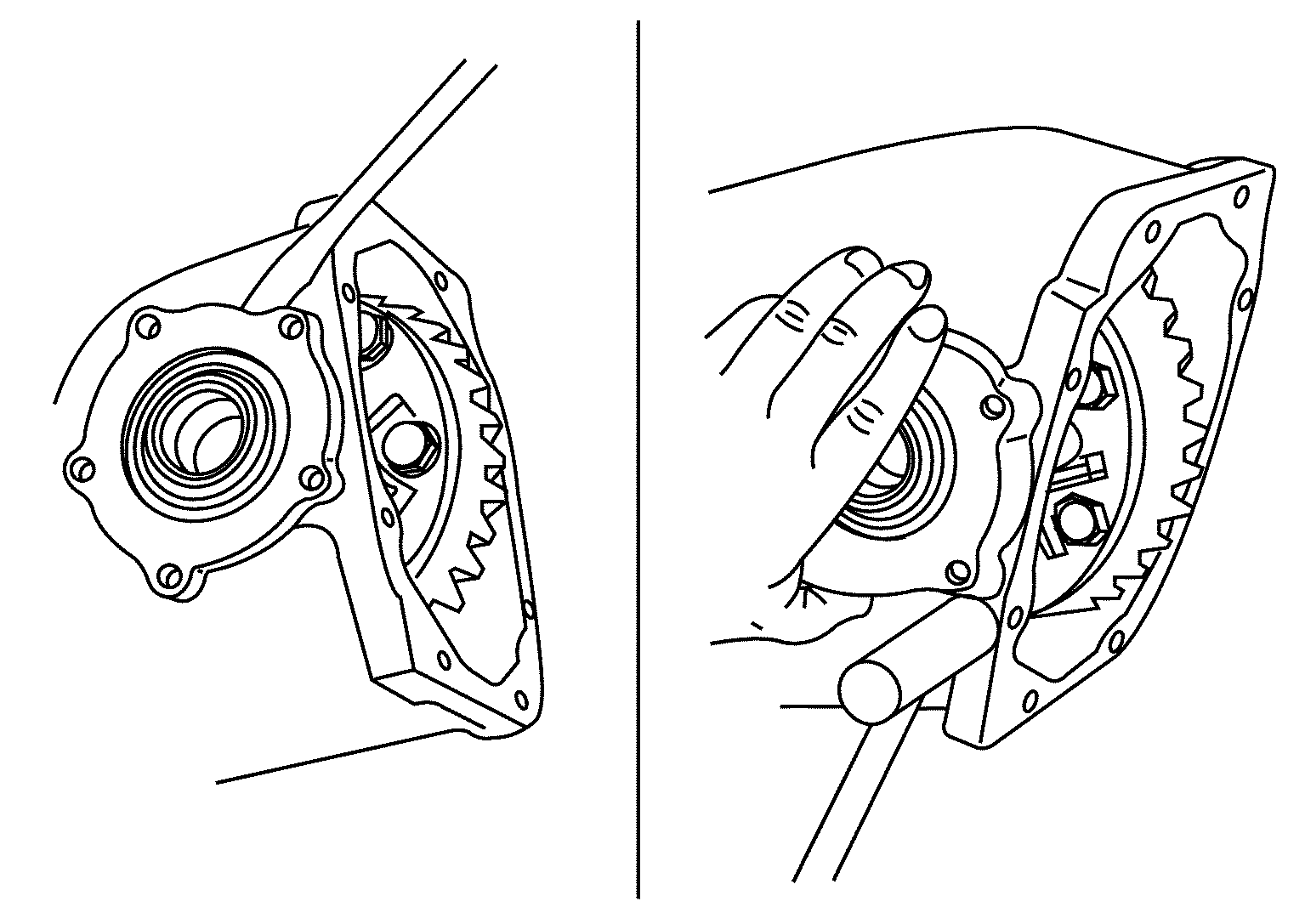

  4. Remove side retainer.
    G04076240Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove side bearing adjusting shim.
  6. Remove O-ring from side retainer.
  7. Remove differential case assembly from gear carrier.
    G04076241Courtesy of NISSAN NORTH AMERICA, INC.

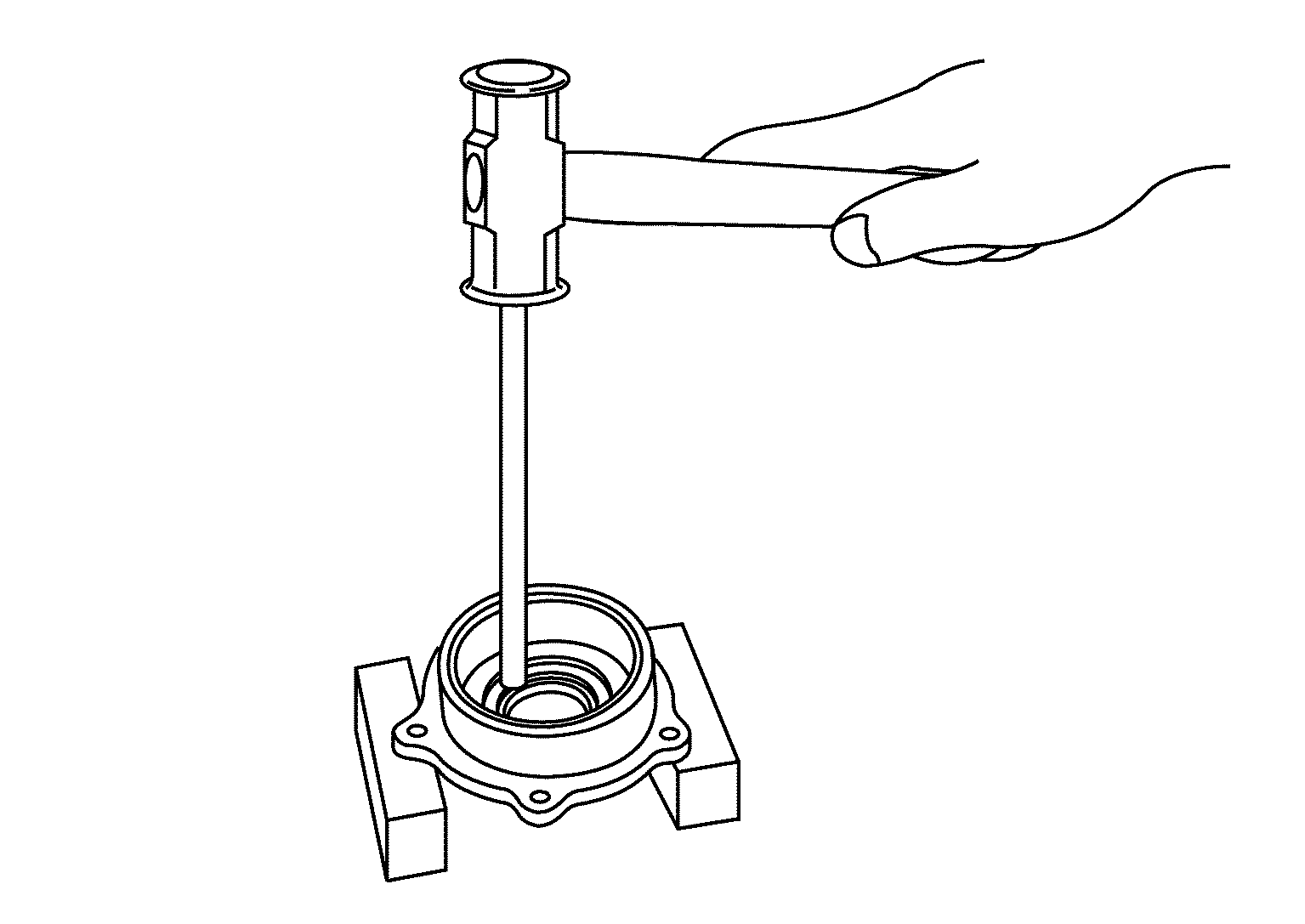

  8. Remove side oil seal (right side) from side retainer.
    G04076242Courtesy of NISSAN NORTH AMERICA, INC.
  9. Remove side bearing outer race with puller (A) [SST: KV381054S0 (J-34286)].
    G04076243Courtesy of NISSAN NORTH AMERICA, INC.
  10. Remove O-ring from gear carrier.
  11. Remove side oil seal (left side) from gear carrier.

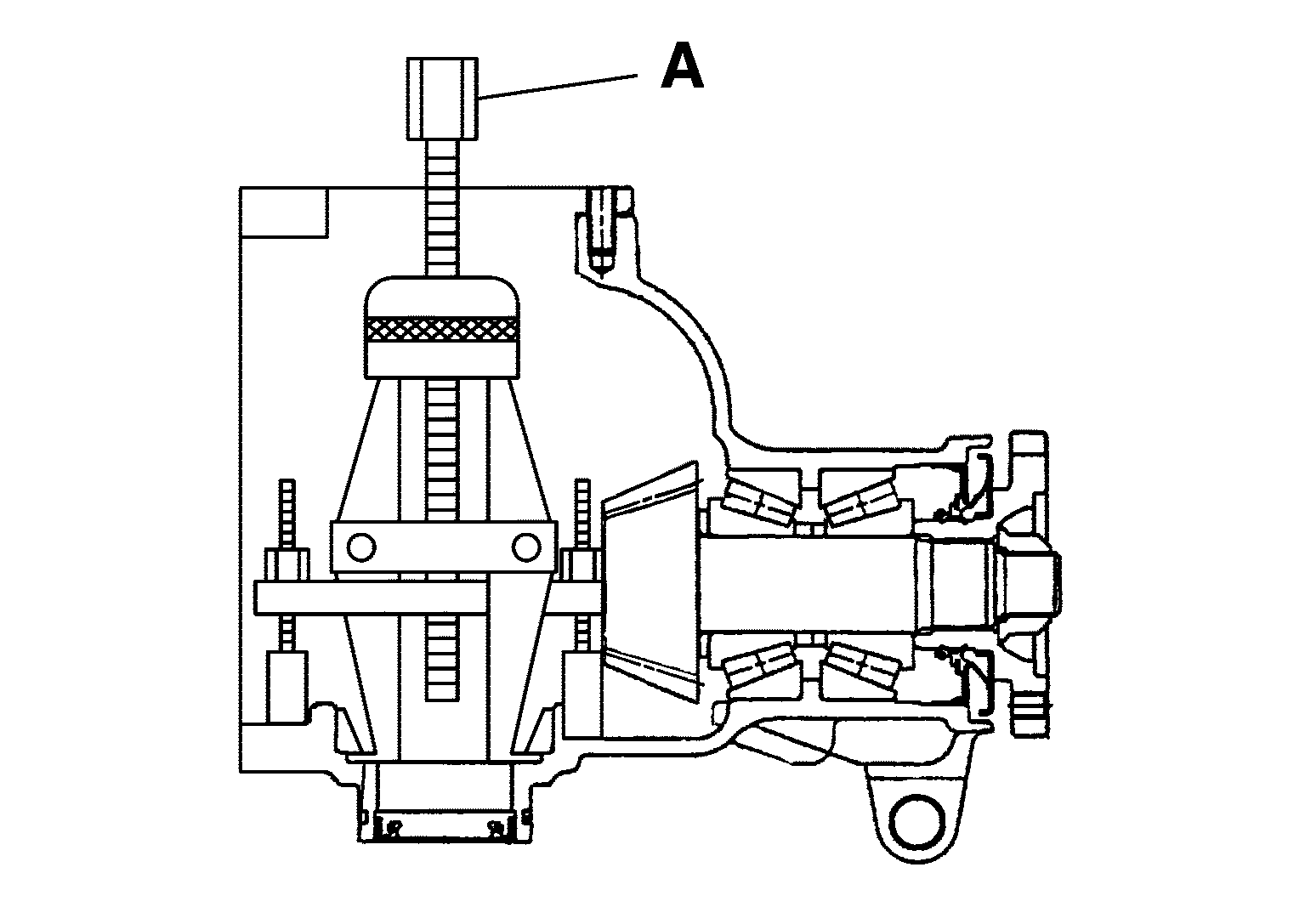

  12. Remove side bearing outer race with puller (A) [SST: KV381054S0 (J-34286)].
    G04076244Courtesy of NISSAN NORTH AMERICA, INC.

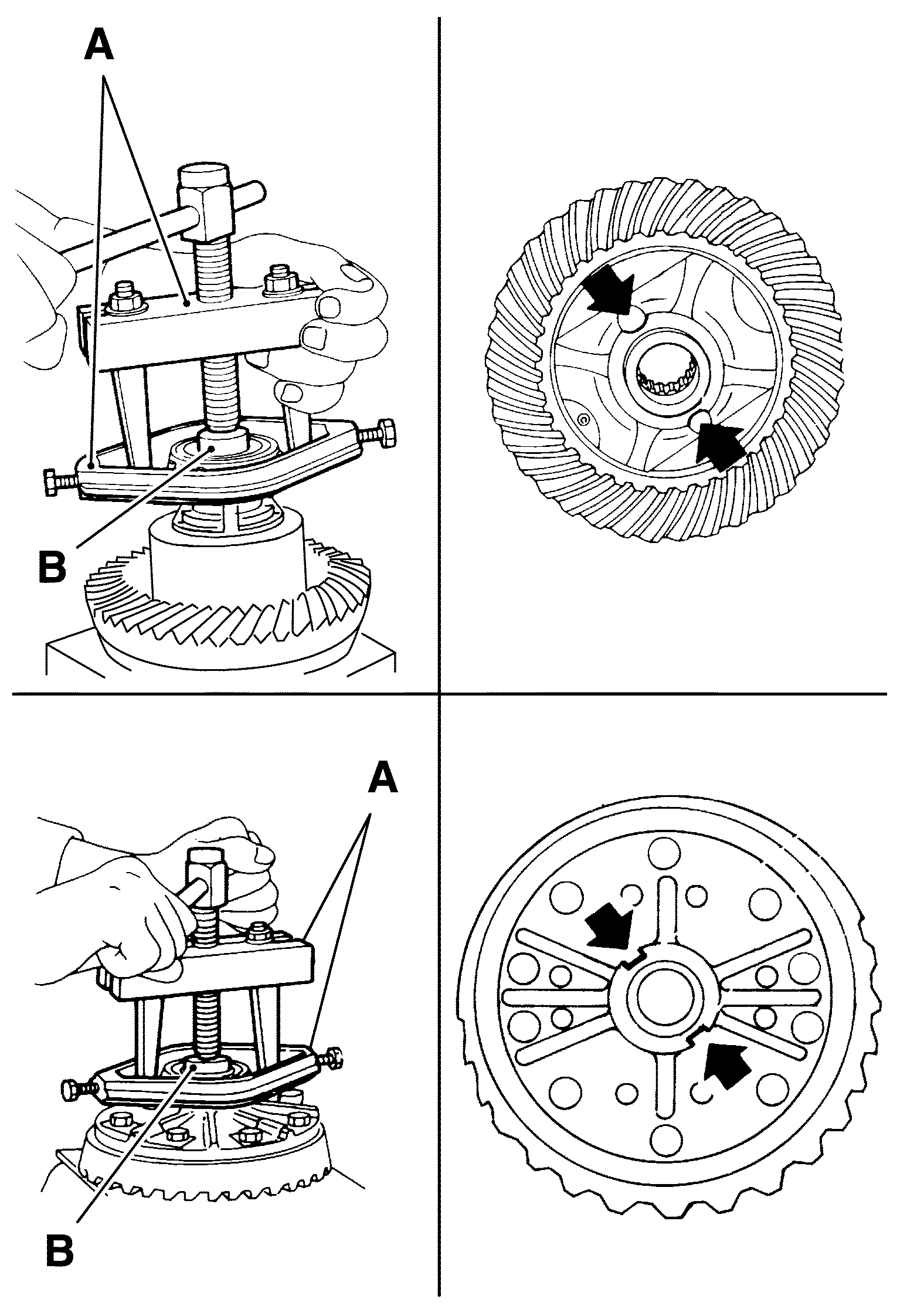

  13. Remove side bearing inner race with puller (A) and base (B).
    G04076245Courtesy of NISSAN NORTH AMERICA, INC.

    To prevent damage to bearing, engage puller jaws in groove (SYMBOL ).

    A: Puller [SST: ST33051001 (J-22888-20)]

    B: Base [SST: ST33061000 (J-8107-2)]
    CAUTION:
    • To prevent damage to the side bearing and drive gear, place copper plates between these parts and vise.
    • It is not necessary to remove side bearing inner race except if it is replaced.

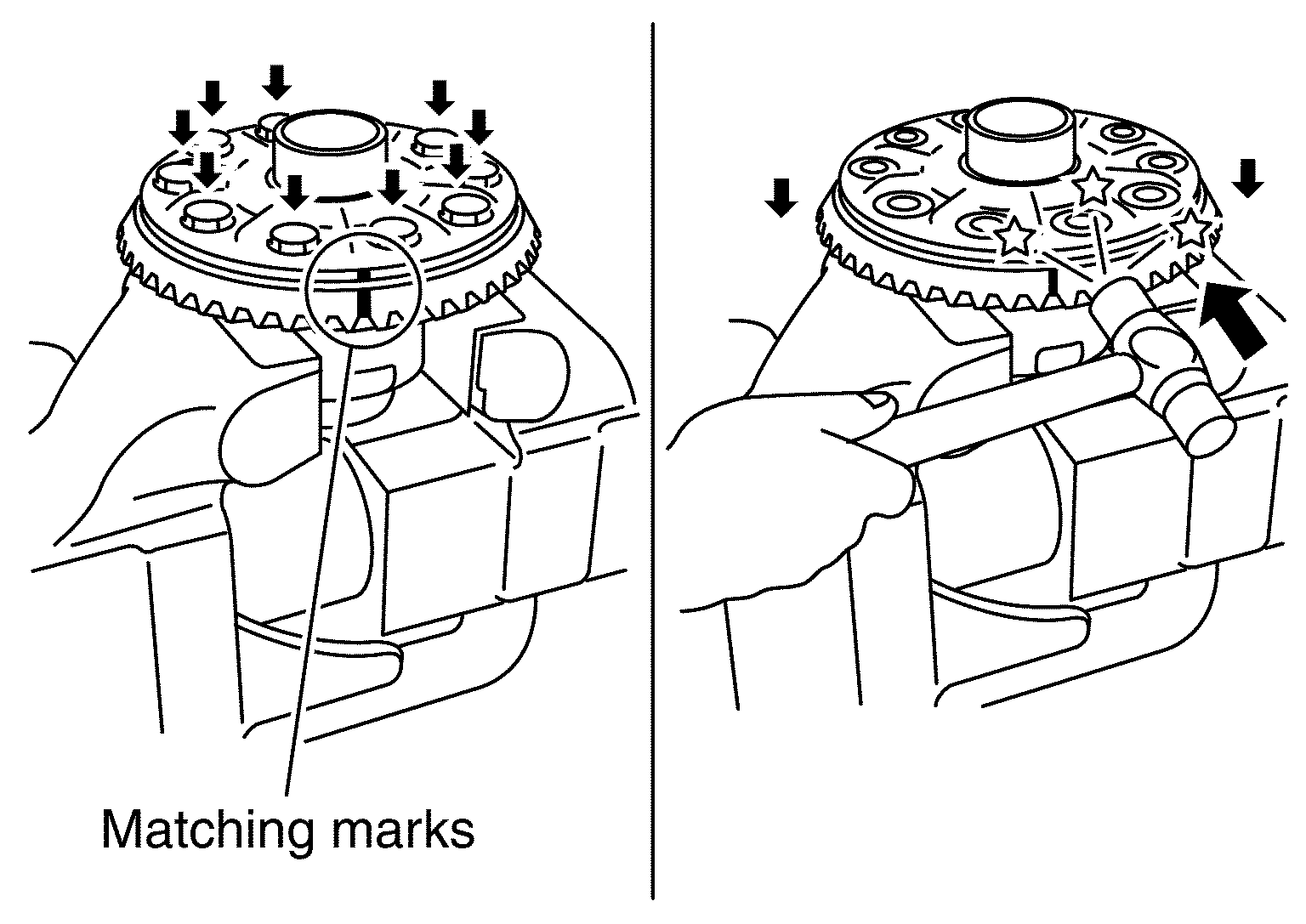

  14. For proper reinstallation, paint matching marks on one differential case assembly.
    G04076246Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: For matching marks, use paint. Never damage differential case and drive gear.
  15. Remove drive gear mounting bolts.
  16. Tap drive gear off differential case assembly with a soft hammer.
    CAUTION: Tap evenly all around to keep drive gear from bending.

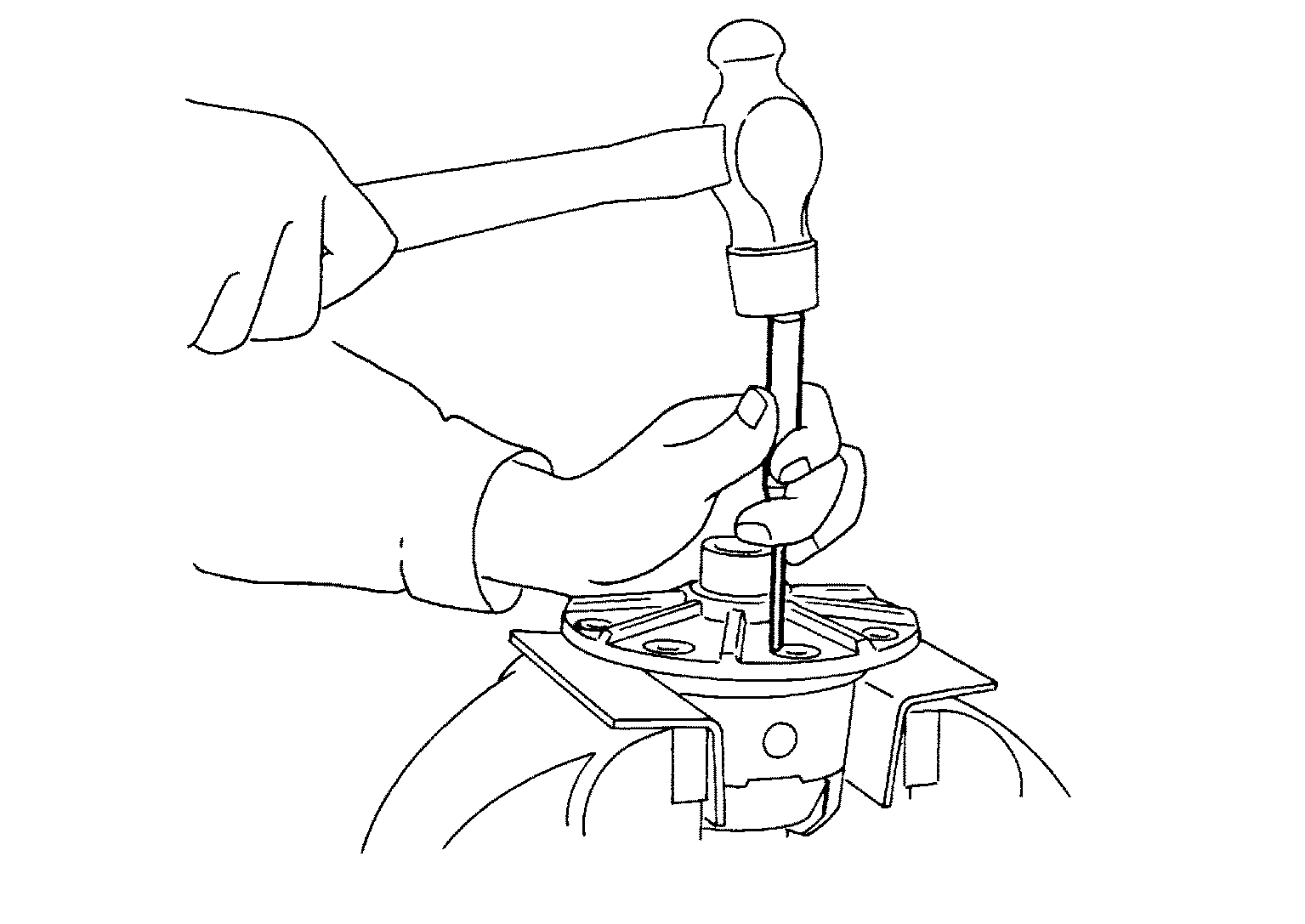

  17. Remove lock pin of pinion mate shaft with a punch from drive gear side.
    G04076247Courtesy of NISSAN NORTH AMERICA, INC.

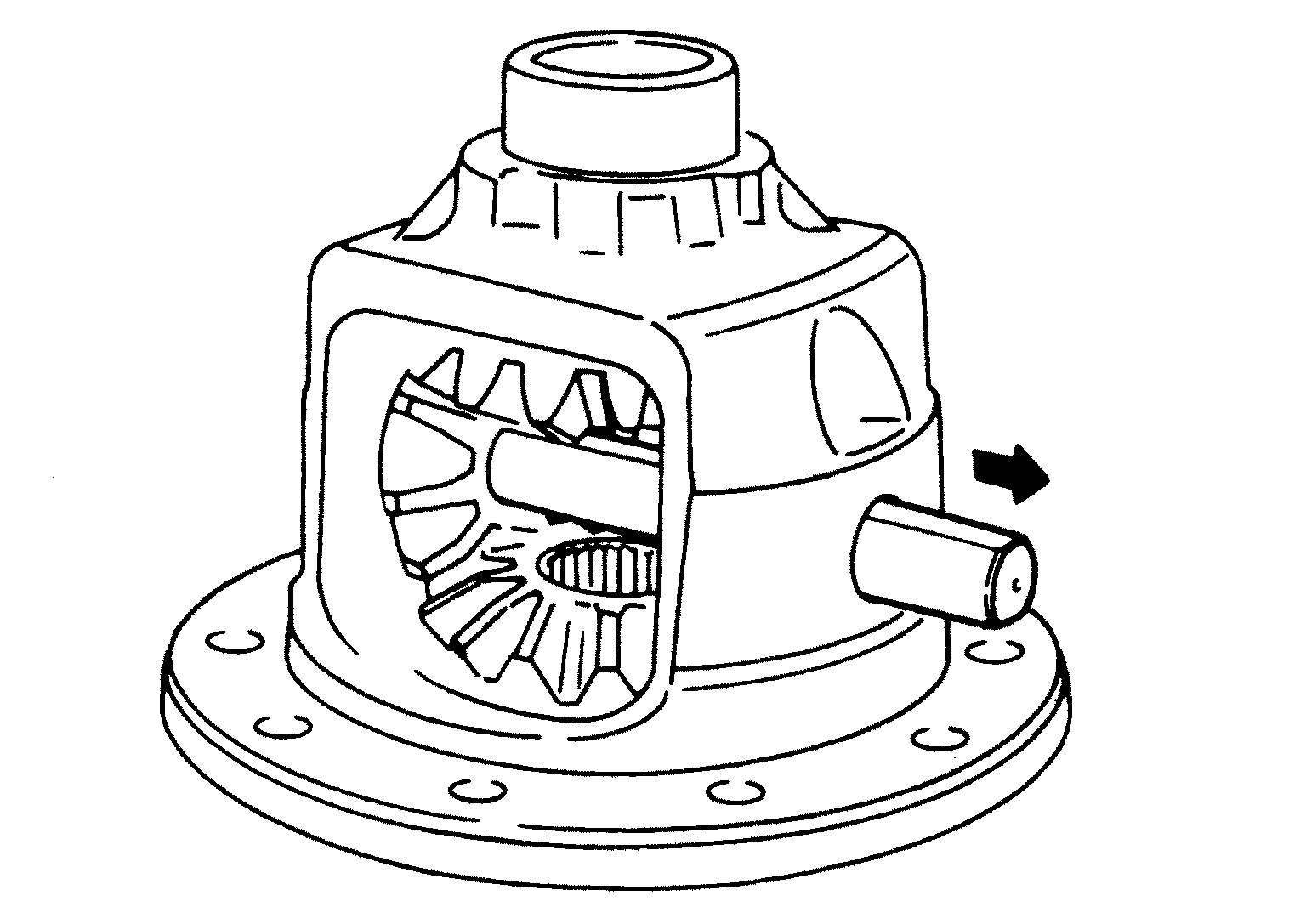

  18. Remove pinion mate shaft.
    G04076248Courtesy of NISSAN NORTH AMERICA, INC.

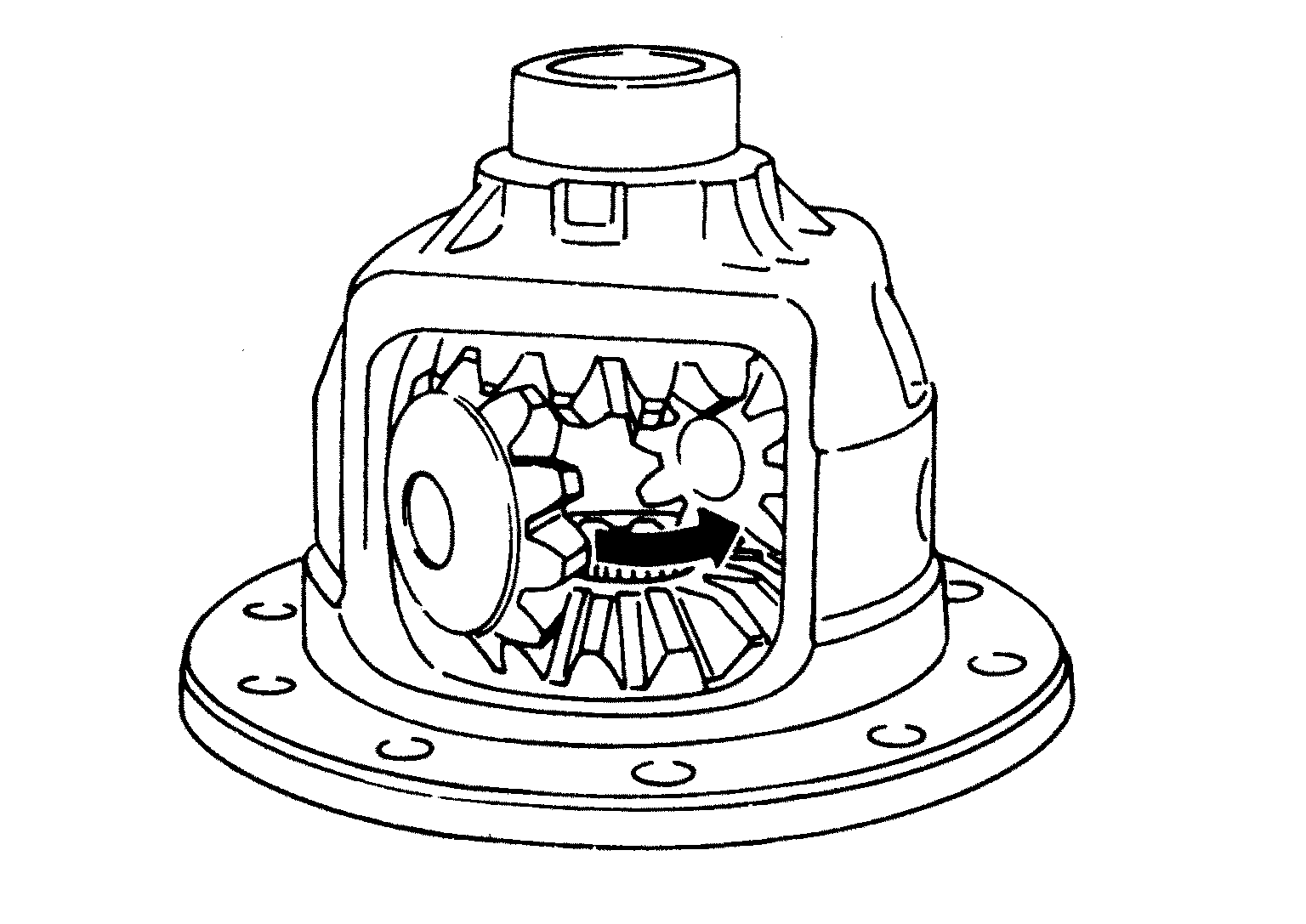

  19. Turn pinion mate gear, then remove pinion mate gears, pinion mate thrust washers, side gears and side gear thrust washers from differential case.
    G04076249Courtesy of NISSAN NORTH AMERICA, INC.
  20. Perform inspection after disassembly. Refer to FRONT FINAL DRIVE DIFFERENTIAL ASSEMBLY : Inspection .
