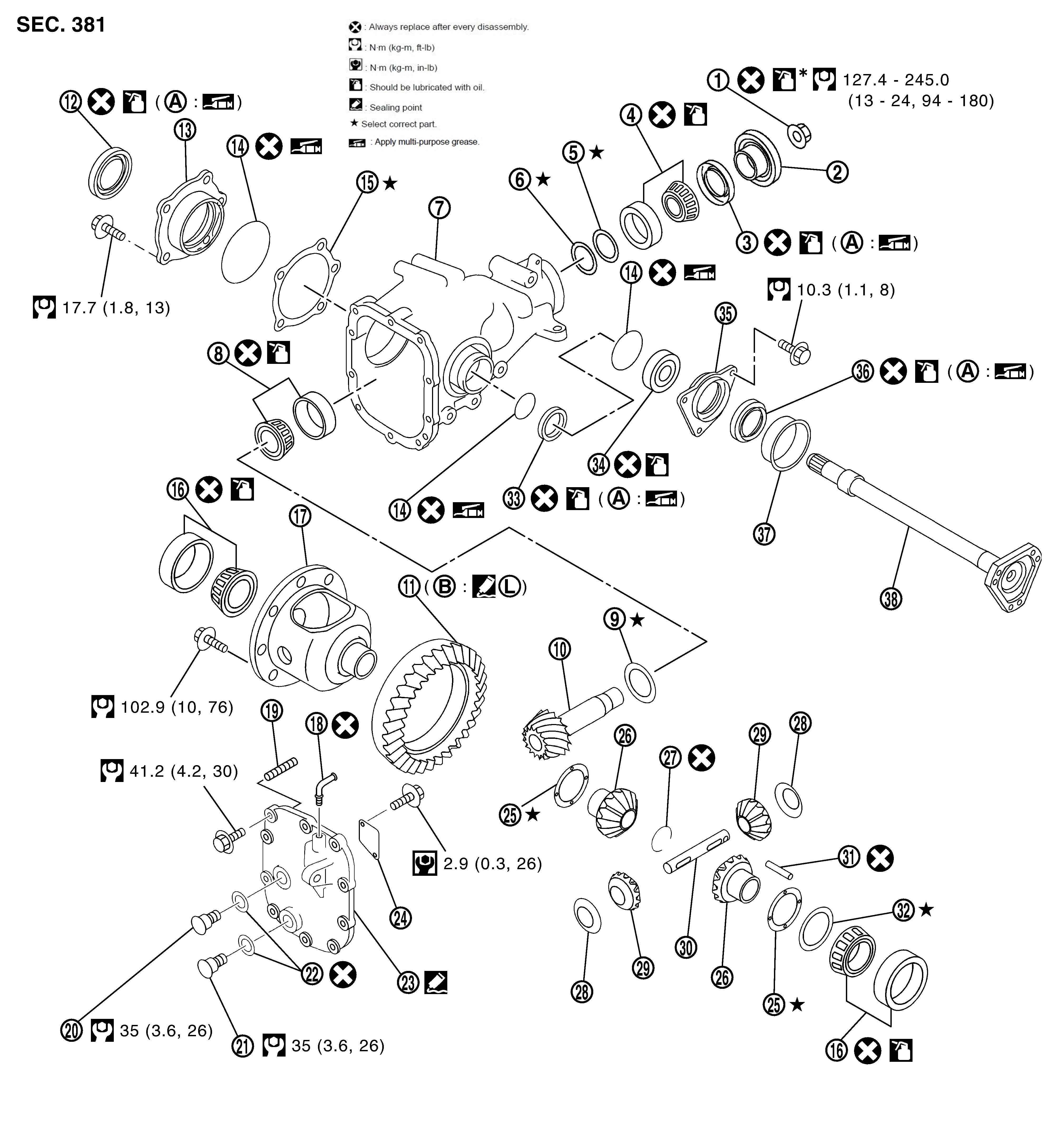

FRONT FINAL DRIVE DIFFERENTIAL ASSEMBLY : Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

	Drive pinion lock nut	Companion flange	Front oil seal
	Pinion front bearing	Drive pinion bearing adjusting washer	Drive pinion adjusting washer
	Gear carrier	Pinion rear bearing	Pinion height adjusting washer
	Drive pinion	Drive gear	Side oil seal (right side)
	Side retainer	O-ring	Side bearing adjusting shim
	Side bearing	Differential case	Breather connector
	Dowel pin	Filler plug	Drain plug
	Gasket	Carrier cover	Gear oil defense
	Side gear thrust washer	Side gear	Circular clip
	Pinion mate thrust washer	Pinion mate gear	Pinion mate shaft
	Lock pin	Side bearing adjusting washer	Side oil seal (left side)
	Side shaft bearing	Extension tube retainer	Side shaft oil seal
	Dust seal	Side shaft
	Oil seal lip	Screw hole
: N.m (kg-m, in-lb)
: N.m (kg-m, ft-lb)
: Always replace after every disassembly.
: Select with proper thickness.
: Apply gear oil.
*: Apply anti-corrosion oil.
: Apply multi purpose grease.
: Apply Genuine Silicone RTV or equivalent. Refer to MAINTENANCE : Recommended Fluid and Lubricants .
: Apply Genuine Medium Strength Thread Locking Sealant or equivalent. Refer to MAINTENANCE : Recommended Fluid and Lubricants .
