REAR FINAL DRIVE DIFFERENTIAL ASSEMBLY : Exploded View

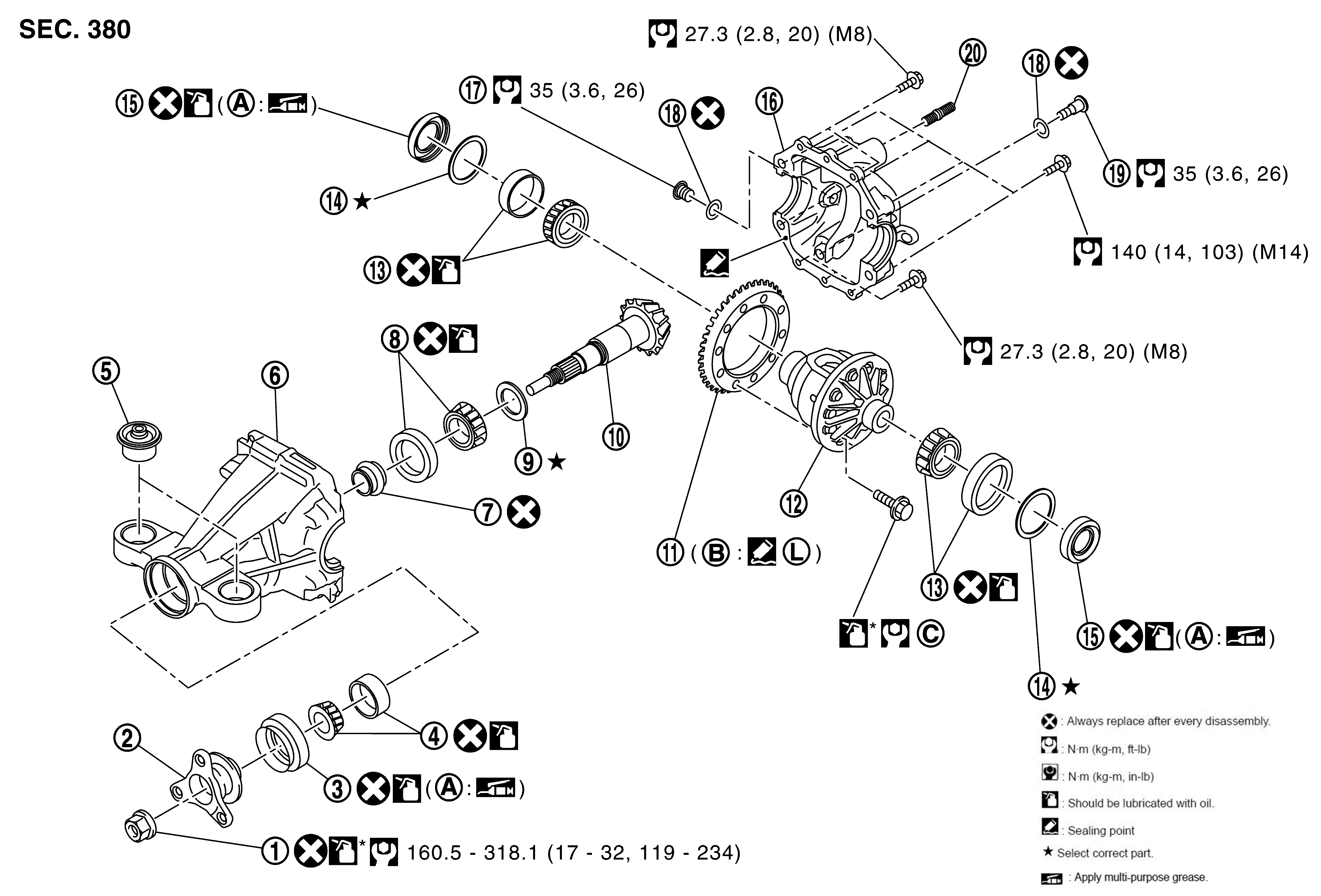

Fig 1: Rear Final Drive Differential Assembly Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Drive pinion lock nut	Companion flange	Front oil seal
	Pinion front bearing	Mounting insulator	Gear carrier
	Collapsible spacer	Pinion rear bearing	Pinion height adjusting washer
	Drive pinion	Drive gear	Differential assembly
	Side bearing	Side bearing adjusting washer	Side oil seal
	Rear cover	Filler plug	Gasket
	Drain plug	Stud bolt
	Oil seal lip	Screw hole	Comply with the assembly procedure when tightening. Refer to REAR FINAL DRIVE DIFFERENTIAL ASSEMBLY : Disassembly & Assembly .
: N.m (kg-m, ft-lb)
: Always replace after every disassembly.
: Select with proper thickness.
: Apply gear oil.
*: Apply anti-corrosion oil.
: Apply multi purpose grease.
: Apply Genuine Silicone RTV or equivalent. Refer to MAINTENANCE : Recommended Fluid and Lubricants .
: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to MAINTENANCE : Recommended Fluid and Lubricants .
