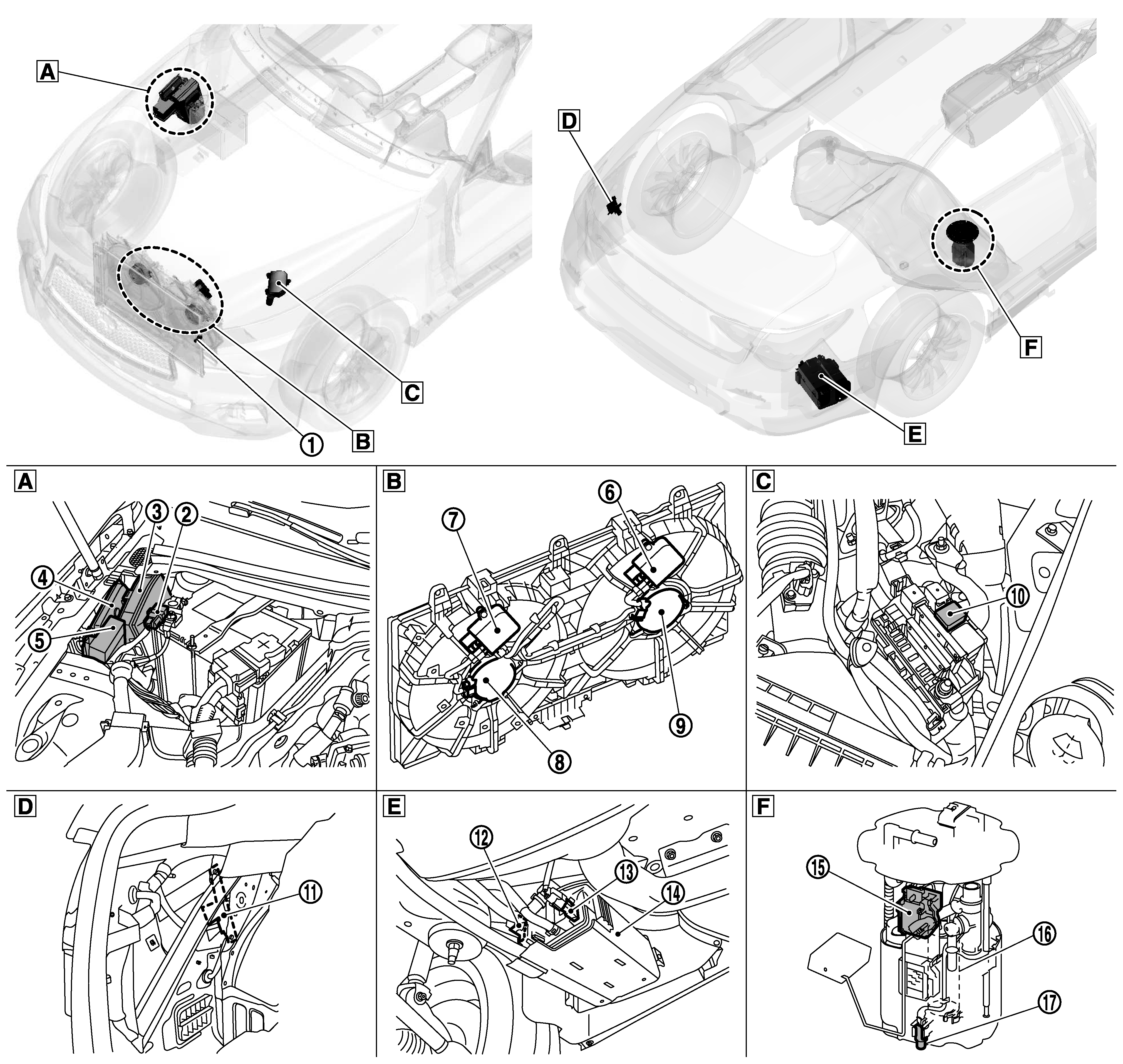

Vehicle Compartment
|
|
Around the battery |
|
Around the radiator |
|
Fuse and fusible link block |
|
|
Left side of trunk room |
|
Right side of main muffler |
|
Rear seat (lower right) |
|
No. |
Component |
Function |
|
|
Refrigerant pressure sensor |
Refer to Component Description . |
|
|
Battery current sensor (with battery temperature sensor) |
Refer to Component Description . |
|
|
IPDM E/R |
IPDM E/R controls the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control.
|
|
|
Electric intake valve timing control module |
Refer to Component Description . |
|
|
Cooling fan relay 2* |
Refer to Component Description . |
|
|
Cooling fan control module 2* |
Refer to Component Description . |
|
|
Cooling fan control module 1 |
Refer to Component Description . |
|
|
Cooling fan motor-1 |
Refer to Component Description . |
|
|
Cooling fan motor-2 |
Refer to Component Description . |
|
|
Cooling fan relay 1 |
Refer to Component Description . |
|
|
Fuel pump control module |
Refer to Component Description . |
|
|
EVAP canister vent control valve |
Refer to Component Description . |
|
|
EVAP control system pressure sensor |
Refer to Component Description . |
|
|
EVAP canister |
EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the fuel tank. |
|
|
Fuel level sensor |
Refer to Component Description . |
|
|
Low pressure fuel pump |
Refer to Component Description . |
|
|
Fuel tank temperature sensor |
Refer to Component Description . |
*: For turbo high pressure model
