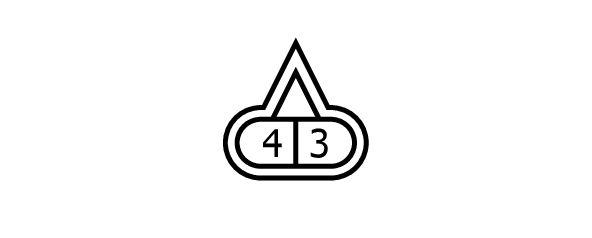

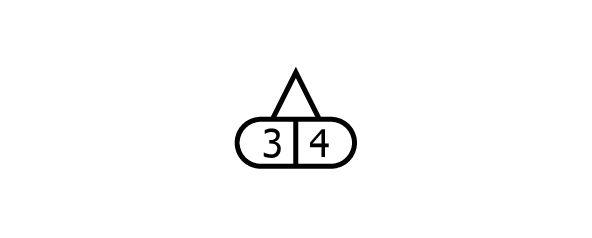

Compressor Connector End View (F64)
Connector Types:
RK02FGY
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 3 |
LG |
- |
| 4 |
Y |
- |
