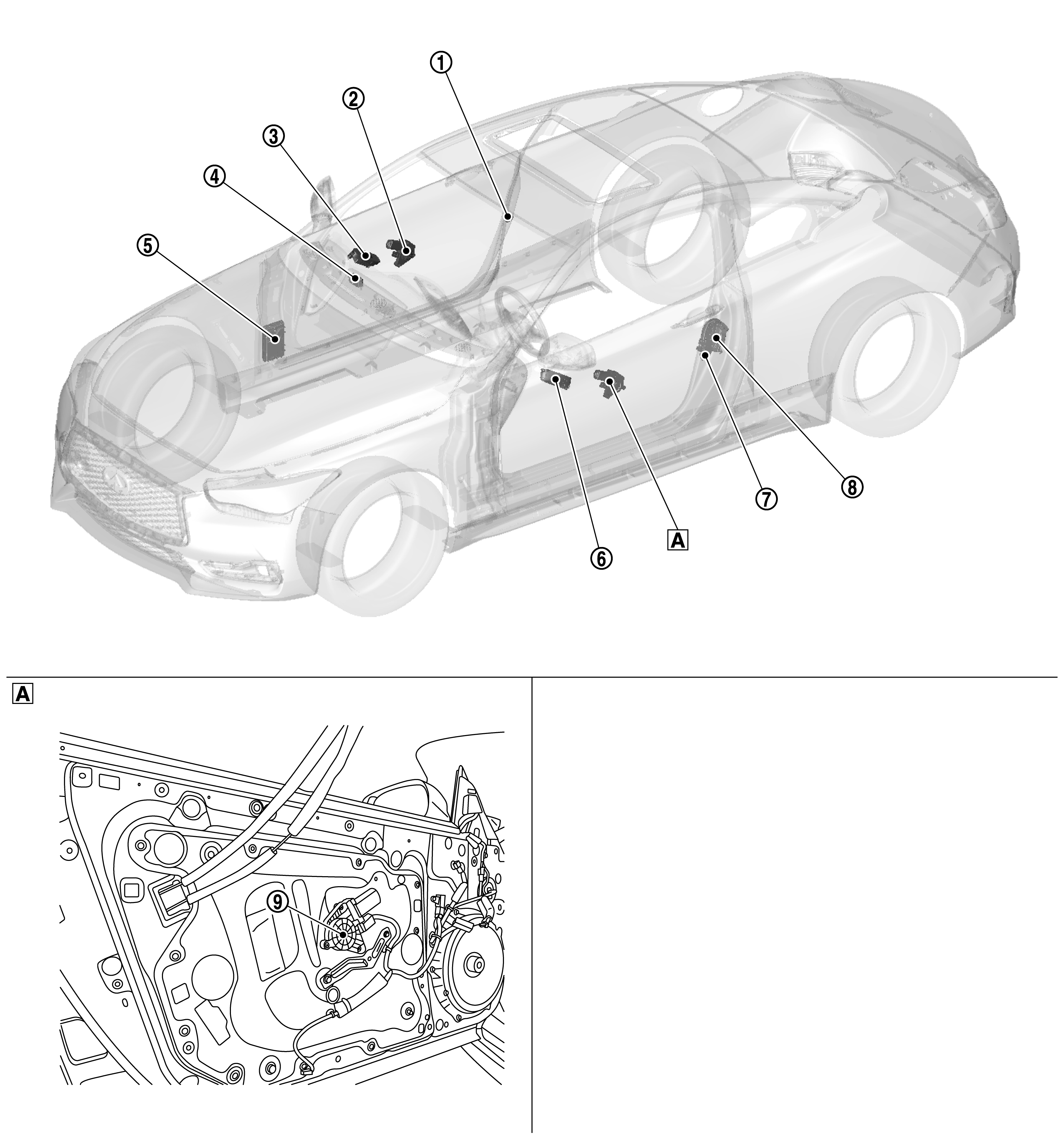

Component Location

View with door finisher (driver side) removed

No.

Component

Function

Door switch (passenger side)

Detects door open/close condition and transmits to BCM.

Refer to Component Description for detailed installation location.

Power window motor (passenger side)

Refer to Component Description .

Power window sub-switch

Refer to Component Description .

Remote keyless entry receiver

Receives key ID signal from the Intelligent Key, and then transmits to BCM.

Refer to Component Description for detailed installation location.

BCM

• Supplies power supply to each power window switch.
• Controls retained power.
• Receives key ID signal from remote keyless entry receiver.
• Controls keyless power window operation via serial link.

Refer to Component Location for detailed installation location.

Power window main switch

Refer to Component Description .

Door switch (driver side)

Detects door open/close condition and transmits to BCM.

Refer to Component Description for detailed installation location.

Door lock assembly (driver side) ^*

Power window motor (driver side)

Refer to Component Description .
