Component Location

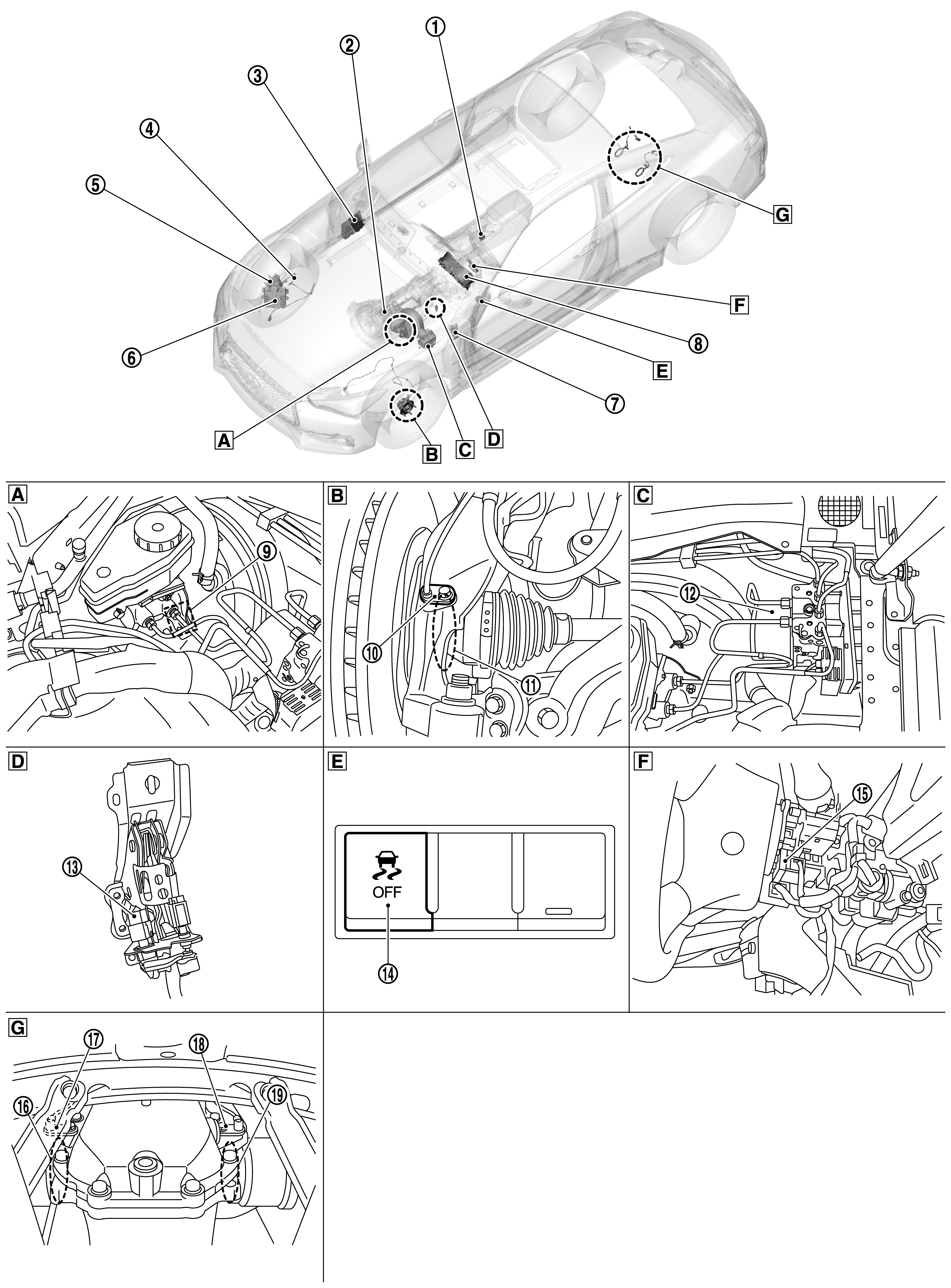

GNSJSFIA3923Z-923Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Brake booster

SYMBOL

Steering knuckle

SYMBOL

Inside of brake master cylinder cover

SYMBOL

Brake pedal

SYMBOL

Instrument driver lower panel

SYMBOL

Back of spiral cable assembly

SYMBOL

Rear final drive

No.

Component parts

Function

SYMBOL

Drive mode select switch

Mainly transmits the following signals to chassis control module unit.

  • Drive mode signal

Refer to Component Location . for detailed installation location.

SYMBOL

TCM

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.

  • Current gear position signal
  • Shift position signal

Refer to Component Location . for detailed installation location.

SYMBOL

Steering force control module *

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.

  • Steering pinion angle signal
  • Direct adaptive steering malfunction signal

Refer to Component Location . for detailed installation location.

SYMBOL

Front RH wheel sensor

Refer to Component Description .

SYMBOL

Front RH sensor rotor

SYMBOL

ECM

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.

  • Accelerator pedal position signal
  • Engine torque signal
  • Engine speed signal

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication.

  • Engine torque request signal

Refer to Component Location . for detailed installation location.

SYMBOL

Chassis control module

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.

  • Drive mode signal
  • Active trace control signal
  • Brake hold status signal
  • Brake hold request signal

Refer to Component Location . for detailed installation location.

SYMBOL

Combination meter

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.

  • Brake fluid level switch signal
  • Parking brake switch signal

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication.

  • ABS warning lamp signal
  • Brake warning lamp signal
  • VDC OFF indicator lamp signal
  • VDC warning lamp signal

Refer to Component Location . for detailed installation location.

SYMBOL

Vacuum sensor

Refer to Component Description .

SYMBOL

Front LH wheel sensor

Refer to Component Description .

SYMBOL

Front LH sensor rotor

SYMBOL

ABS actuator and electric unit (control unit)

Refer to Component Description .

SYMBOL

Stop lamp switch

Refer to Component Description .

SYMBOL

VDC OFF switch

Refer to Component Description .

SYMBOL

Steering angle sensor

Refer to Component Description .

SYMBOL

Rear LH sensor rotor

Refer to Component Description .

SYMBOL

Rear LH wheel sensor

SYMBOL

Rear RH wheel sensor

SYMBOL

Rear RH sensor rotor

*: With Direct Adaptive Steering
