Direct Adaptive Steering System

"DAST CALIBRATION (MODE2)" is a function to calculate an off-center of the steering rack after adjust toe-in without using the alignment tester.

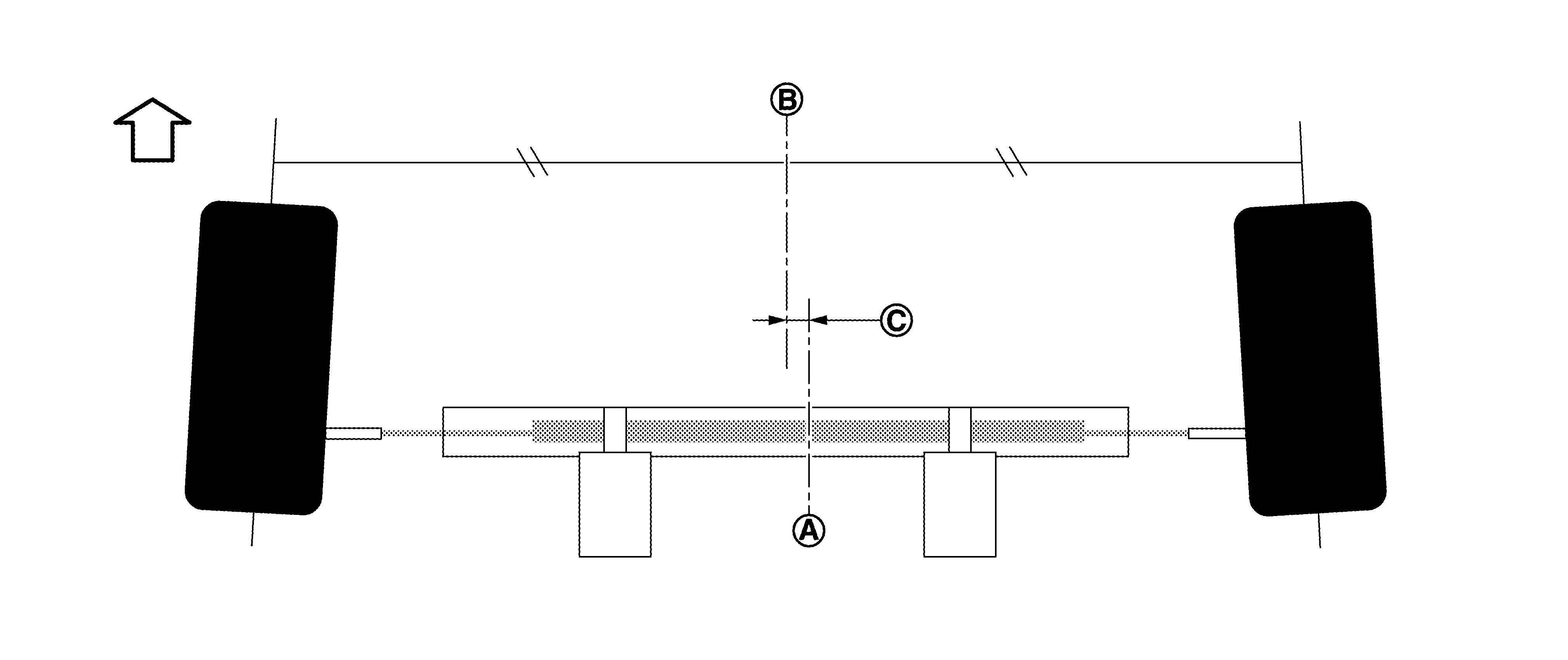

Off-center SYMBOL is calculated by the difference between a neutral position of the vehicle's alignment SYMBOL and the neutral position of the steering rack SYMBOL .

CAUTION: When adjusting toe-in without using the alignment tester, always perform "DAST CALIBRATION (MODE2)".
GNSJSGIA1330Z-330Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL : Vehicle front

Toe-in adjustment: Refer to Work Procedure .
