Direct Adaptive Steering System

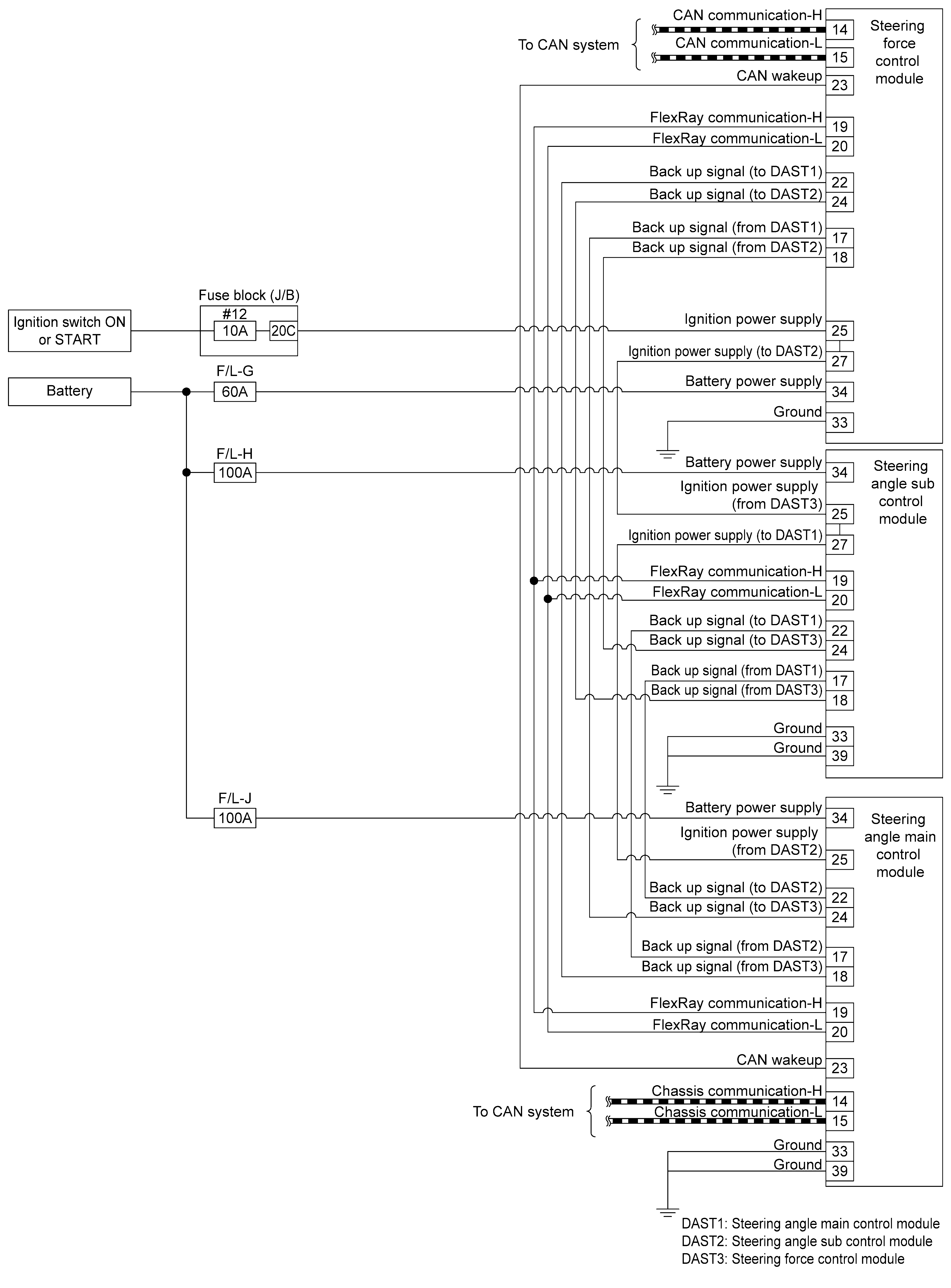

GNSILL0335876Courtesy of NISSAN NORTH AMERICA, INC.

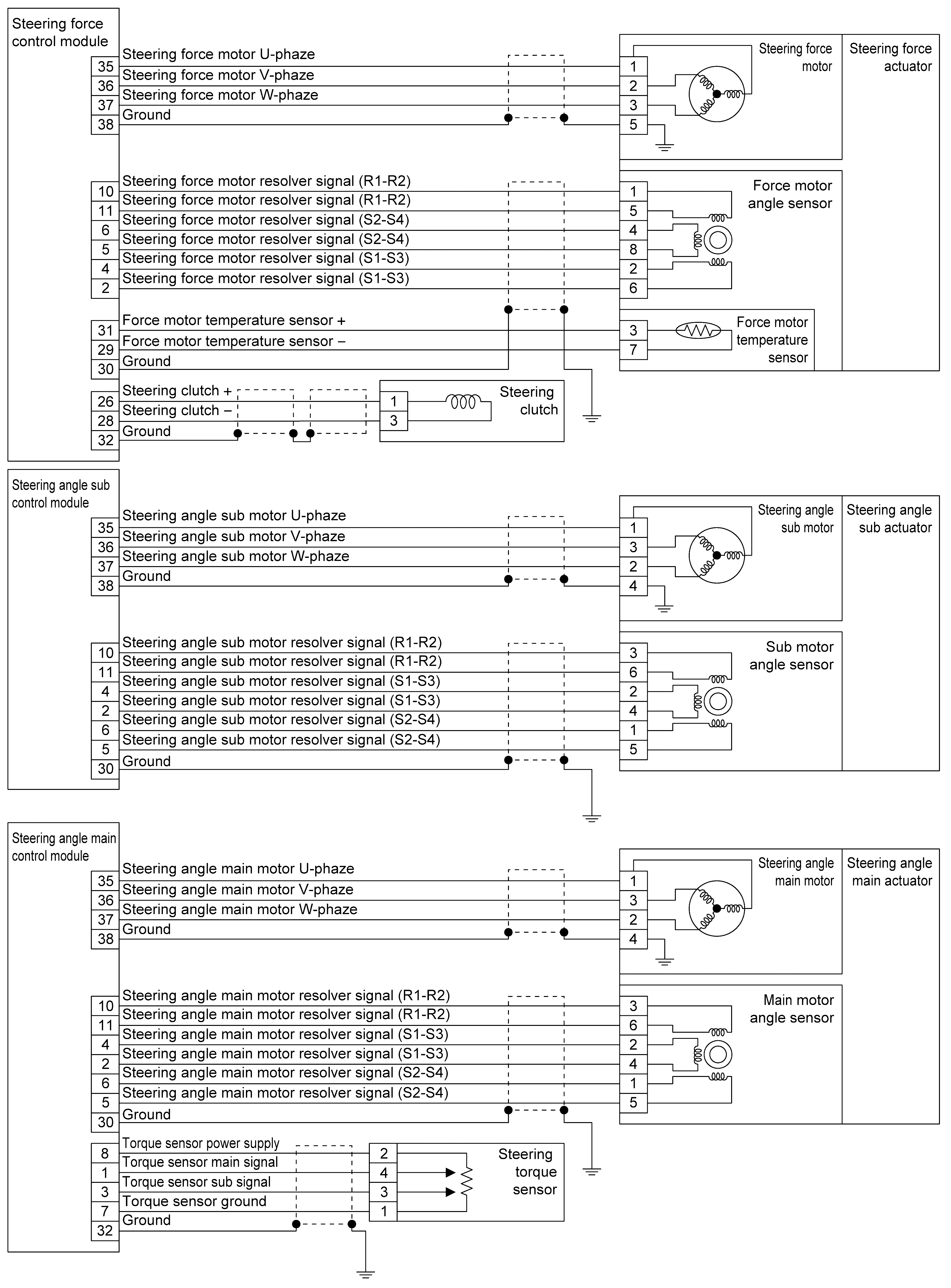

GNSILL0267138Courtesy of NISSAN NORTH AMERICA, INC.

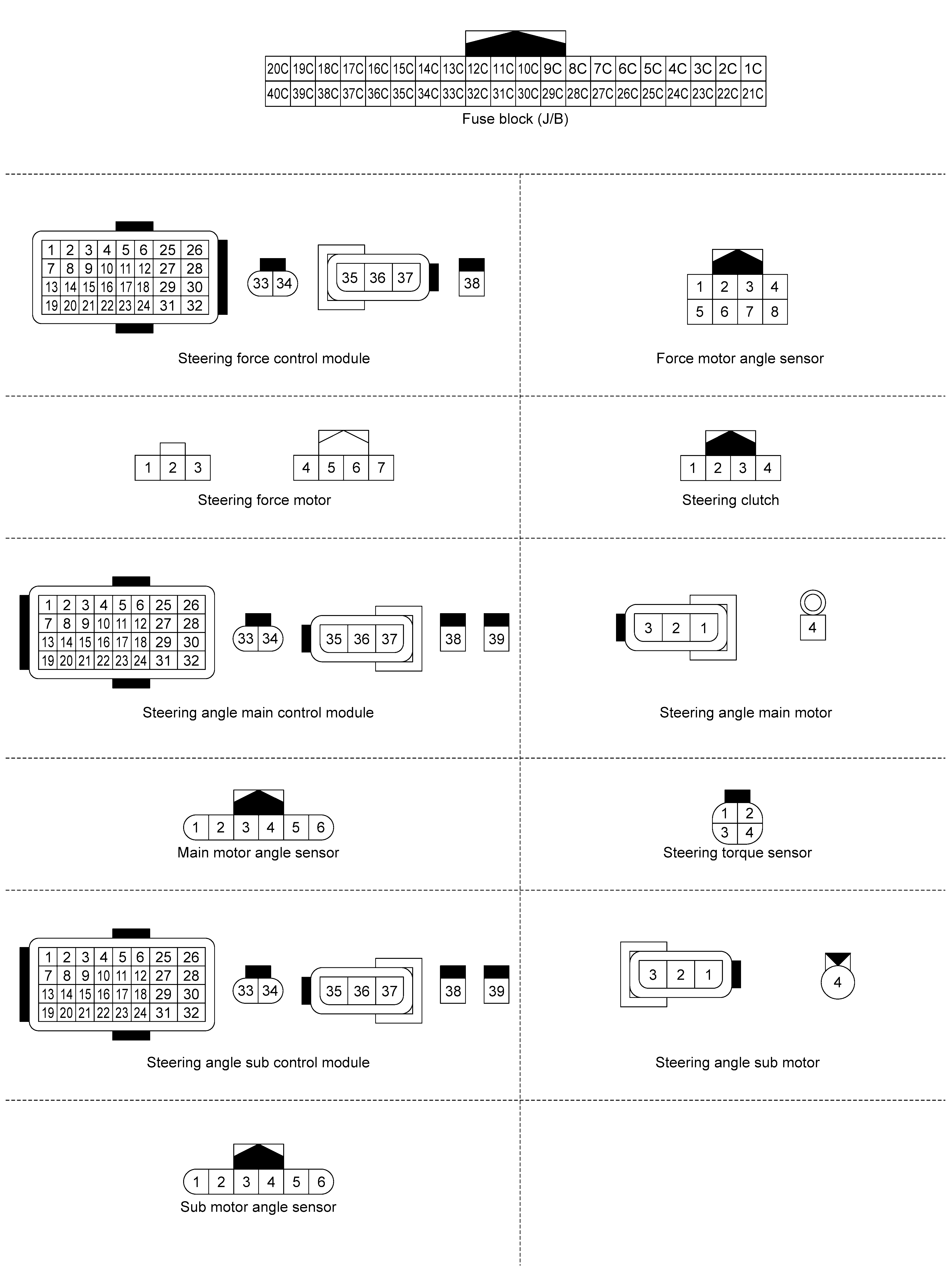

GNSILL0335877Courtesy of NISSAN NORTH AMERICA, INC.
