System Diagram

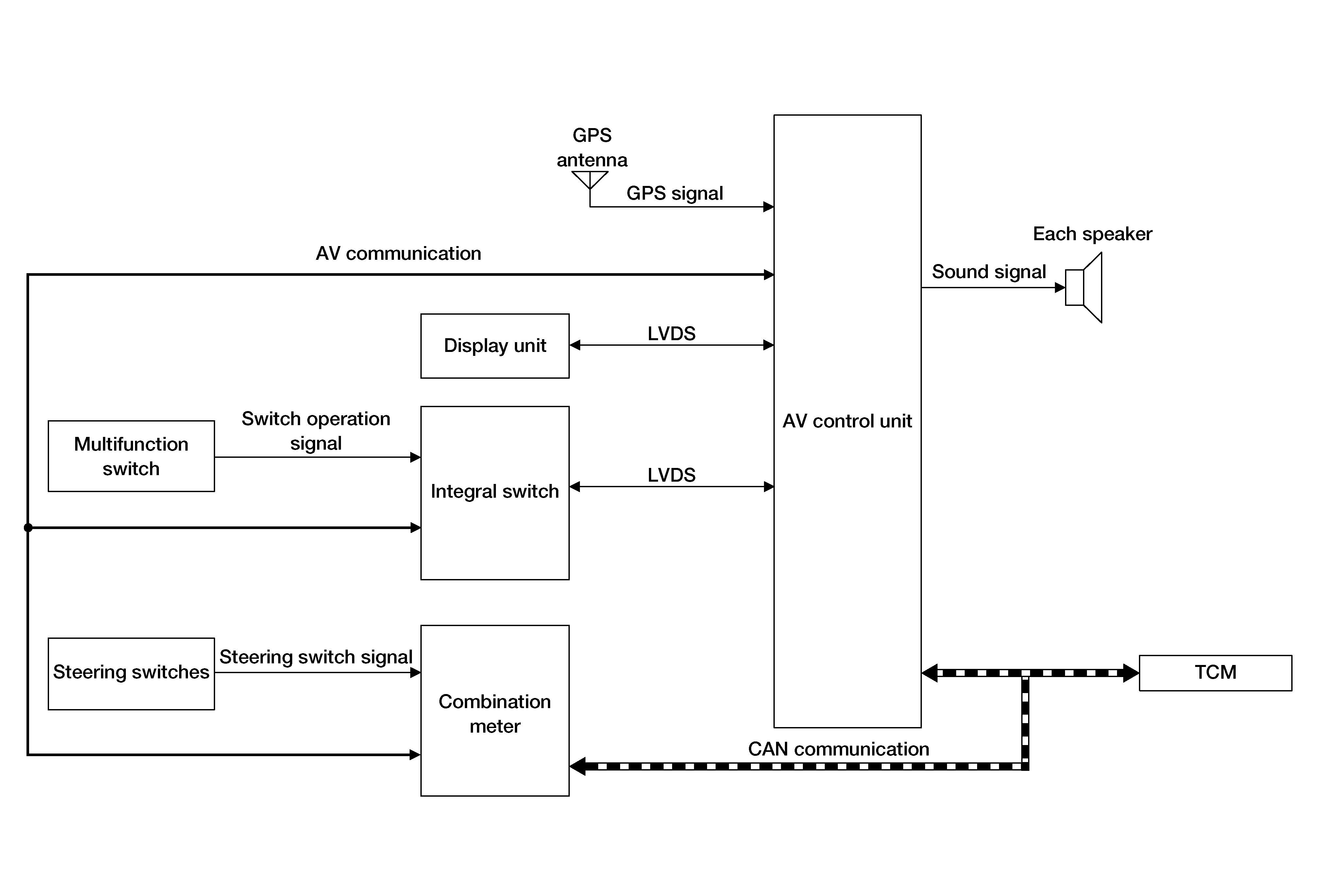

Without Bose Audio System
 Courtesy of NISSAN NORTH AMERICA, INC.
|

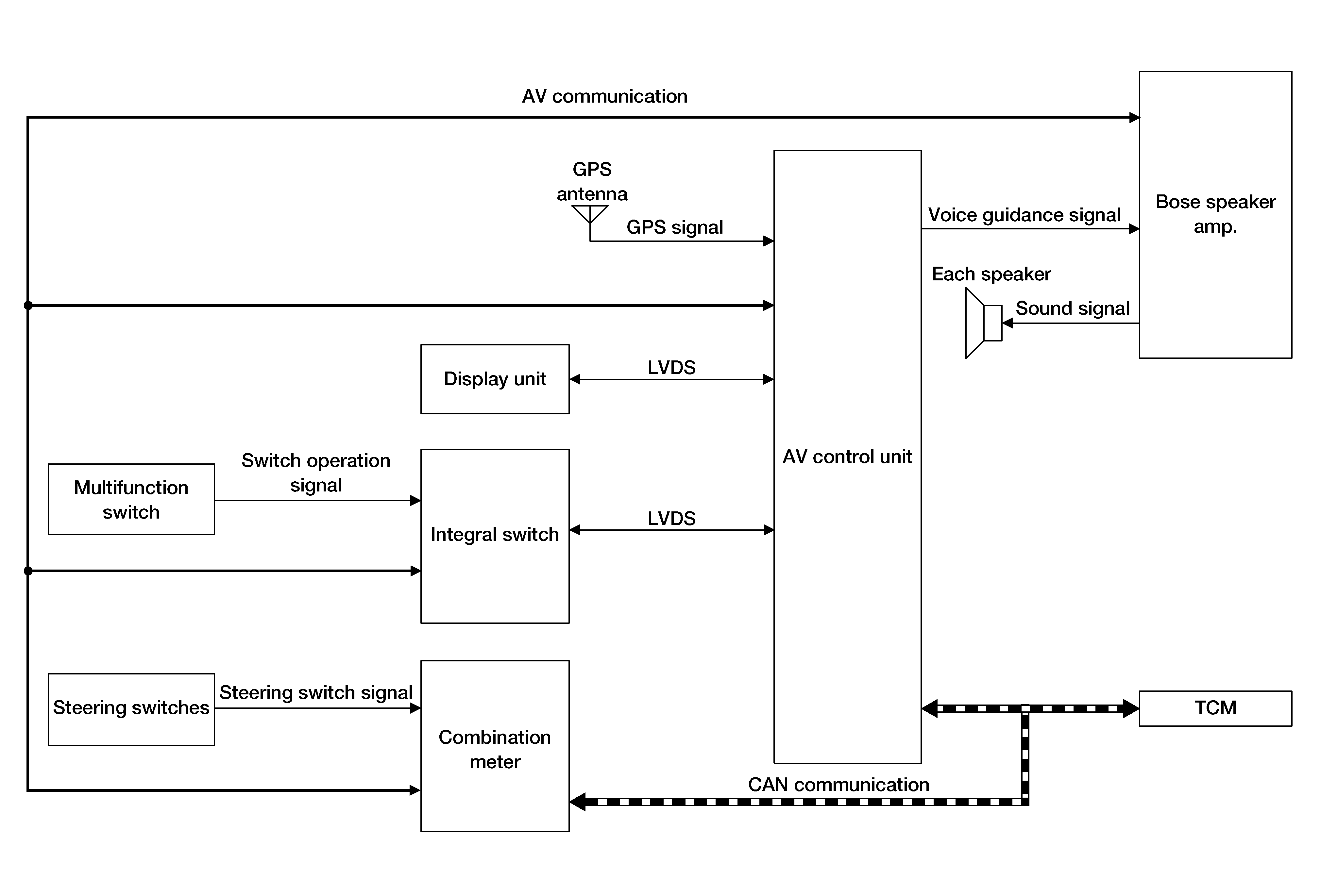

With Bose Audio System
 Courtesy of NISSAN NORTH AMERICA, INC.
|
AV Control Unit Input Signal (CAN Communication)
|
Transmit unit
|
Signal name
|
|
Combination meter
|
Parking brake switch signal
|
|
TCM
|
Shift position signal (Reverse signal)
|
