Steering Column Length

Unit: mm (in)

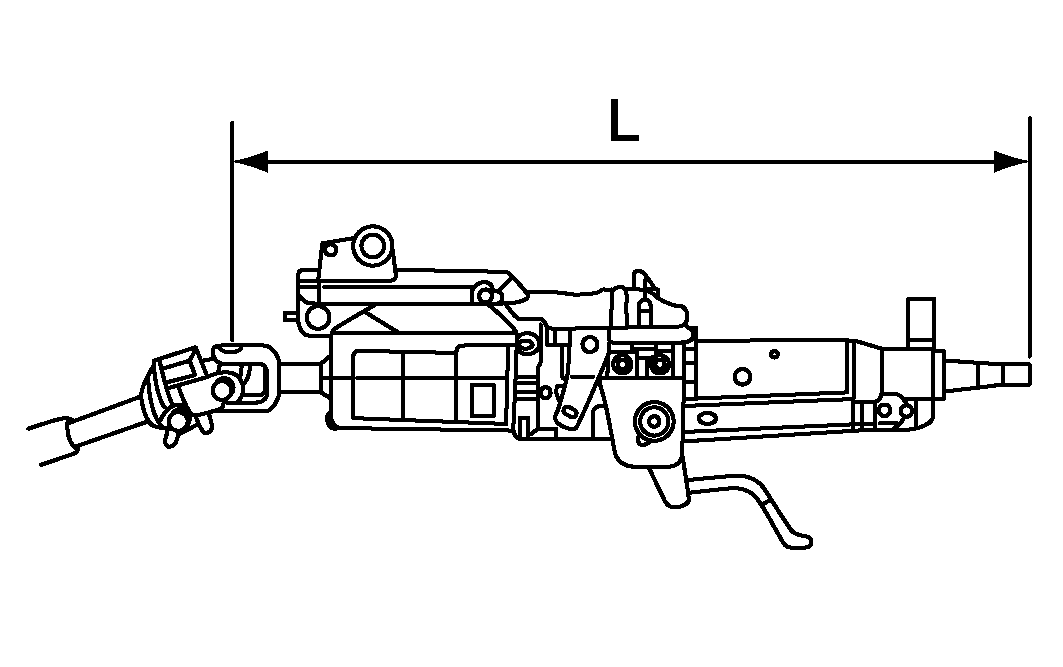

GNSDB118094Courtesy of NISSAN NORTH AMERICA, INC.

Steering column length (mechanical steering column)

Length (L)

528 (20.8)

Telescopic maximum

558 (22)

Telescopic minimum

506 (19.9)

Unit: mm (in)

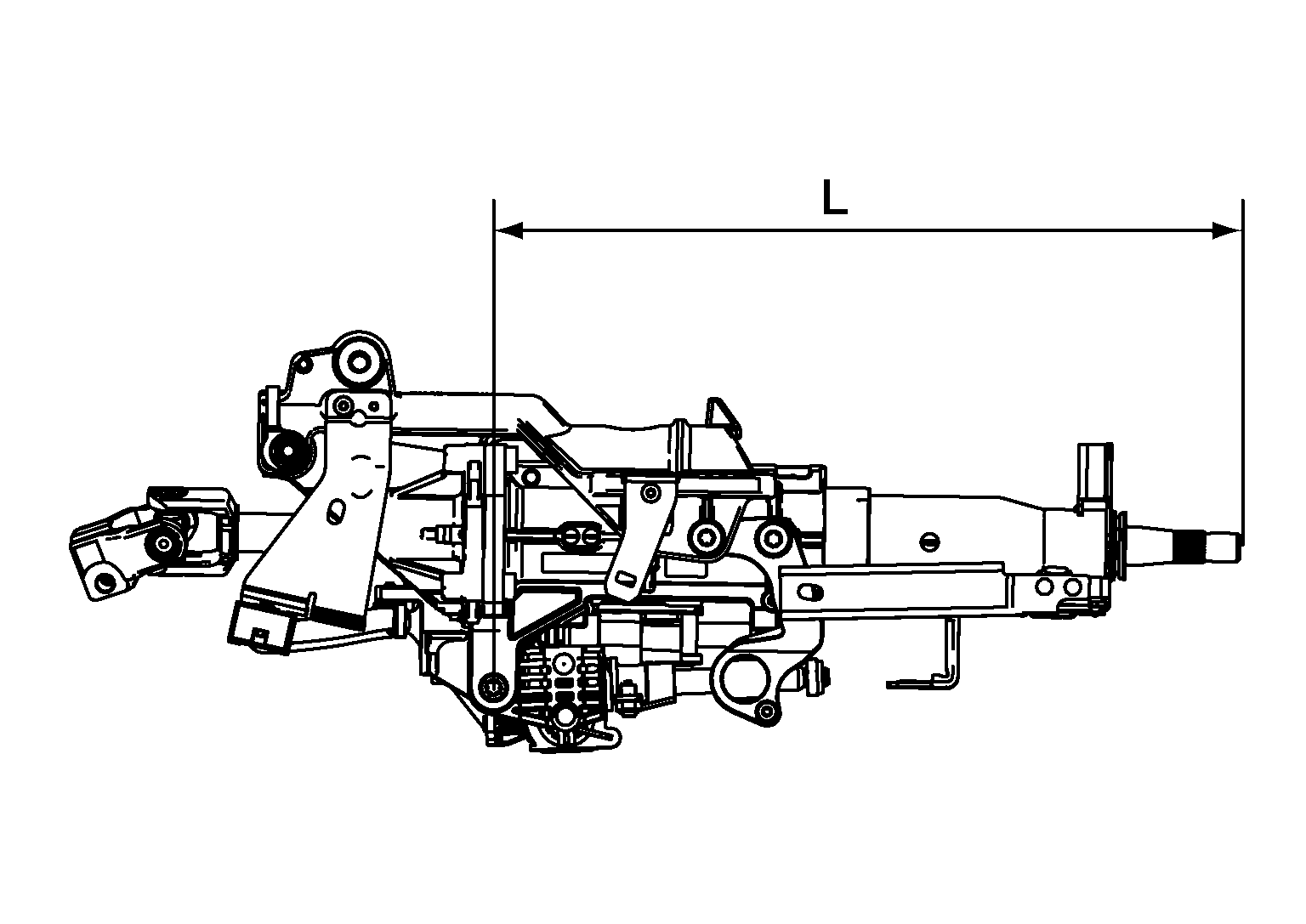

GNSALGIA0092Z-092Courtesy of NISSAN NORTH AMERICA, INC.

Steering column length (electric steering column)

Length (L)

528 (20.8)

Telescopic maximum

558 (22)

Telescopic minimum

506 (19.9)
