Exploded View

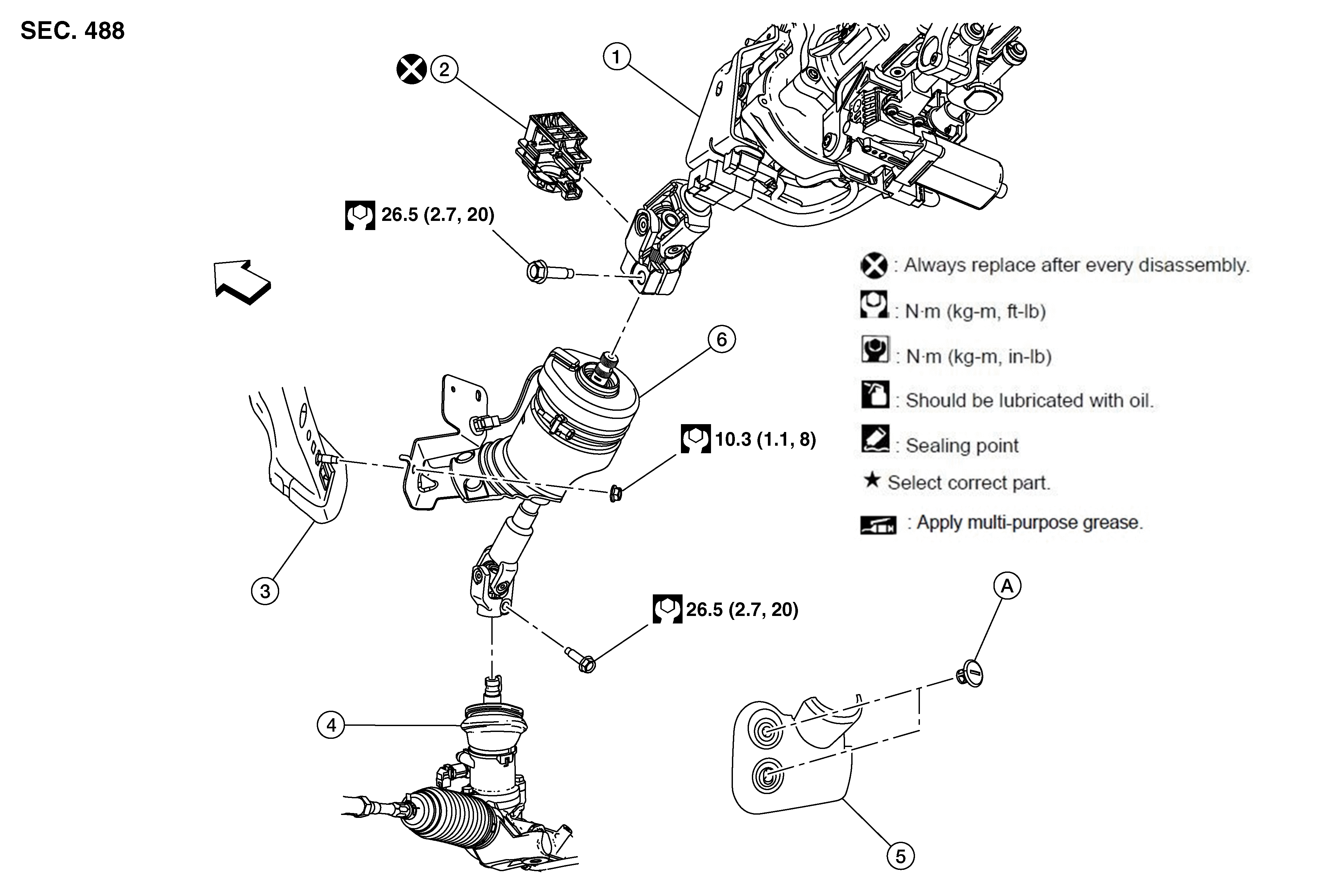

Fig 1: Lower Joint With Torque Specifications - Direct Adaptive Steering
GNSAWGIA0046Z-046Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Collar

3.

Dash panel

4.

Steering gear

5.

Lower joint cover

6.

Lower joint

A.

Clip

SYMBOL

Front
