System Diagram

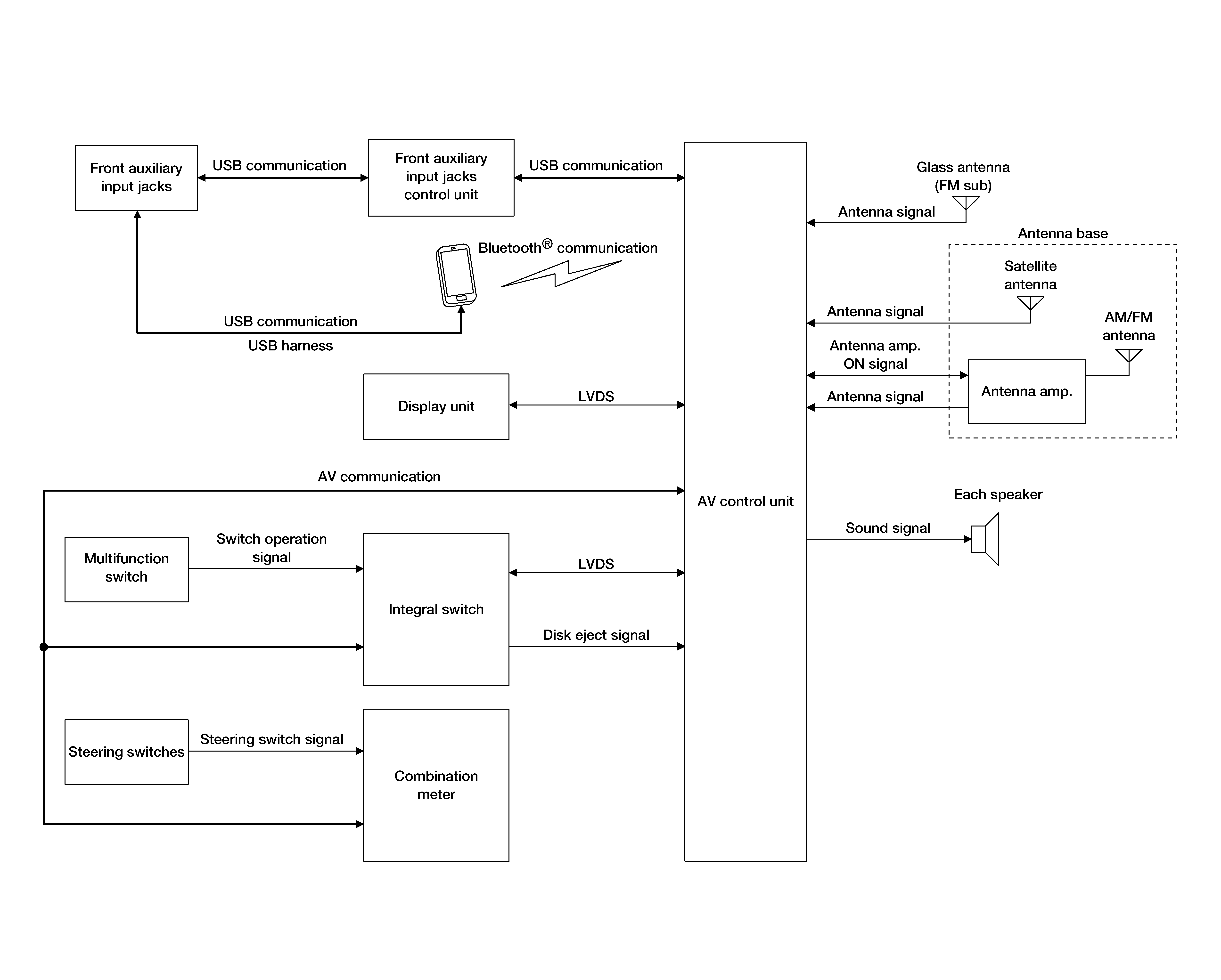

Without Bose Audio System
Courtesy of NISSAN NORTH AMERICA, INC.

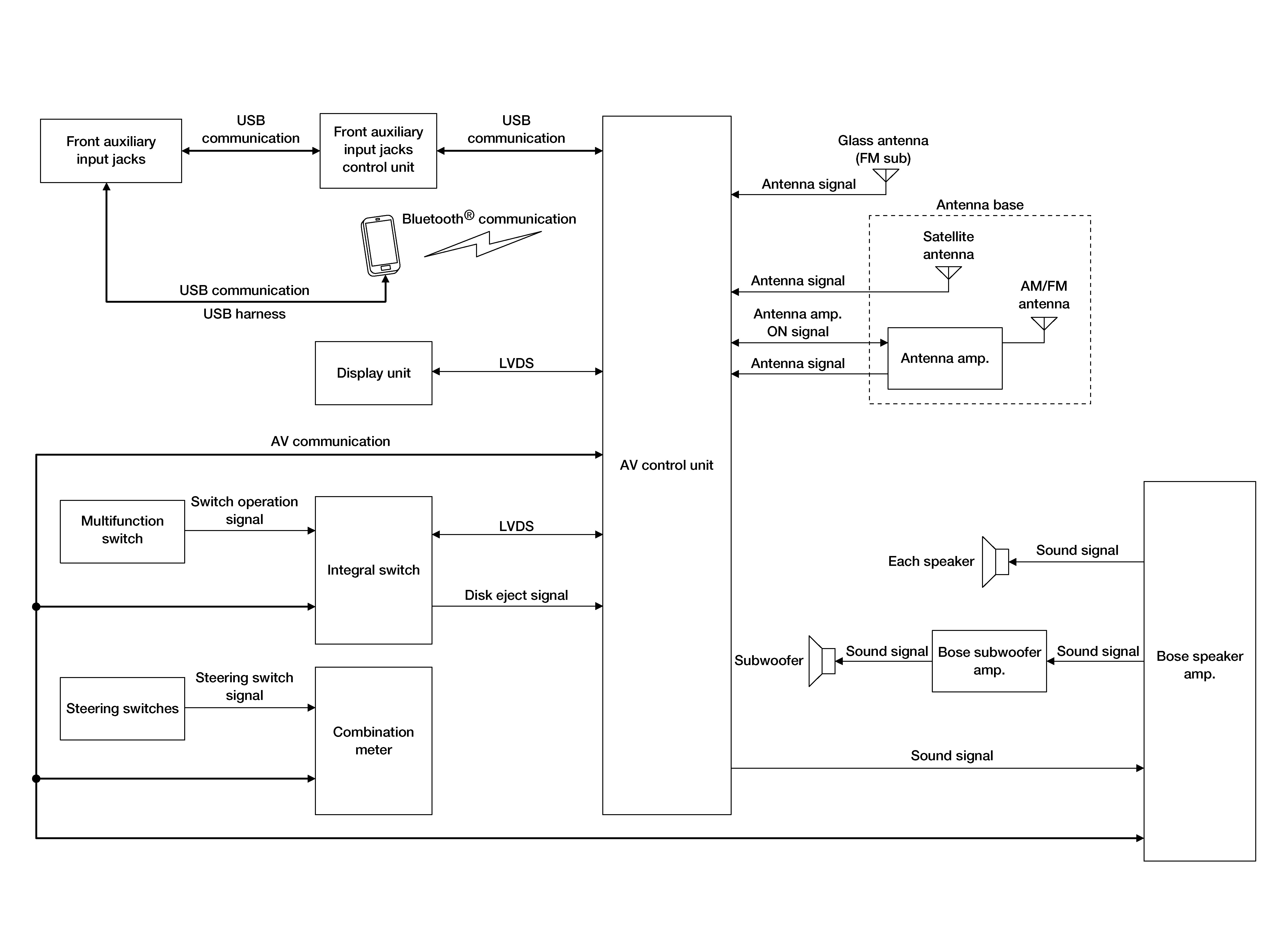

With Bose Audio System
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
