System Diagram

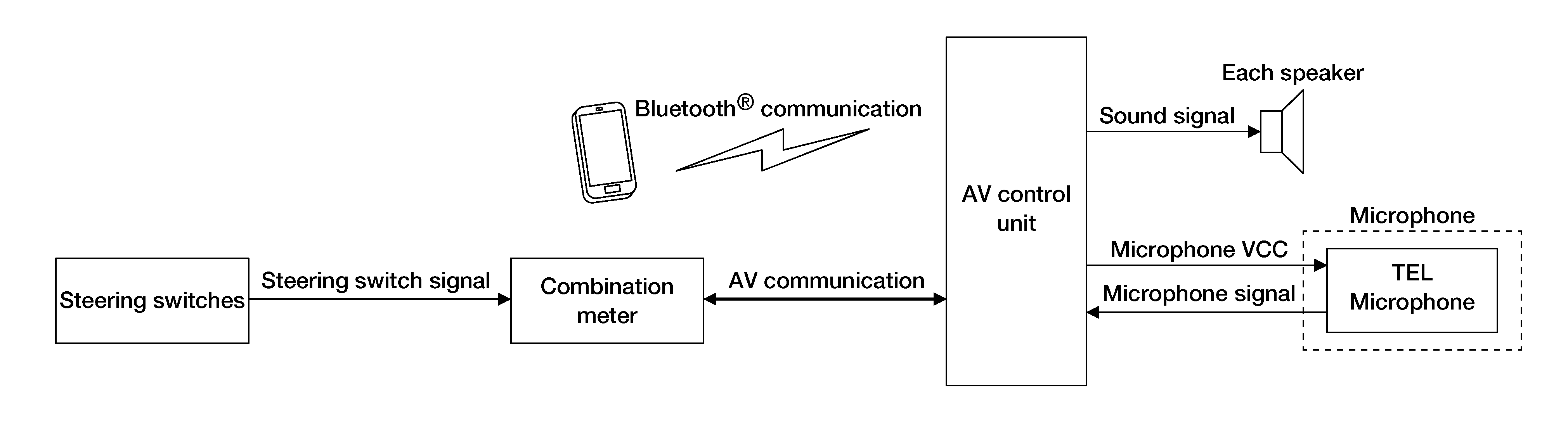

Without Telematics System

GNSAWNIA0389GB-389Courtesy of NISSAN NORTH AMERICA, INC.

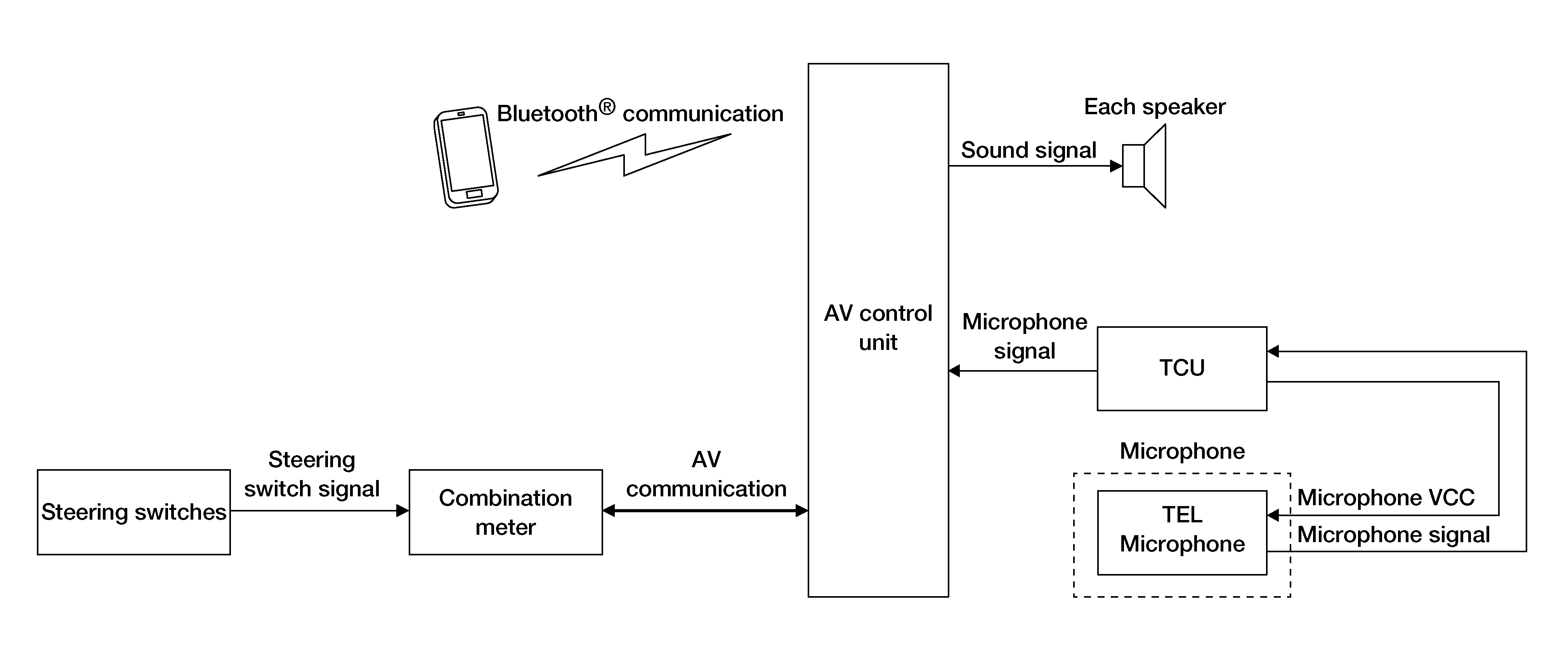

With Telematics System Without Bose Audio System

GNSAWNIA0390GB-390Courtesy of NISSAN NORTH AMERICA, INC.

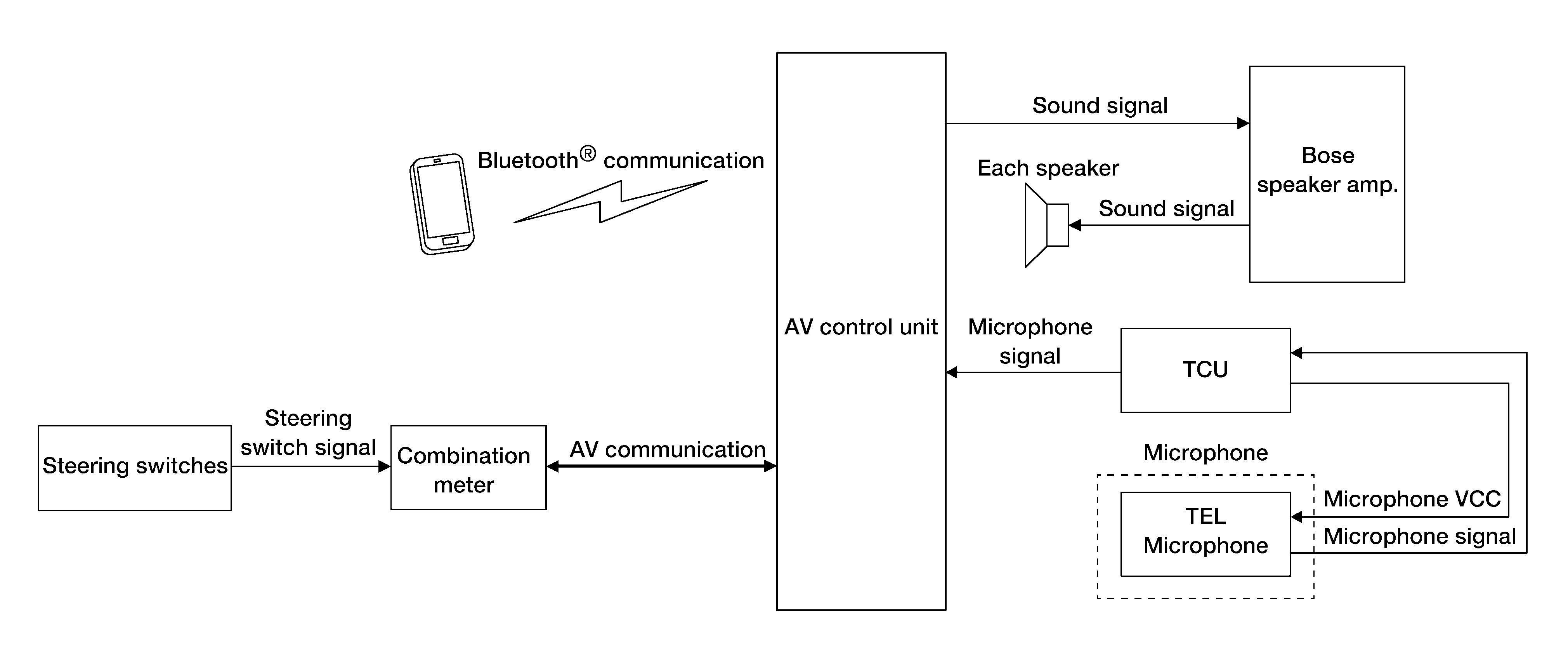

With Telematics System With Bose Audio System

G05938327Courtesy of NISSAN NORTH AMERICA, INC.
