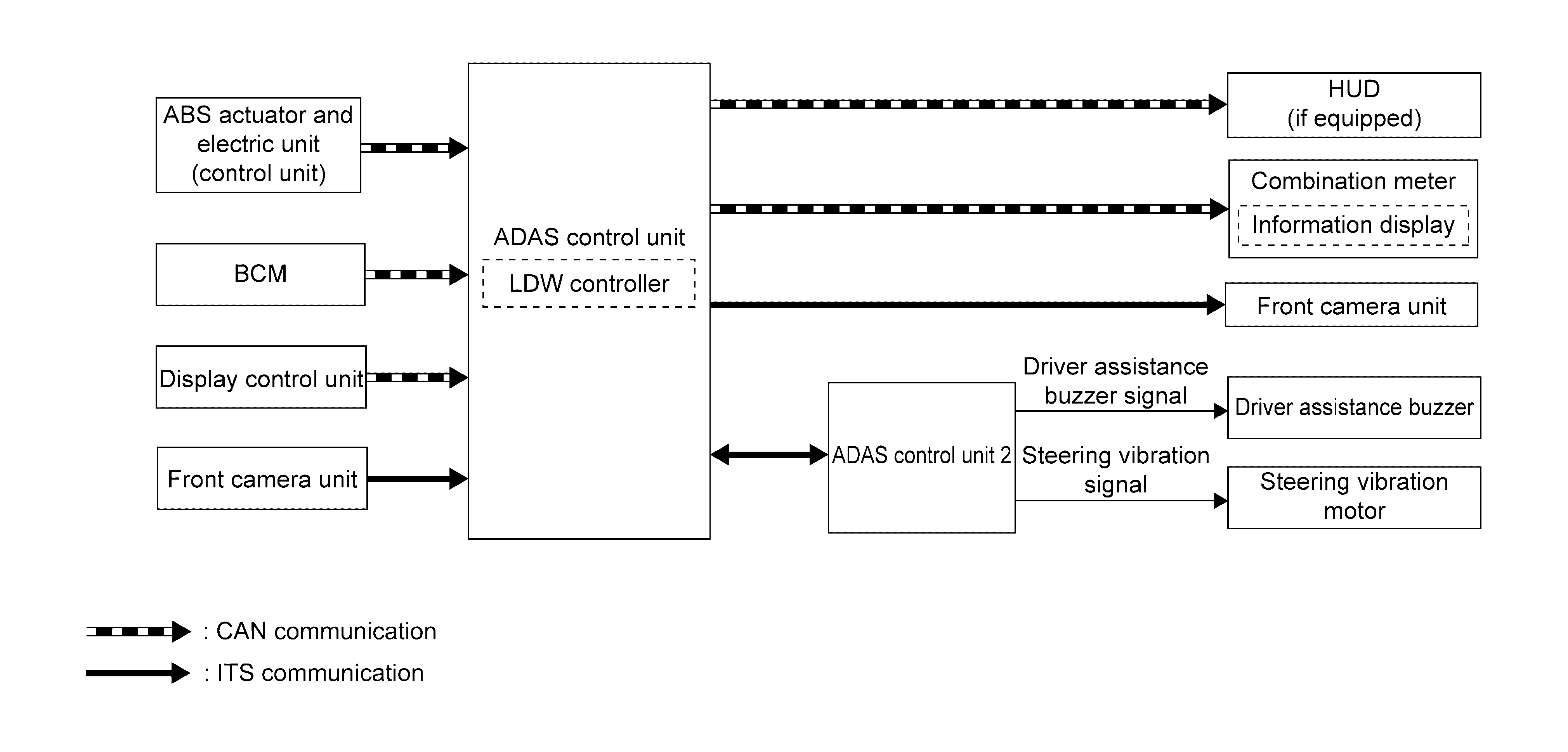

System Diagram

GNSILL0311861-861Courtesy of NISSAN NORTH AMERICA, INC.

Component

Description

ADAS control unit

Component Description

ADAS control unit 2

Component Description

BCM

System Description

ABS Actuator and Electric Unit (Control Unit)

Component Description

Combination meter

Component Description

Display control unit

Component Description

Front camera unit

Component Description
