Physical Values

Terminal (Wire color)		Description		Condition		Reference value (Approx.)
+	-	Signal name	Input/Output
2 (R)	13 (B)	Illumination signal	Input	Ignition switch ON Lighting switch 1ST position		12.0 V
				Ignition switch ON Lighting switch OFF		0 V
3 (LG)	--	AV communication low	--	--		--
4 (SB)	--	AV communication high	--	--		--
7 (W)	16 (P)	Disk eject signal	Output	Ignition switch ON Pressing the eject switch		0 - 1.5 V
				Ignition switch ON Except for above		Battery voltage
8 (Y)	13 (B)	Hazard switch	Output	Hazard switch pressed		0 V
				Hazard switch released		Courtesy of NISSAN NORTH AMERICA, INC. 1.1 V
13 (B)	--	Ground	--	Ignition switch ON		0 V
14 (SB)	13 (B)	ACC power supply	Supply	Ignition switch ON		Battery voltage

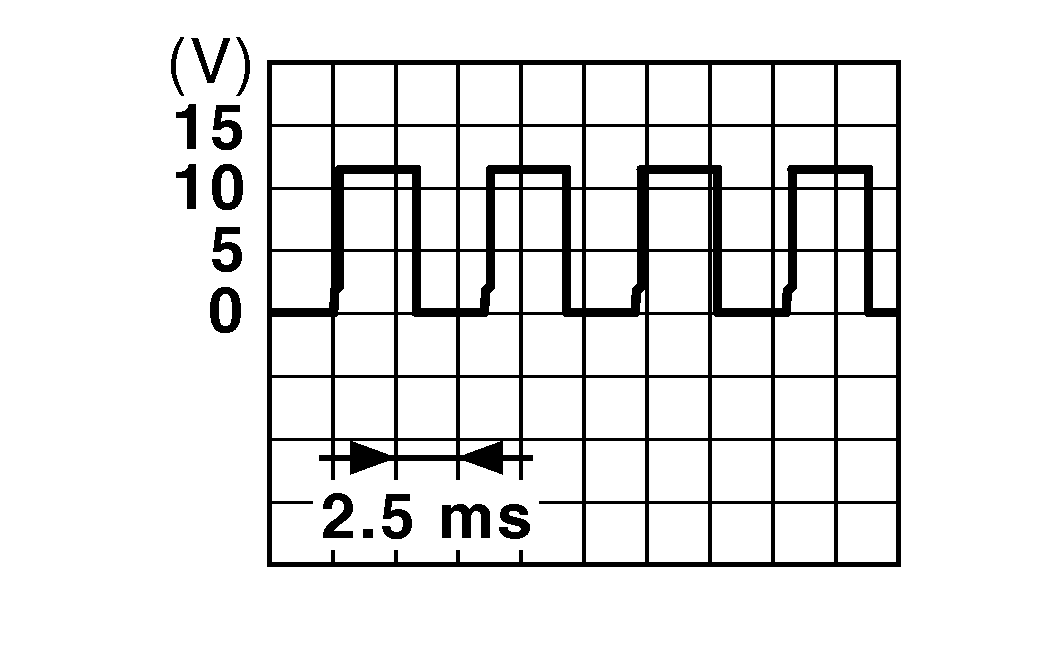

15 (B)	13 (B)	Illumination control signal	Input	Ignition switch ON Lighting switch 1ST position When meter illumination is minimum		Courtesy of NISSAN NORTH AMERICA, INC.

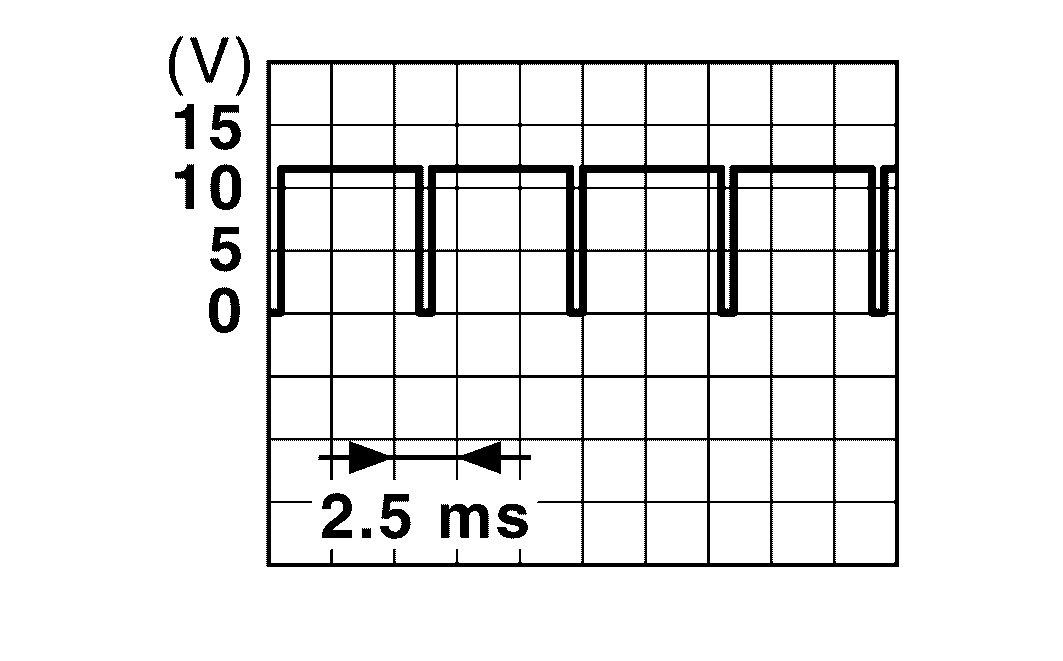

				Ignition switch ON Lighting switch 1ST position When meter illumination is step 11		Courtesy of NISSAN NORTH AMERICA, INC.
				Ignition switch ON Lighting switch 1ST position When meter illumination is maximum		0 V
19 (BR)	13 (B)	Camera switch signal	Input	Ignition switch ON Camera switch ON		0 - 2.5 V
				Ignition switch ON Camera switch OFF		3.0 V
20 (GR)	--	Airbag OFF indicator	--	--		--
24 (B)	--	Ground	--	Ignition switch ON		0 V
25 (BR)	26 (W)	Illumination signal (Multifunction switch)	Output	Ignition switch ON Lighting switch 1ST position		12.0 V
				Ignition switch ON Lighting switch OFF		0 V
26 (W)	--	Ground (multifunction switch)	--	Ignition switch ON		0 V
27 (R)	26 (W)	ENCD-B signal	Input	Ignition switch ON Multifunction switch: Rotate		2.0 - 4.3 V
28 (GR)	26 (W)	Push switch A signal	Input	Ignition switch ON Multifunction switch	OFF	4.3 - 4.9 V
					UP	2.8 - 3.3 V
					Down	1.6 - 2.0 V
					Back	0.4 - 0.55 V
29 (V)	26 (W)	Push switch C signal	Input	Ignition switch ON Multifunction switch	OFF	4.3 - 4.9 V
					OK	2.3 - 2.8 V
					MAP/DISP	0.4 - 0.55 V
31 (V)	26 (W)	Illumination control switch (multifunction switch)	Output	Ignition switch ON Lighting switch 1ST position When meter illumination is minimum		Courtesy of NISSAN NORTH AMERICA, INC.
				Ignition switch ON Lighting switch 1ST position When meter illumination is step 11		Courtesy of NISSAN NORTH AMERICA, INC.
				Ignition switch ON Lighting switch 1ST position When meter illumination is maximum		0 V
32 (W)	26 (W)	ENCD-A signal	Input	Ignition switch ON Multifunction switch: Rotate		2.0 - 4.3 V
33 (G)	26 (W)	Select switch signal	Input	Ignition switch ON		0.7 - 4.2 V
34 (O)	26 (W)	Push switch B signal	Input	Ignition switch ON Multifunction switch	OFF	4.3 - 4.9 V
					Left	2.8 - 3.3 V
					Right	1.6 - 2.0 V
					CAMERA/DAY NIGHT	0.4 - 0.55 V
35 (B)	--	Shield	--	--		--
36 (L)	26 (W)	L/R detection signal	Input	Ignition switch ON		0.7 - 4.2 V
39 (L)	--	LVDS (+)	Input/output	--		--
40 (R)	--	LVDS (-)	Input/output	--		--
41 Shield	--	LVDS shield	--	--		--
