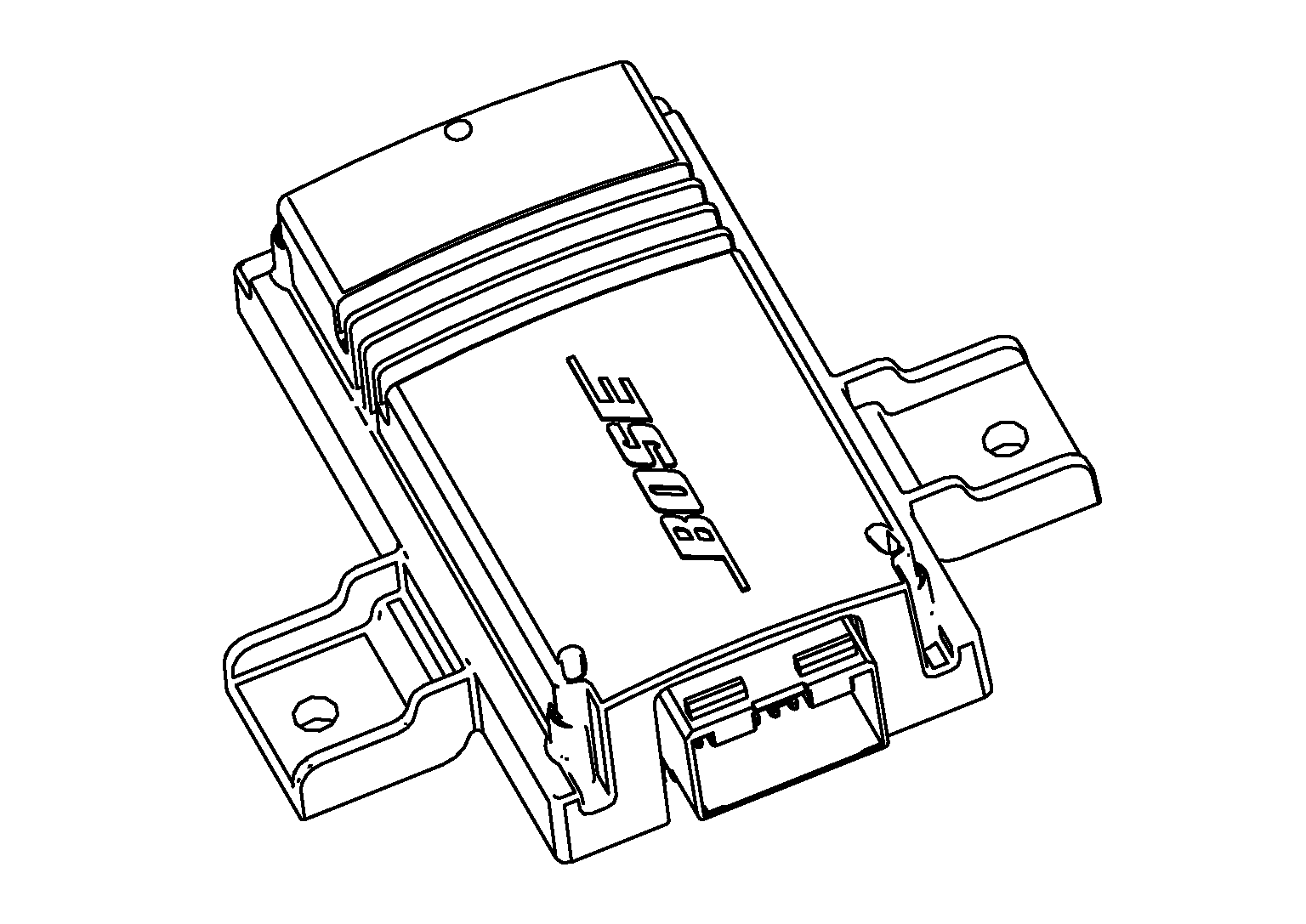

Bose Subwoofer Amp.
Bose subwoofer amp. is located in the cargo compartment behind the luggage side finisher (RH).
Courtesy of NISSAN NORTH AMERICA, INC.
Bose speaker amp. receives sound signals from AV control unit and outputs the sound signals to Bose subwoofer amp.
Bose subwoofer amp. outputs the sound signals to subwoofer.
Courtesy of NISSAN NORTH AMERICA, INC.
