Warning Lamp And Automatic Cancellation Display

Condition		Description	Display on ICC system display

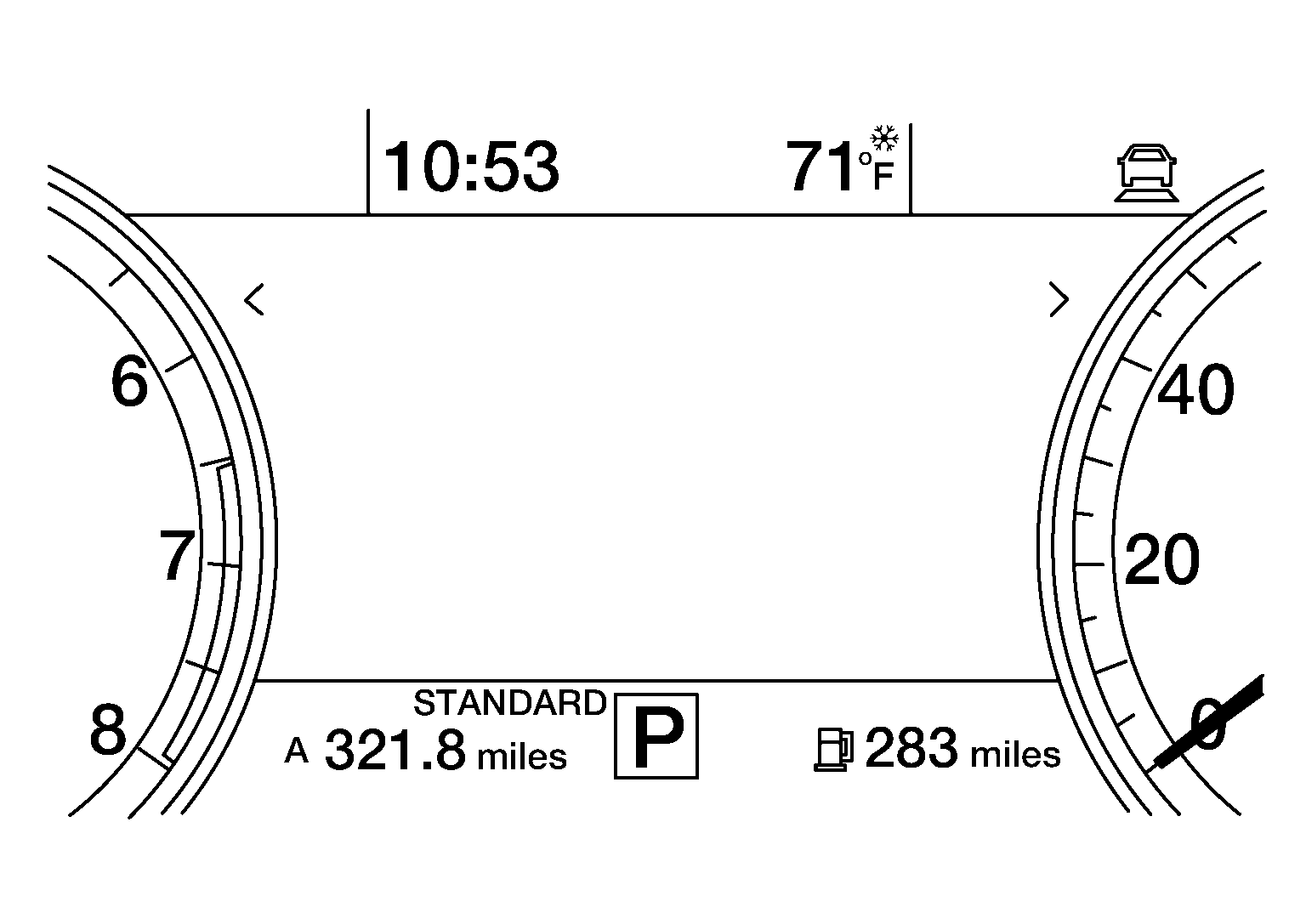

Automatic cancellation display	When brake pedal is depressed When CANCEL switch is pressed When a vehicle ahead is not detected below the speed of 25 km/h (15 MPH) When the system judges the vehicle is at standstill When the selector lever is not in "D" position or manual mode When the parking brake is applied	A chime sounds and the control is automatically canceled. NOTE: The system will be in a standby, after the control is automatically canceled. A chime sounds when the control is automatically canceled, except when brake pedal is depressed or when CANCEL switch is pressed.	Courtesy of NISSAN NORTH AMERICA, INC.
Warning display	When the VDC is turned OFF When the VDC or ABS (including the TCS) operates When a wheel slips	A chime sounds and the control is automatically canceled. NOTE: When the conditions listed are no longer present, turn the system OFF using the MAIN switch. Turn the ICC system back on to use the system.	Example: When the front bumper near the distance sensor is blocked or dirty, making it impossible to detect a vehicle ahead Courtesy of NISSAN NORTH AMERICA, INC.
	When the front bumper near the distance sensor is blocked or dirty, making it impossible to detect a vehicle ahead	A chime sounds and the control is automatically canceled. NOTE: Park the vehicle in a safe place, turn the engine OFF. Clean the front bumper near the distance sensor and then perform the settings again.

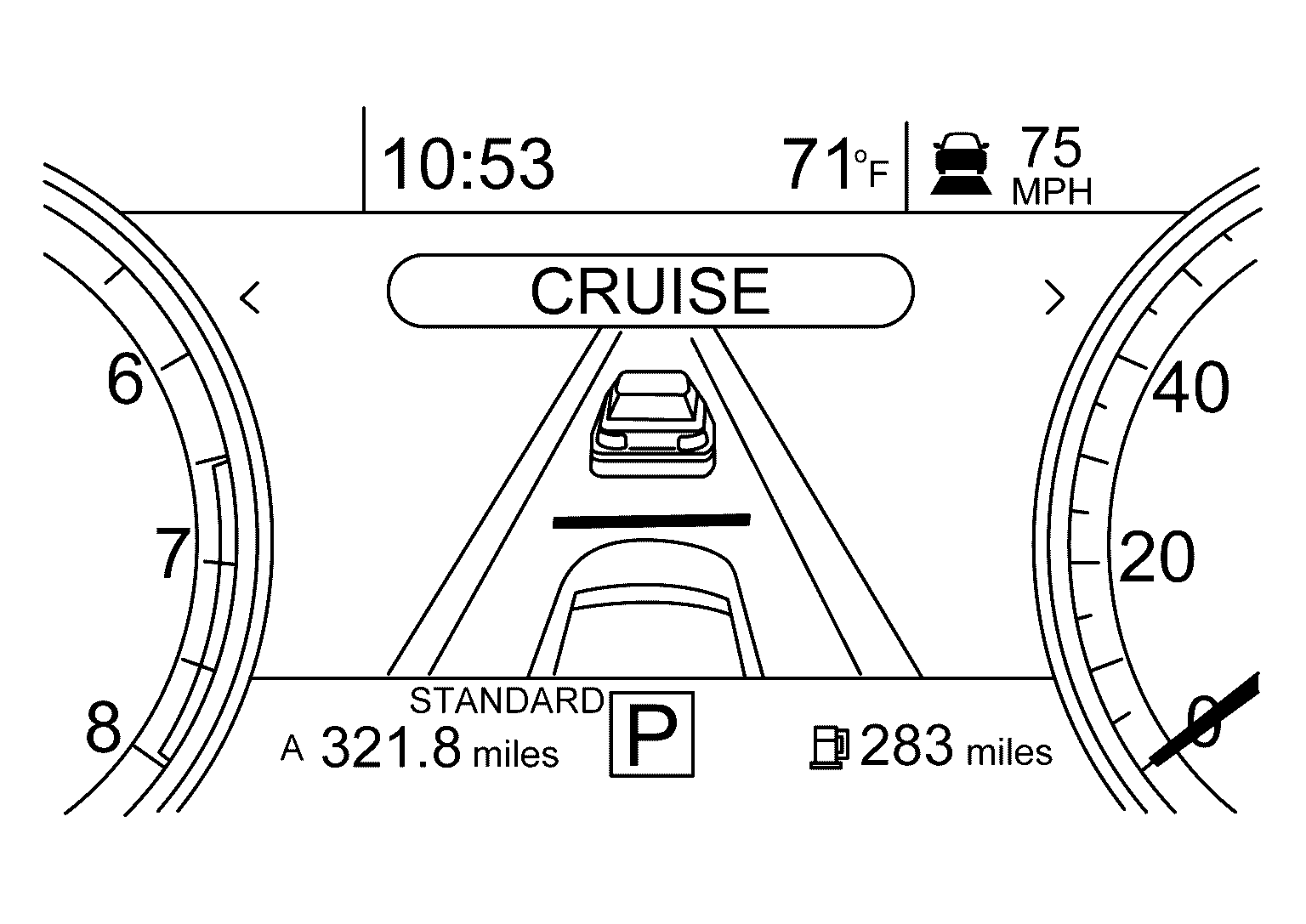

	When the ICC system is malfunctioning	A chime sounds and the control is automatically canceled. NOTE: Turn the engine OFF and restart engine. If there is no malfunction, it is possible to set the system.	Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: When the ICC system is automatically canceled, the cancellation condition can be displayed on "Work support" of CONSULT (ICC/ADAS).
