Display And Warning (DCA/LDP/Blind Spot Intervention)

System Display

The DCA/LDP/Blind Spot Intervention system operates when ON is selected with the integral switch.

Condition	Action	Display on combination meter	Buzzer
DCA/LDP/Blind Spot Intervention OFF (PFCW/LDW/BSW are OFF)	--	Courtesy of NISSAN NORTH AMERICA, INC.	--
DCA/LDP/Blind Spot Intervention ON	System ON	DCA system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.	--
		LDP system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
		Blind Spot Intervention system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
DCA is malfunction	The DCA system is automatically canceled	Yellow Courtesy of NISSAN NORTH AMERICA, INC.	Beep
		DCA system indicator : White Speaker icon : Yellow Dynamic driver assistance icon : Yellow Courtesy of NISSAN NORTH AMERICA, INC.
		Courtesy of NISSAN NORTH AMERICA, INC.
LDP is malfunction	The LDP system is automatically canceled.	Yellow Courtesy of NISSAN NORTH AMERICA, INC.
		LDP system indicator : White Speaker icon : Yellow Dynamic driver assistance icon : Yellow Courtesy of NISSAN NORTH AMERICA, INC.
		Courtesy of NISSAN NORTH AMERICA, INC.
Blind Spot Intervention is malfunction	The Blind Spot Intervention system is automatically canceled.	Yellow Courtesy of NISSAN NORTH AMERICA, INC.
		Blind Spot Intervention system indicator : White Speaker icon : Yellow Dynamic driver assistance icon : Yellow Courtesy of NISSAN NORTH AMERICA, INC.
		Courtesy of NISSAN NORTH AMERICA, INC.
When the ICC sensor is dirty, making it impossible to detect a vehicle ahead When driving on roads with limited road structures or buildings (for example, long bridges, deserts, snow fields, driving next to long walls)	A chime sounds and the control is automatically canceled. NOTE: Park the vehicle in a safe place, turn the engine OFF. Check to see if the ICC sensor area of the front bumper grille is blocked. If the ICC sensor area of the front bumper grille is blocked, remove the blocking material. Restart the engine and then perform the DCA system again.	DCA system indicator : White Speaker icon : Yellow (Blink) Dynamic driver assistance icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.

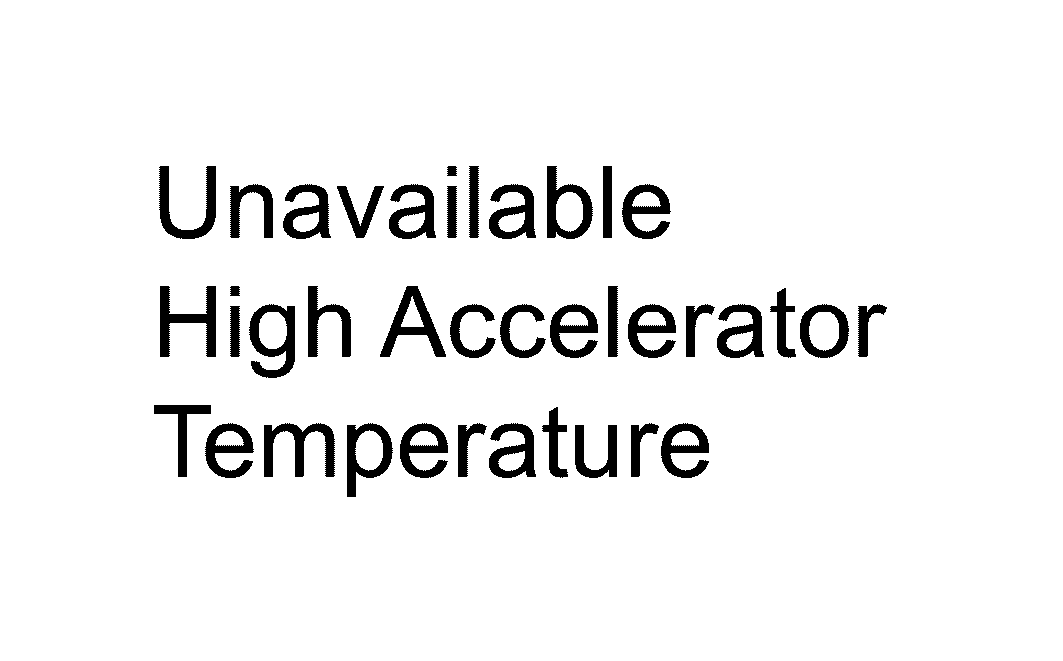

Accelerator pedal high temperature	The DCA system is automatically canceled. NOTE: The system operates if the dynamic driver assistance switch is turned OFF → ON after the condition improves	DCA system indicator : White Speaker icon : Yellow (Blink) Dynamic driver assistance icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.
Front camera unit high temperature	The LDP/Blind Spot Intervention system is automatically canceled. NOTE: The system operates if the warning system switch is turned OFF → ON after the condition improves	LDP system indicator : White Speaker icon : Yellow Dynamic driver assistance icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Beep
		Blind Spot Intervention system indicator : White Speaker icon : Yellow (Blink) Dynamic driver assistance icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.
		Courtesy of NISSAN NORTH AMERICA, INC.
Dirt around the side radar	The Blind Spot Intervention system is automatically canceled. NOTE: The system operates if the BSI system in the warning system switch is turned OFF → ON after the condition improves	Blind Spot Intervention system indicator : White Speaker icon : Yellow (Blink) Dynamic driver assistance icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.
When the VDC or ABS (including the TCS) operates When the VDC is turned OFF When the drive mode select switch is in SNOW position	The DCA/LDP/Blind Spot Intervention system is automatically canceled. NOTE: The system operates if the warning system switch is turned OFF → ON after the condition improves	Blind Spot Intervention system indicator : White Speaker icon : Yellow (Blink) Dynamic driver assistance icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.

Warning Operation

• DCA operation

  Approach Warning

  • If own vehicle comes closer to the vehicle ahead due to rapid deceleration of that vehicle or if another vehicle cuts in, the system warns the driver with the chime and DCA system display. Decelerate by depressing the brake pedal to maintain a safe vehicle distance if:
    • The vehicle ahead detection indicator blinks.
    • The chime sounds.
  • The warning chime may not sound in some cases when there is a short distance between vehicles. Some examples are:
    • When the vehicles are traveling at the same speed and the distance between vehicles is not changing
    • When the vehicle ahead is traveling faster and the distance between vehicles is increasing
    • When a vehicle cuts in near own vehicle
  • The warning chime will not sound when own vehicle approaches vehicles that are parked or moving slowly.

    Condition		Action	Display on information display	Buzzer
    DCA ON	Vehicle is absent	--	White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
    			DCA system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.

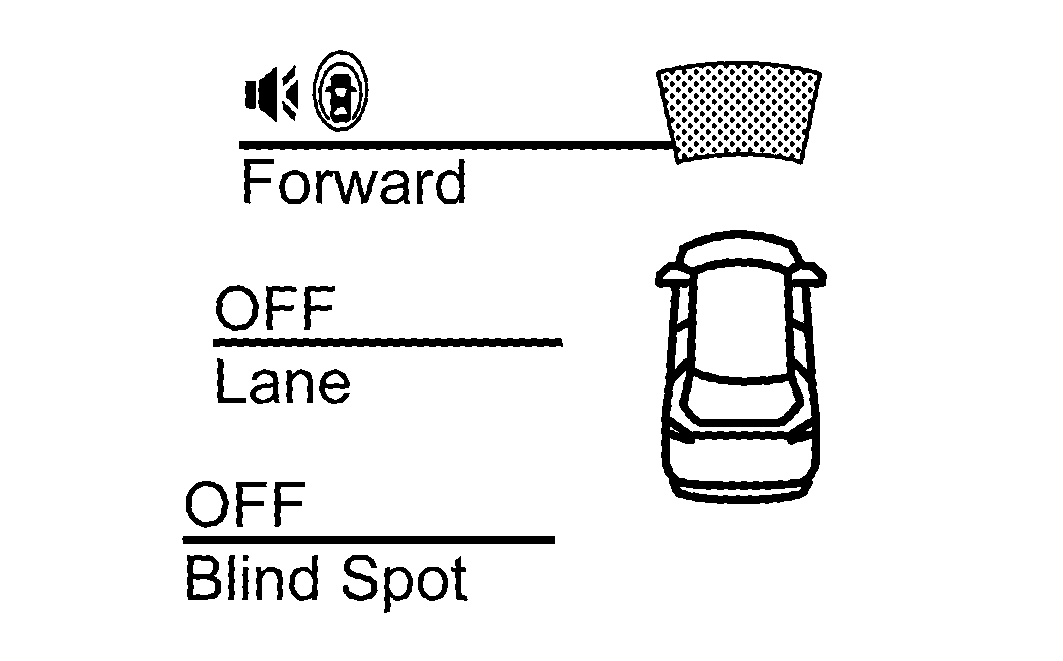

    	Vehicle is detected	--	Green Courtesy of NISSAN NORTH AMERICA, INC.	OFF
    			DCA system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.

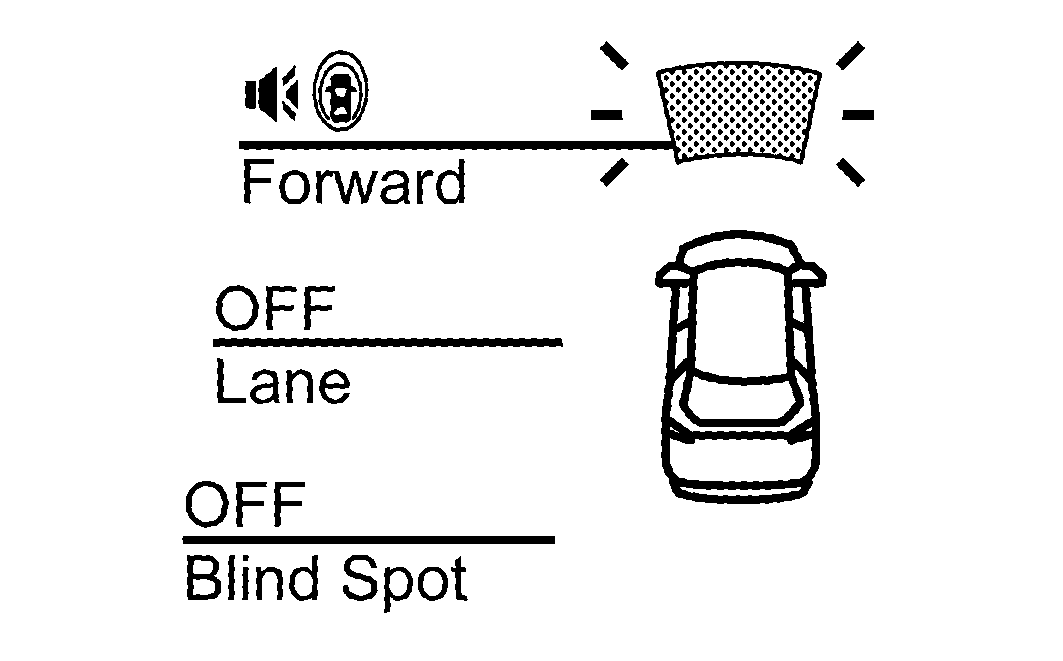

    	There is a possibility of a collision with the vehicle ahead	Accelerator pedal actuation Operates brake	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Beep
    			DCA system indicator : Yellow (Blink) Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.

• LDP operation

  Vehicle condition/ Driver's operation			Action
  Vehicle speed (Approx.) [km/h (MPH)]	Turn signal condition	Status of vehicle close to lane marker	Yawing control	Display on information display	Display on Head Up Display	Steering vibration
  Less than Approx. 60 km/h (37 MPH)	--	Close to lane marker	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	--	OFF

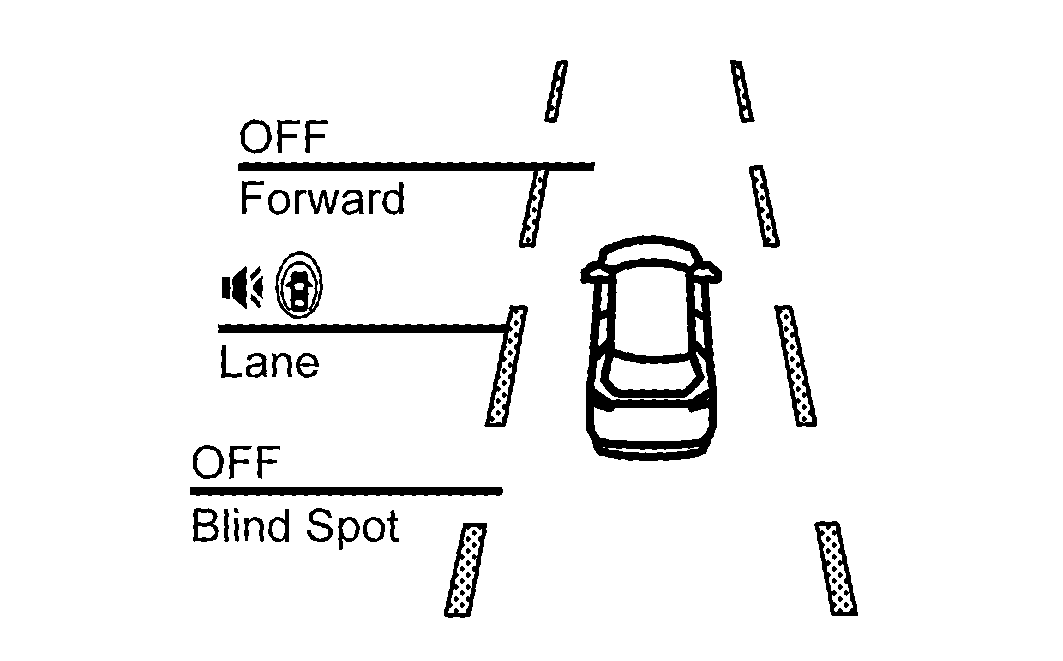

  				LDP system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
  Approx. 60 km/h (37 MPH) or more	Turn signal OFF Turn signal ON (Opposite to the deviate side)	Close to lane marker	ON	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	ON

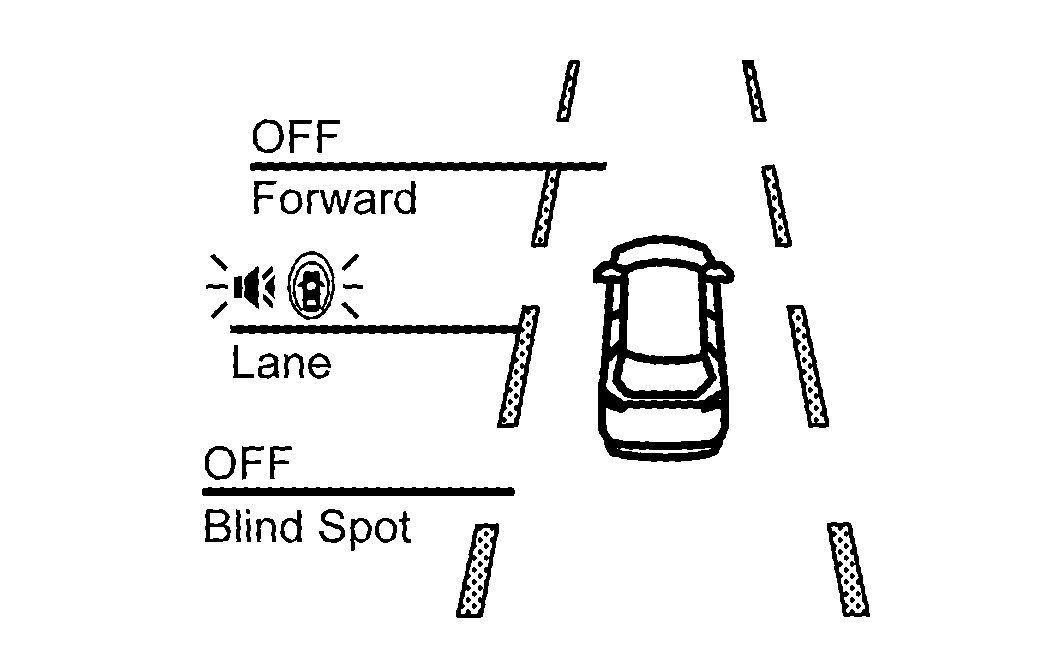

  				LDP system indicator : Yellow (Blink) Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
  	Turn signal ON (Deviate side)	Close to lane marker	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	--	OFF
  				LDP system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
  	Turn signal OFF Turn signal ON (Opposite to the deviate side)	Close to lane marker with soft braking	OFF	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	--	ON
  				LDP system indicator : Yellow (Blink) Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.

  NOTE: After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches approximately 60 km/h (37 MPH). Refer to System Description

• Blind Spot Intervention operation

  Vehicle condition/ Driver's operation			Action
  Vehicle speed (Approx.) [km/h (MPH)]	Status of vehicle detection within detection area	Status of approach to adjacent lane	Indication on the Blind Spot Intervention indicator	Yaw control	Indication on the combination meter	Buzzer
  Less than approx. 60 (37)	--	--	OFF	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	OFF

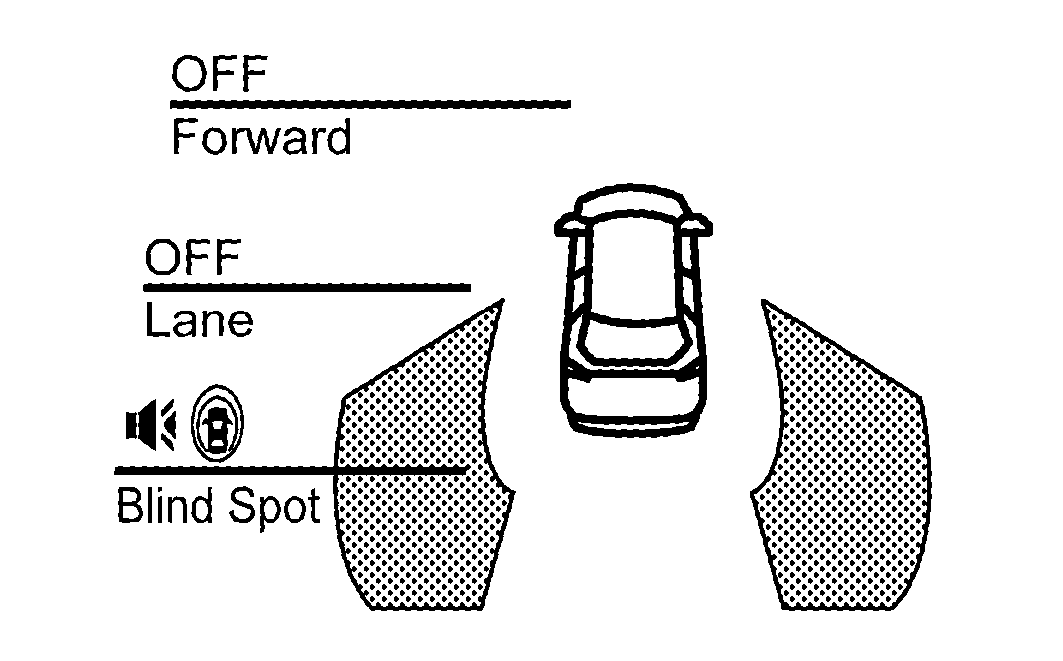

  					Blind Spot Intervention system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
  Approx. 60 (37) or more	Vehicle is not detected	--	OFF	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
  					Blind Spot Intervention system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
  	Vehicle is detected	Not approaching	ON	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
  					Blind Spot Intervention system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.

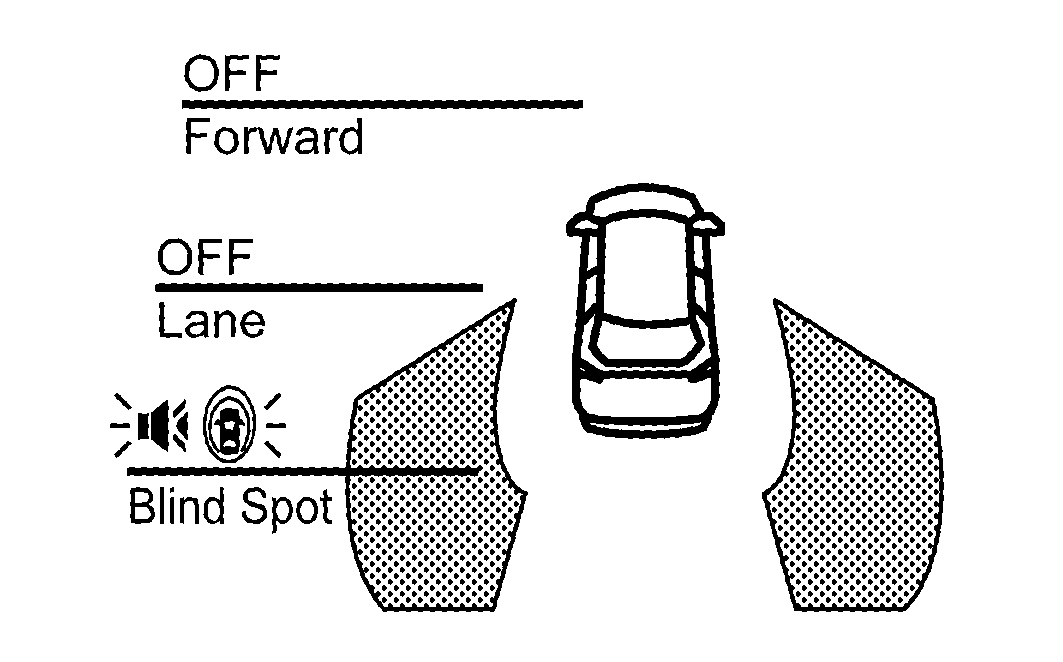

  	Vehicle is detected	Approaching	Blink	ON	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Short continuous beeps

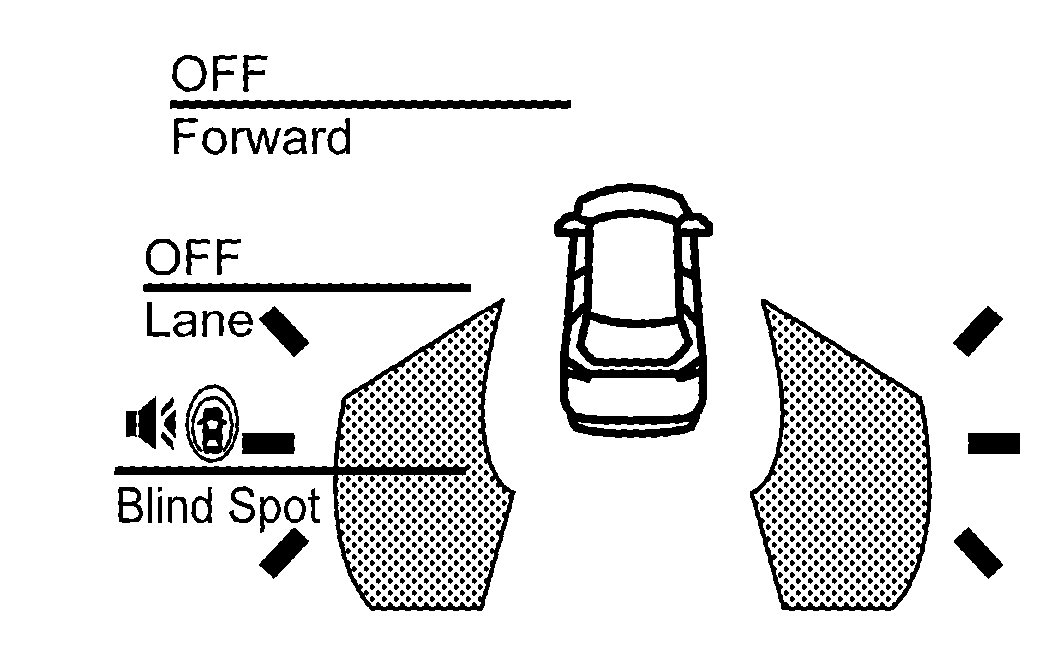

  					Blind Spot Intervention system indicator : Yellow (Blink) Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.

  NOTE:

  • If vehicle speed exceeds approximately 32 km/h (20 MPH), BSW function operates until the vehicle speed becomes lower than approximately 29 km/h (18 MPH).
  • Time shown in the figure is approximate time.
  • Always Blind Spot Intervention system operates together with BSW system. Whenever Blind Spot Intervention system is turned ON in the integral switch, BSW system also be turned on even if the BSW system is turned off.
