Display And Warning (PFCW/LDW/BSW)

System Display

The PFCW/LDW/BSW systems operate when ON is selected with the integral switch.

Condition	Action	Display on information display

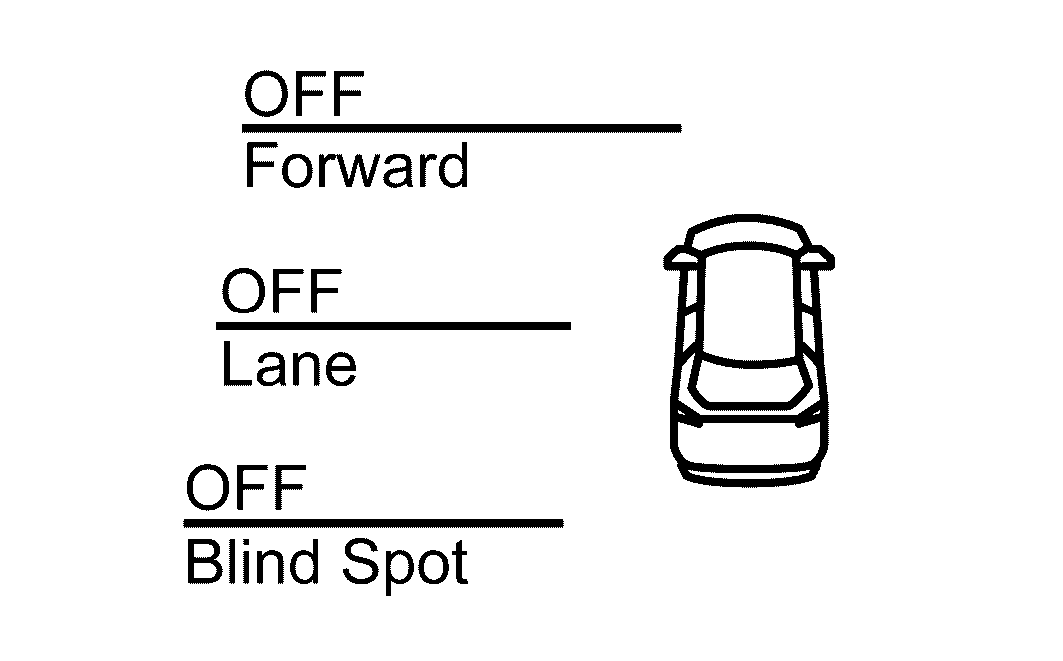

PFCW/LDW/BSW OFF	--	Courtesy of NISSAN NORTH AMERICA, INC.

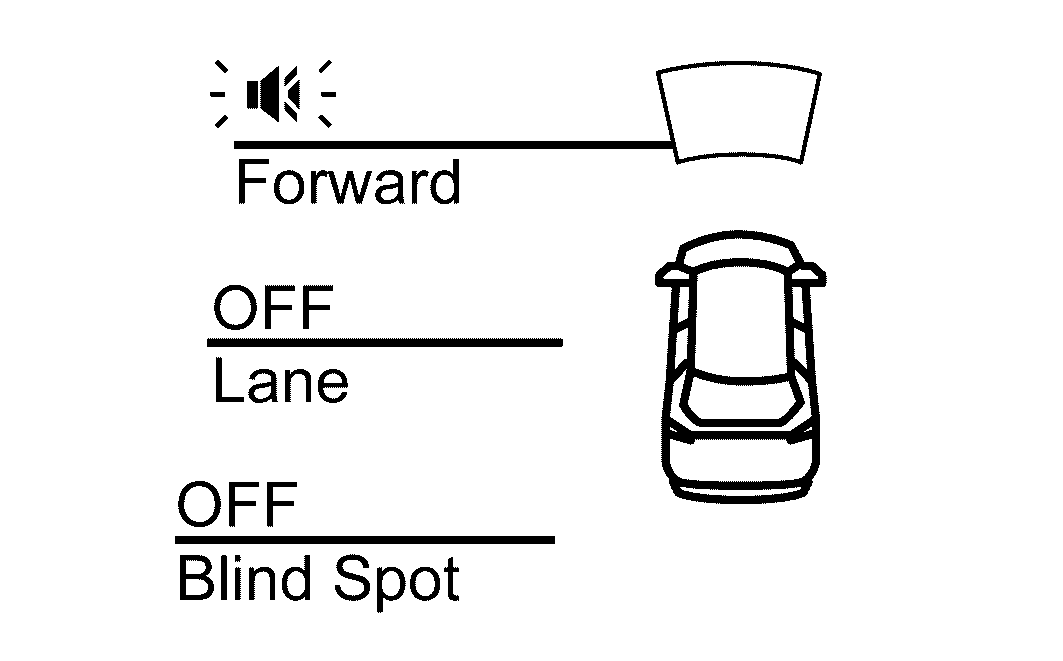

PFCW/LDW/BSW ON	System ON	PFCW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.

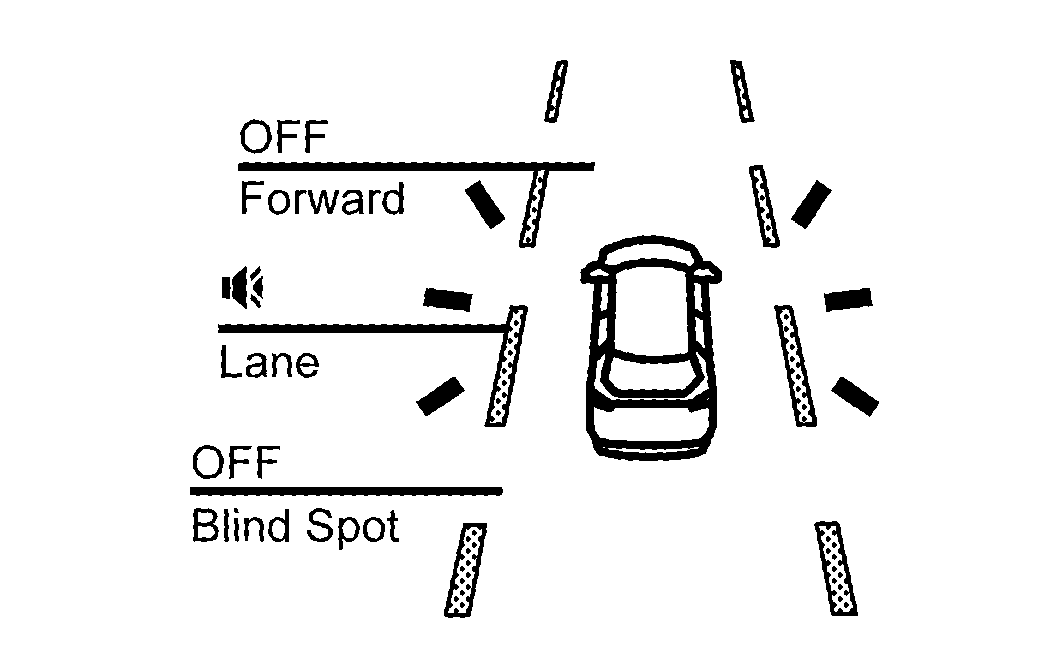

		LDW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.

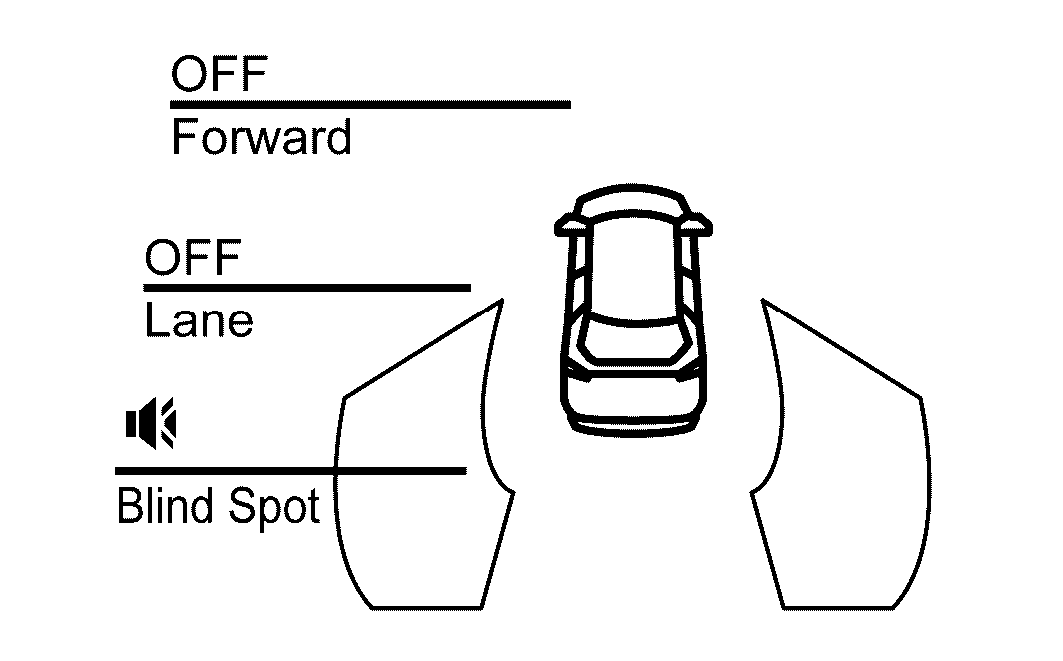

		BSW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.
PFCW ON (FEB ON)	System ON	PFCW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.
LDW ON	System ON	LDW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.
BSW ON	System ON	BSW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.

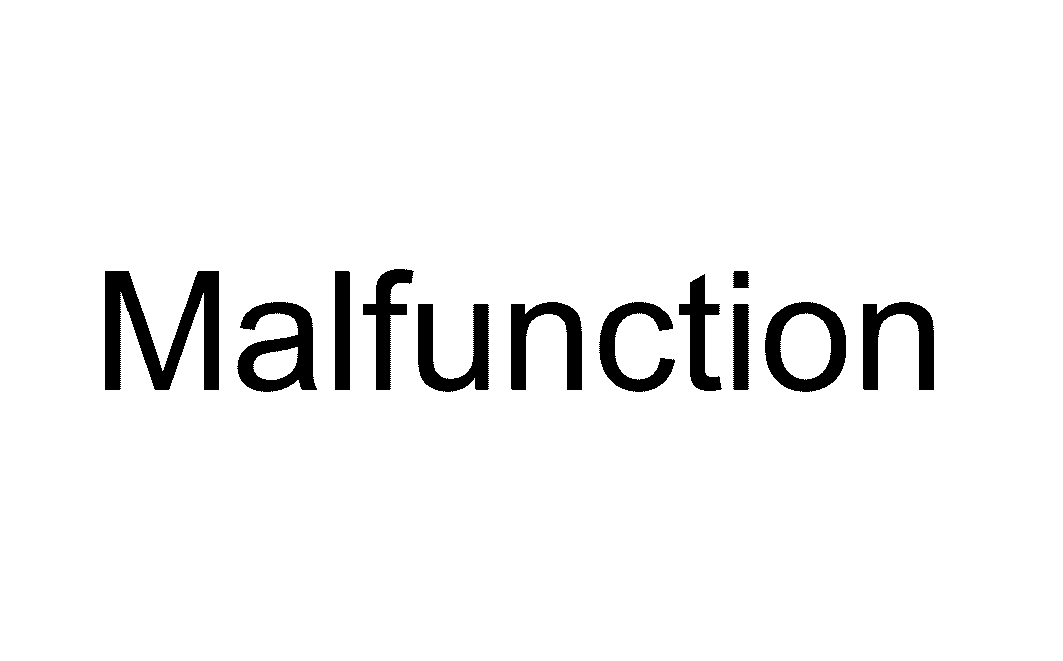

PFCW/LDW/BSW are malfunction	System malfunction	PFCW system indicator : White Speaker icon : Yellow Courtesy of NISSAN NORTH AMERICA, INC.
		LDW system indicator : White Speaker icon : Yellow Courtesy of NISSAN NORTH AMERICA, INC.

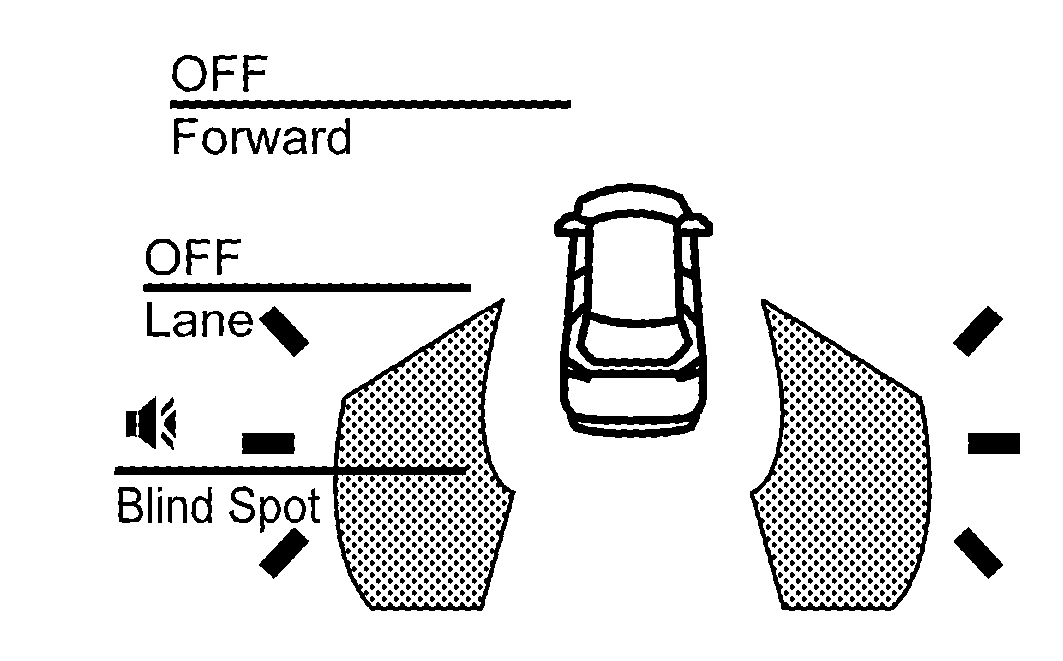

		BSW system indicator : White Speaker icon : Yellow Courtesy of NISSAN NORTH AMERICA, INC.
		Courtesy of NISSAN NORTH AMERICA, INC.

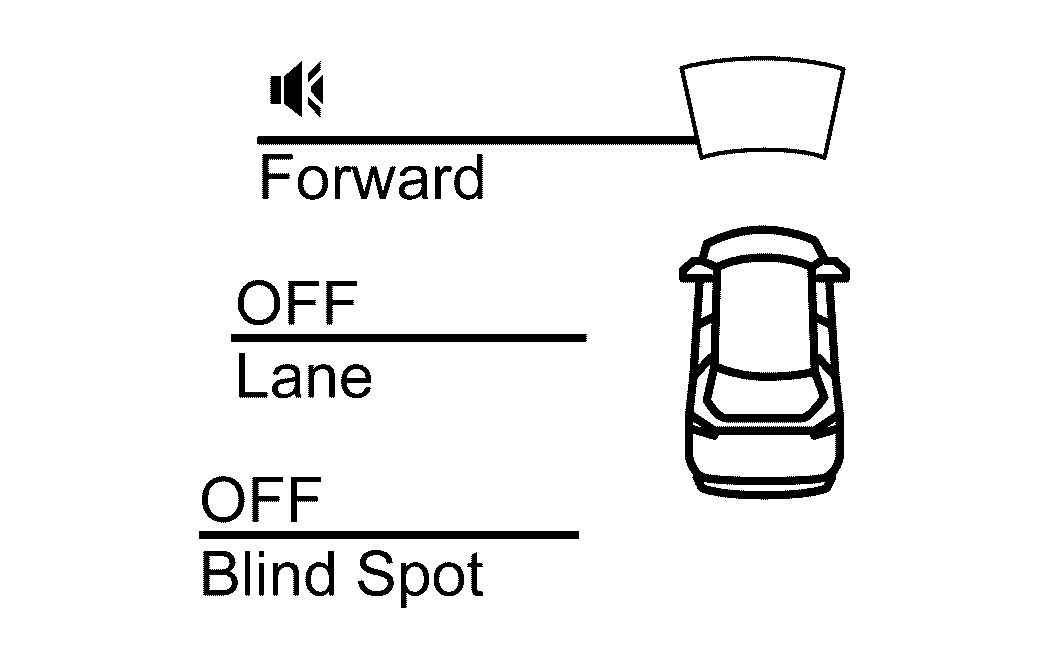

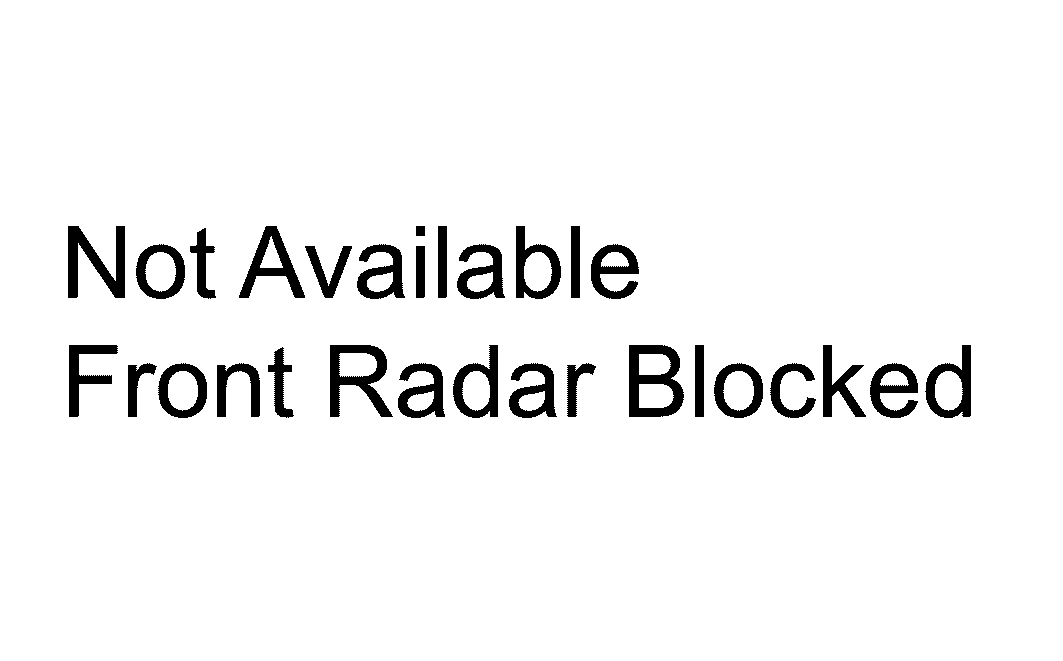

When the distance sensor is dirty, making it impossible to detect a vehicle ahead When driving on roads with limited road structures or buildings (for example, long bridges, deserts, snow fields, driving next to long walls)	A chime sounds and the control is automatically canceled. NOTE: Park the vehicle in a safe place, turn the engine OFF. Check to see if the distance sensor area of the front bumper grille is blocked. If the distance sensor area of the front bumper grille is blocked, remove the blocking material. Restart the engine and then perform the PFCW/FEB system again.	PFCW system indicator : White Speaker icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.
		Courtesy of NISSAN NORTH AMERICA, INC.

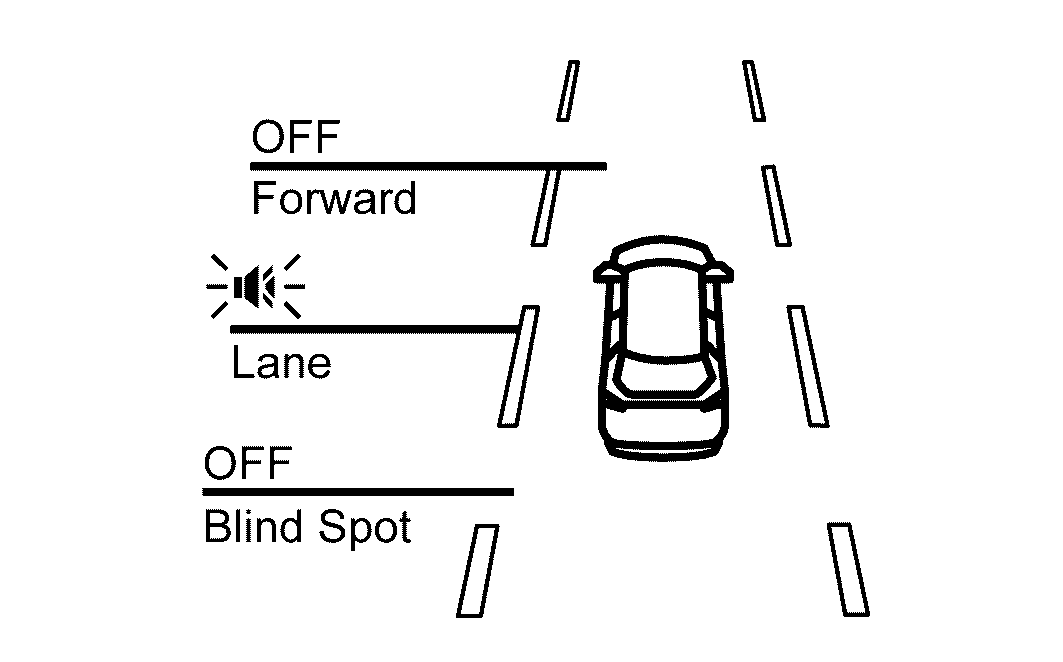

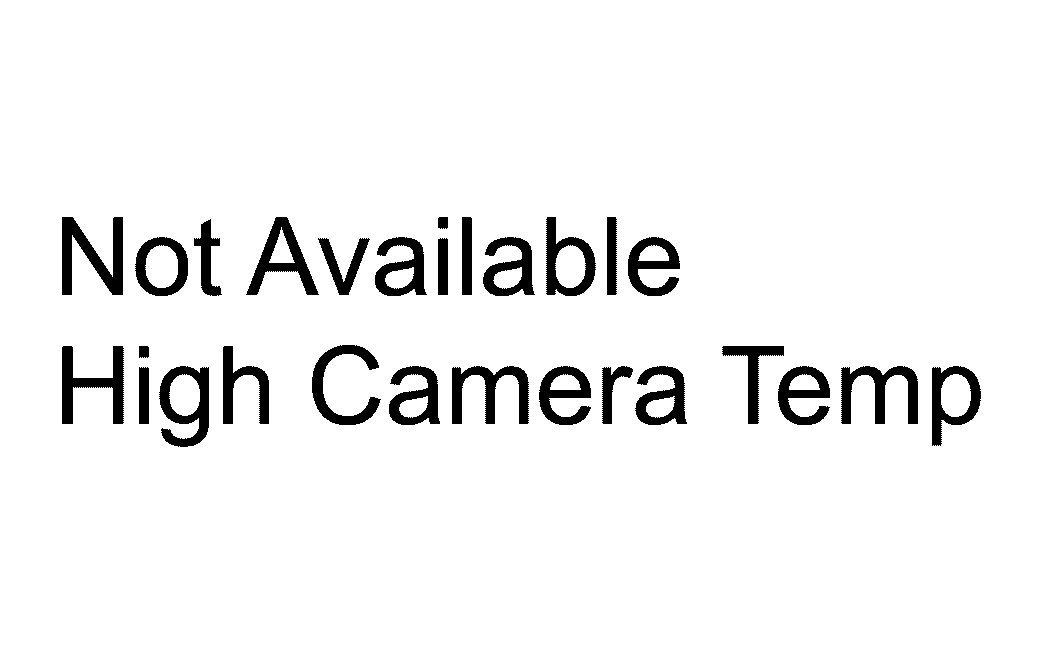

Front camera unit high temperature	The LDW system is automatically canceled.	LDW system indicator : White Speaker icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.
		Courtesy of NISSAN NORTH AMERICA, INC.

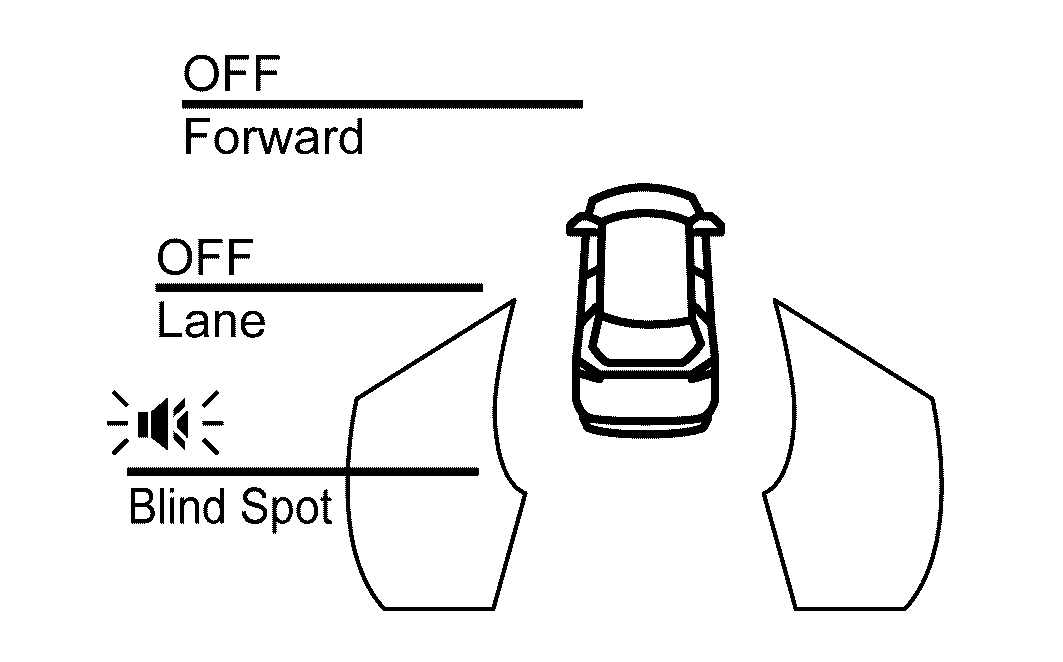

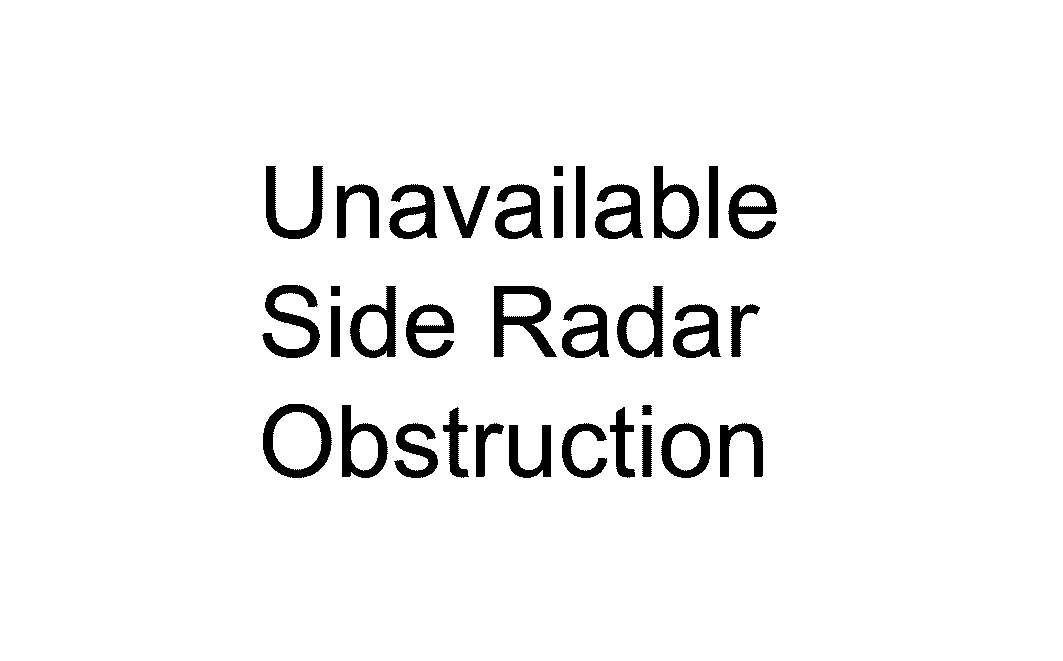

Dirt around the side radar	The BSW system is automatically canceled. NOTE: The system operates if the dynamic driver assistance switch is turned OFF → ON after the condition improves	BSW system indicator : White Speaker icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.
		Courtesy of NISSAN NORTH AMERICA, INC.

Warning Operation

• LDW operation

  Vehicle condition/ Driver's operation			Action
  Vehicle speed (Approx.) [km/h (MPH)]	Turn signal condition	Status of vehicle close to lane marker	Display on information display	Display on Head Up Display	Steering vibration

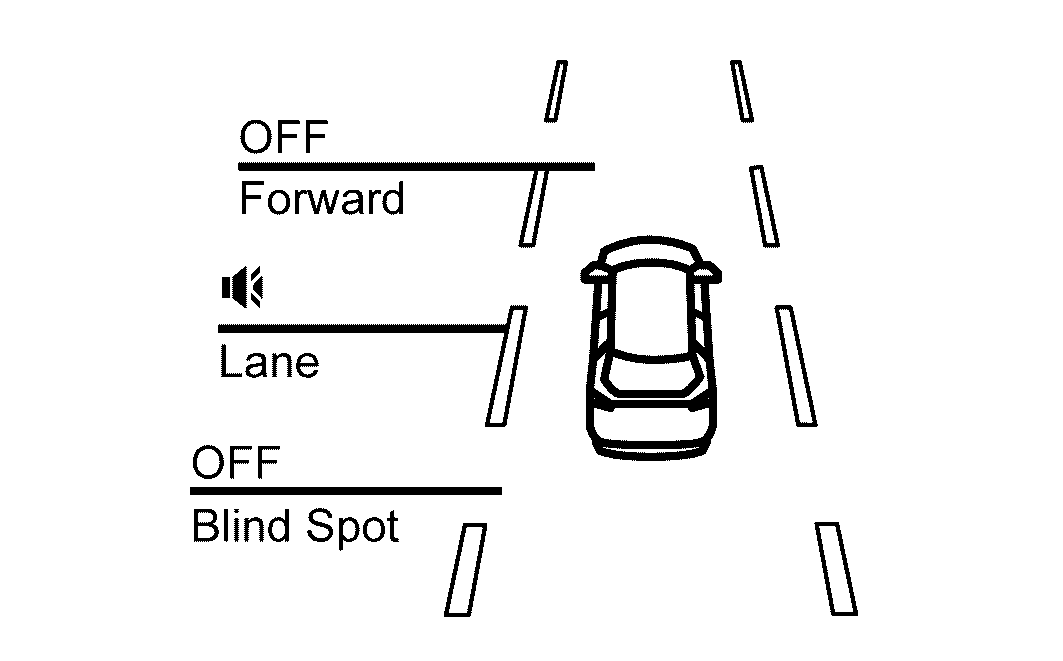

  Less than Approx. 60 km/h (37 MPH)	--	Close to lane marker	LDW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	--	OFF

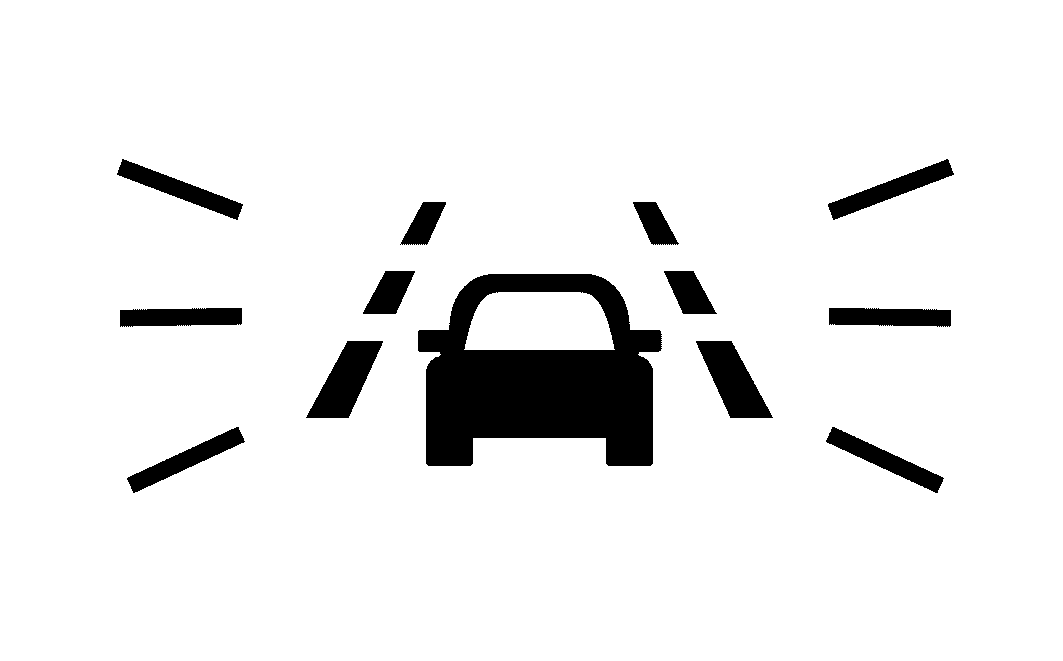

  Approx. 70 km/h (45 MPH) or more	OFF ON (Opposite to the deviate side)	Close to lane marker	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	ON

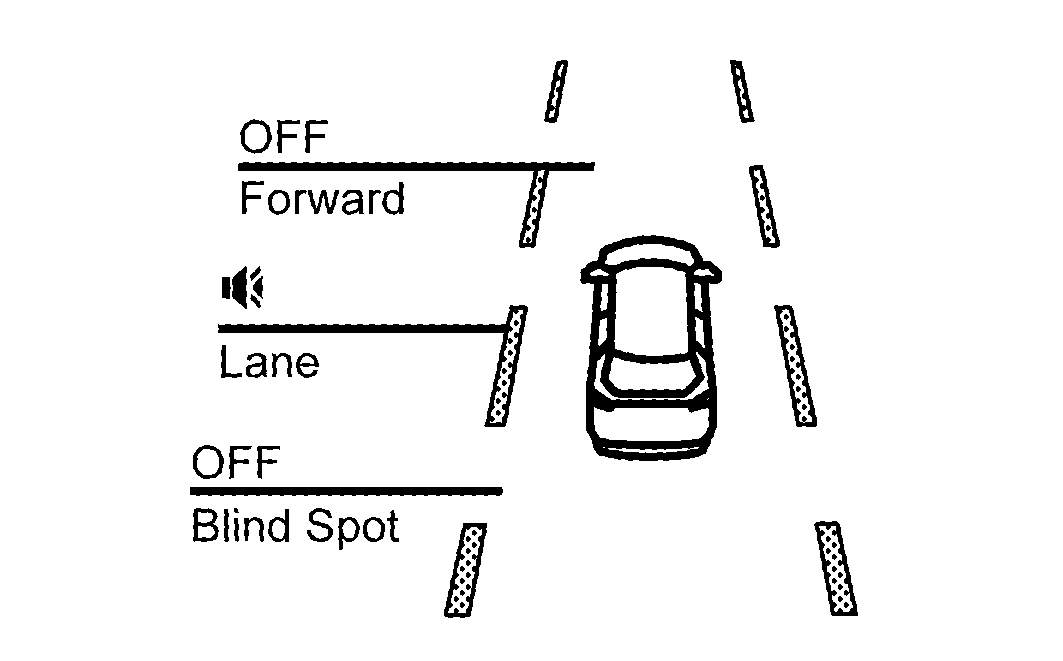

  			LDW system indicator : Yellow (Blink) Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.
  	ON (Deviate side)	Close to lane marker	LDW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	--	OFF

  NOTE: After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches approximately 60 km/h (37 mph). Refer to System Description .

• BSW operation

  Vehicle condition/ Driver's operation			Action
  Vehicle speed (Approx.) [km/h (MPH)]	Turn signal condition	Status of vehicle detection within detection area	Indication on the Blind Spot Warning/Blind Spot Intervention indicator	Display on information display	Buzzer
  Less than approx. 29 (18)	--	--	OFF	BSW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
  Approx. 32 (20) or more	--	Vehicle is not detected	OFF	BSW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
  	OFF	Vehicle is detected	ON	BSW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	OFF

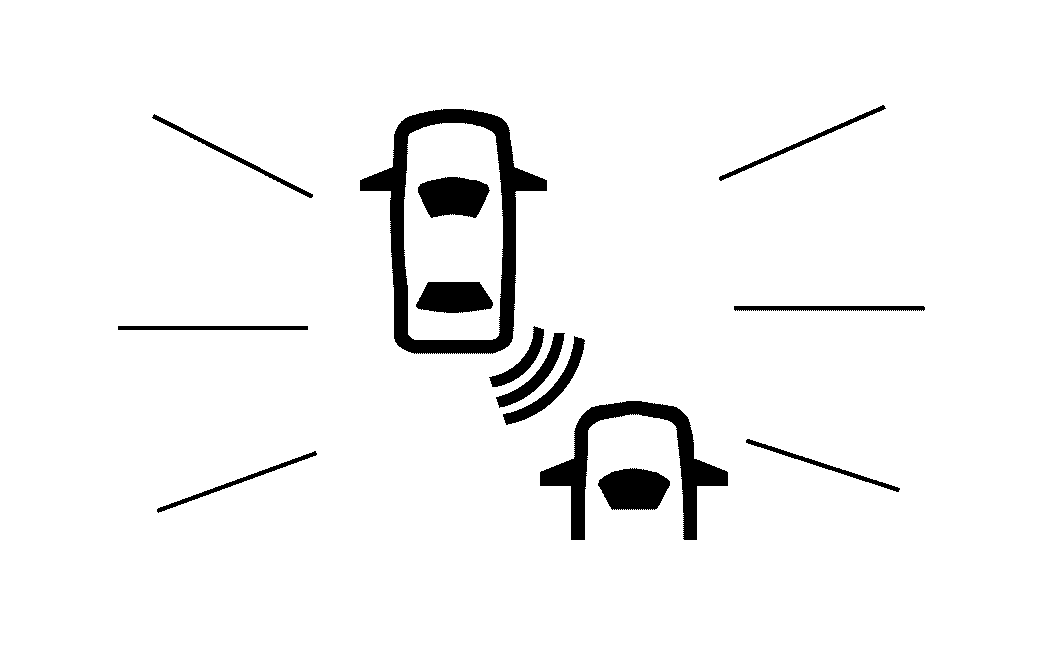

  	ON (vehicle detected direction)	Before turn signal operates Vehicle is detected	Blink	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Short continuous beeps
  				BSW system indicator : Yellow (Blink) Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.
  		Vehicle is detected after turn signal operates	Blink	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	OFF
  				BSW system indicator : Yellow (Blink) Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.

  NOTE:

  • If vehicle speed exceeds approximately 32 km/h (20 mph), BSW function operates until the vehicle speed becomes lower than approximately 29 km/h (18 mph).
  • Time shown in the figure is approximate time.
  • Always Blind Spot Intervention system operates together with BSW system. Whenever Blind Spot Intervention system is turned ON in the integral switch, BSW system will also be turned on even if the BSW system is turned off.
