System Display

PFCW/LDW/BSW

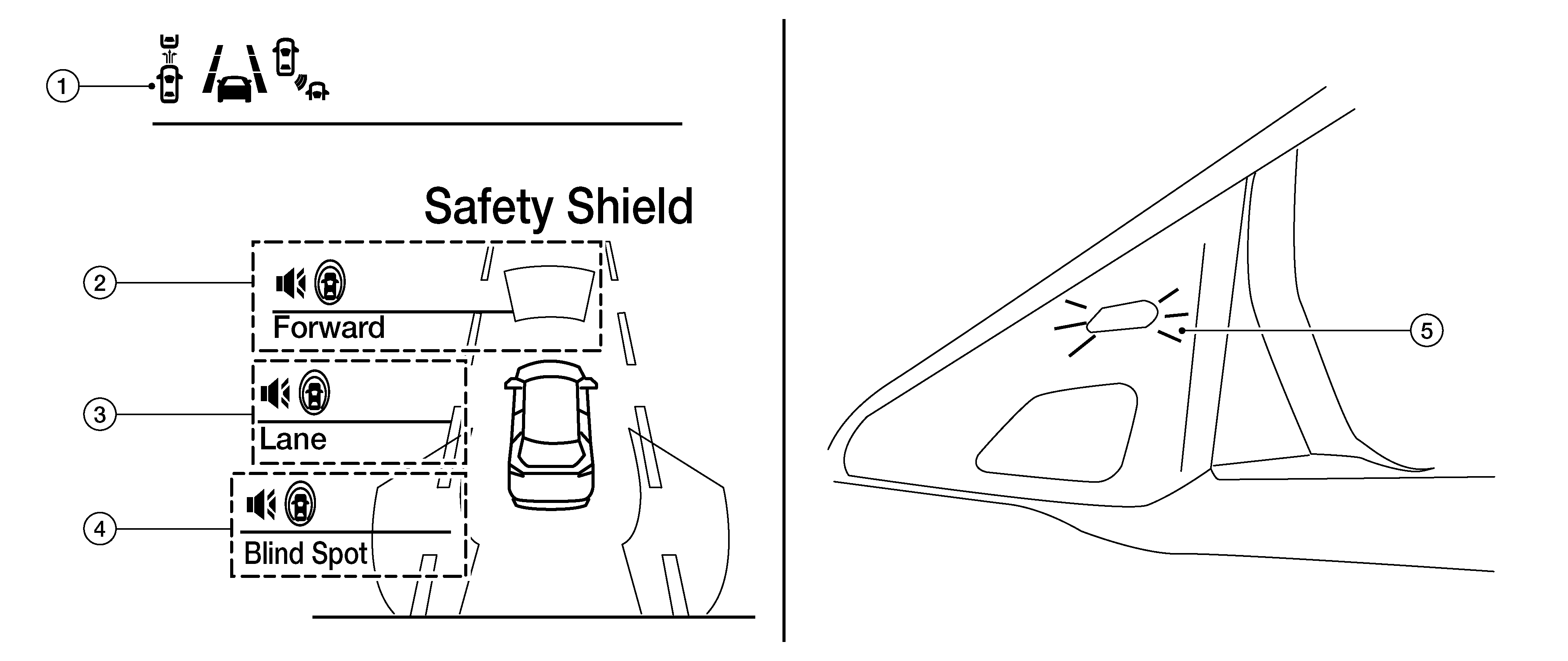

GNSALOIA0067Z-067Courtesy of NISSAN NORTH AMERICA, INC.

No.

Switch name

Description

SYMBOL

Warning systems indicator

Indicates that PFCW/FEB/LDW/BSW systems are ON

SYMBOL

Warning systems indicator "Forward" position

(Speaker icon)

Indicates that PFCW/FEB system is ON

SYMBOL

Warning systems indicator "Lane" position

(Speaker icon)

Indicates that LDW system is ON

SYMBOL

Warning systems indicator "Blind spot" position

(Speaker icon)

Indicates that BSW system is ON

SYMBOL

Blind Spot Warning/Blind Spot Intervention indicator LH/RH
  • Illuminates when detect other vehicles beside vehicle in an adjacent lane
  • Blinks when BSW system is warning to driver
