Display And Warning

System Display

The TSR systems operate when ON is selected with the combination meter.

System status	Condition	Display on combination meter
System status	Condition	Upper part	Middle part
TSR OFF	--	--	Courtesy of NISSAN NORTH AMERICA, INC.

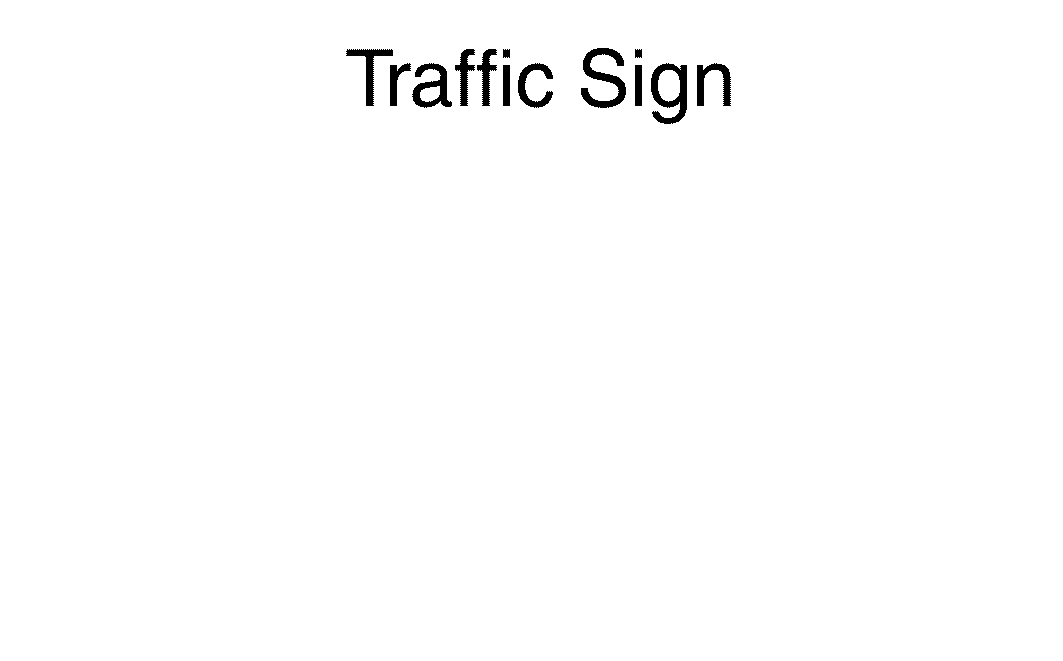

TSR ON	Road sign not detected	--	Courtesy of NISSAN NORTH AMERICA, INC.

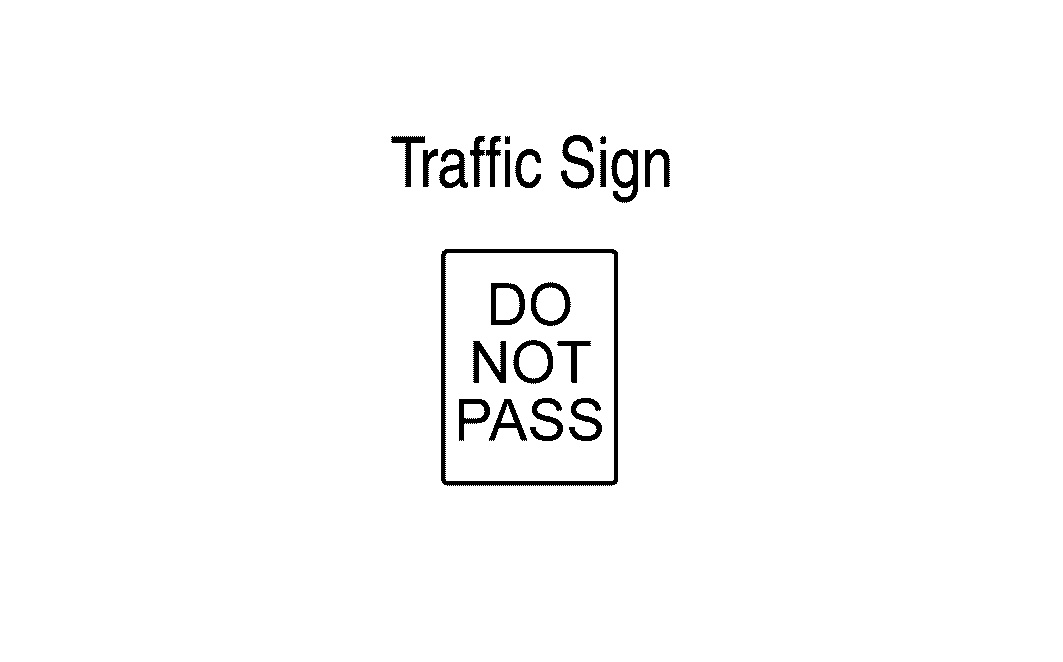

	Road sign detected (except for speed limit signs)	--	This is an example. For details of displayed signs, Refer to System Description . Courtesy of NISSAN NORTH AMERICA, INC.

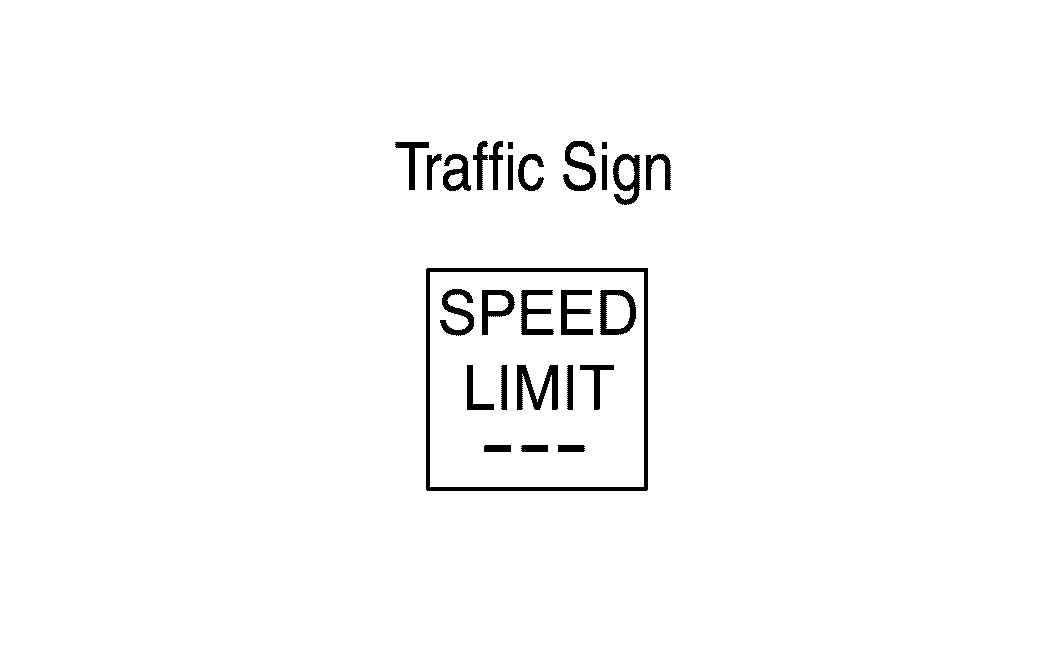

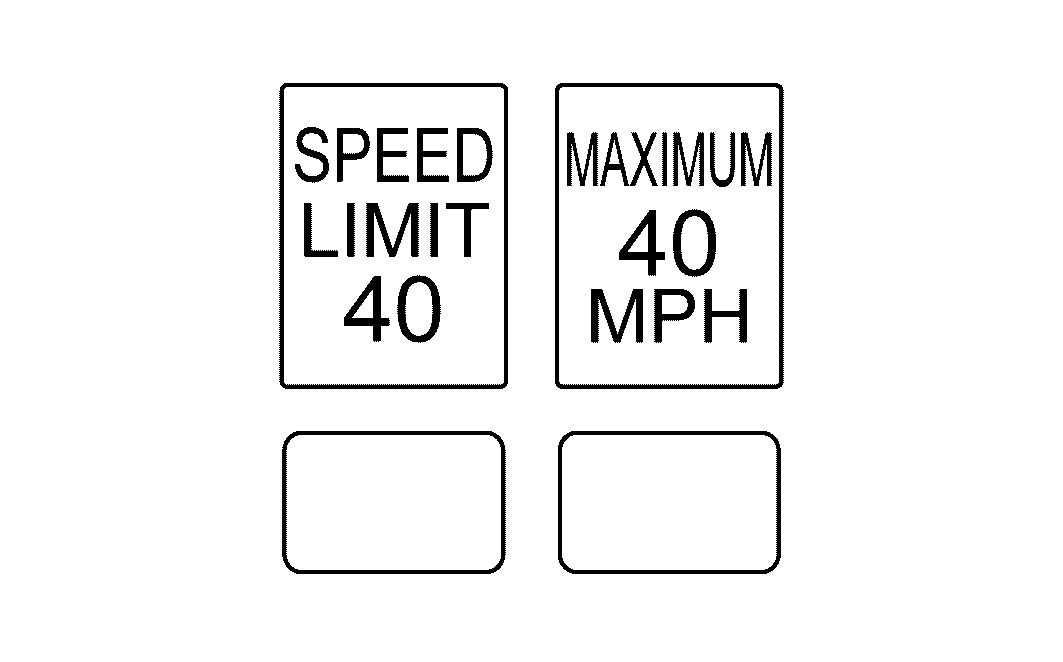

	Road sign detected (Speed limit signs)	This is an example. For details of displayed signs, Refer to System Description . Courtesy of NISSAN NORTH AMERICA, INC.	This is an example. For details of displayed signs, Refer to System Description . Courtesy of NISSAN NORTH AMERICA, INC.
TSR is malfunction	The TSR system is automatically canceled.	--	Malfunction See Owner's Manual
