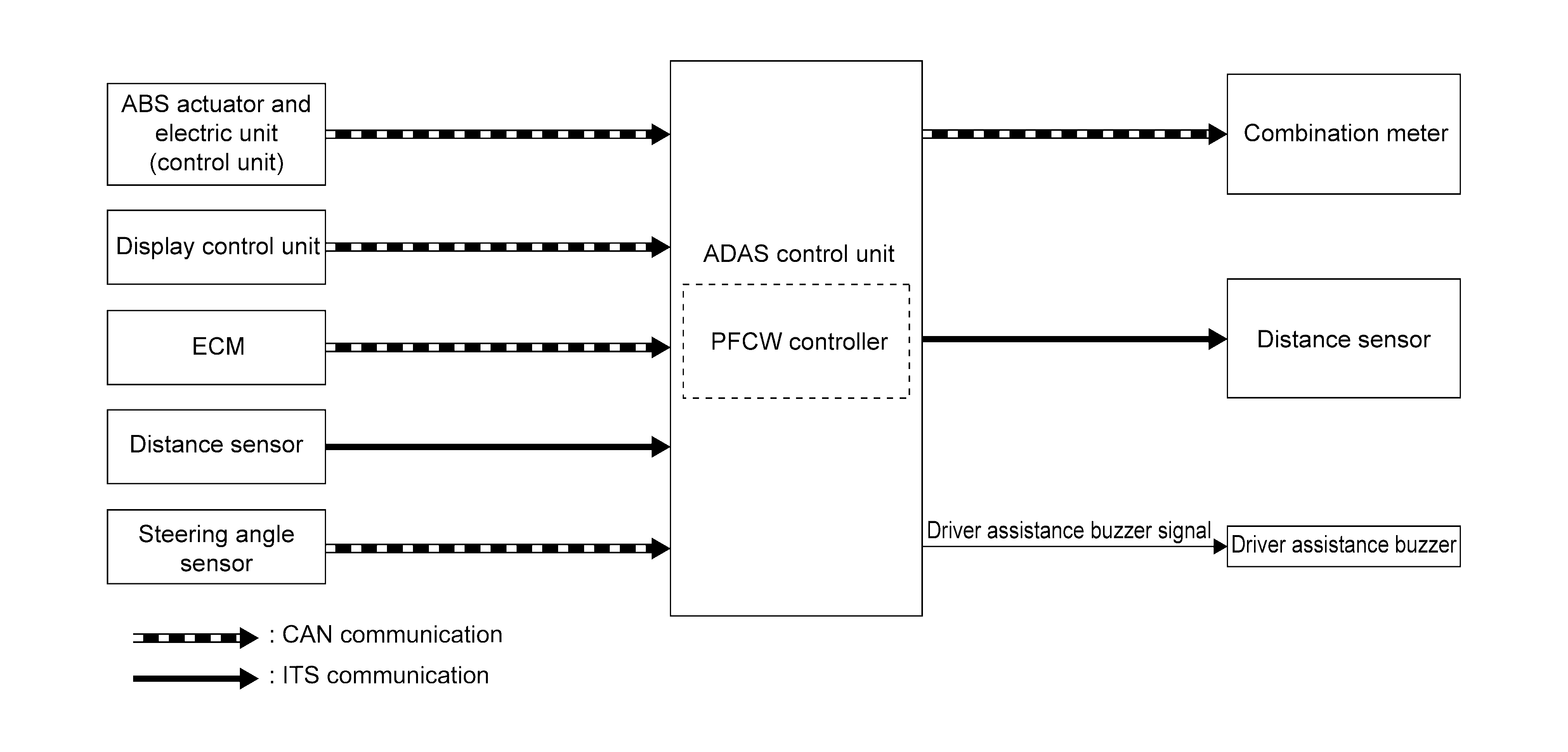

System Diagram

GNSILL0311858-858Courtesy of NISSAN NORTH AMERICA, INC.

Component

Description

ADAS control unit

Component Description

ECM

Component Description

ABS Actuator and Electric Unit (Control Unit)

Component Description

Steering angle sensor

Component Description

Combination meter

Component Description

Display control unit

Component Description

Distance sensor

Component Description
