Exploded View

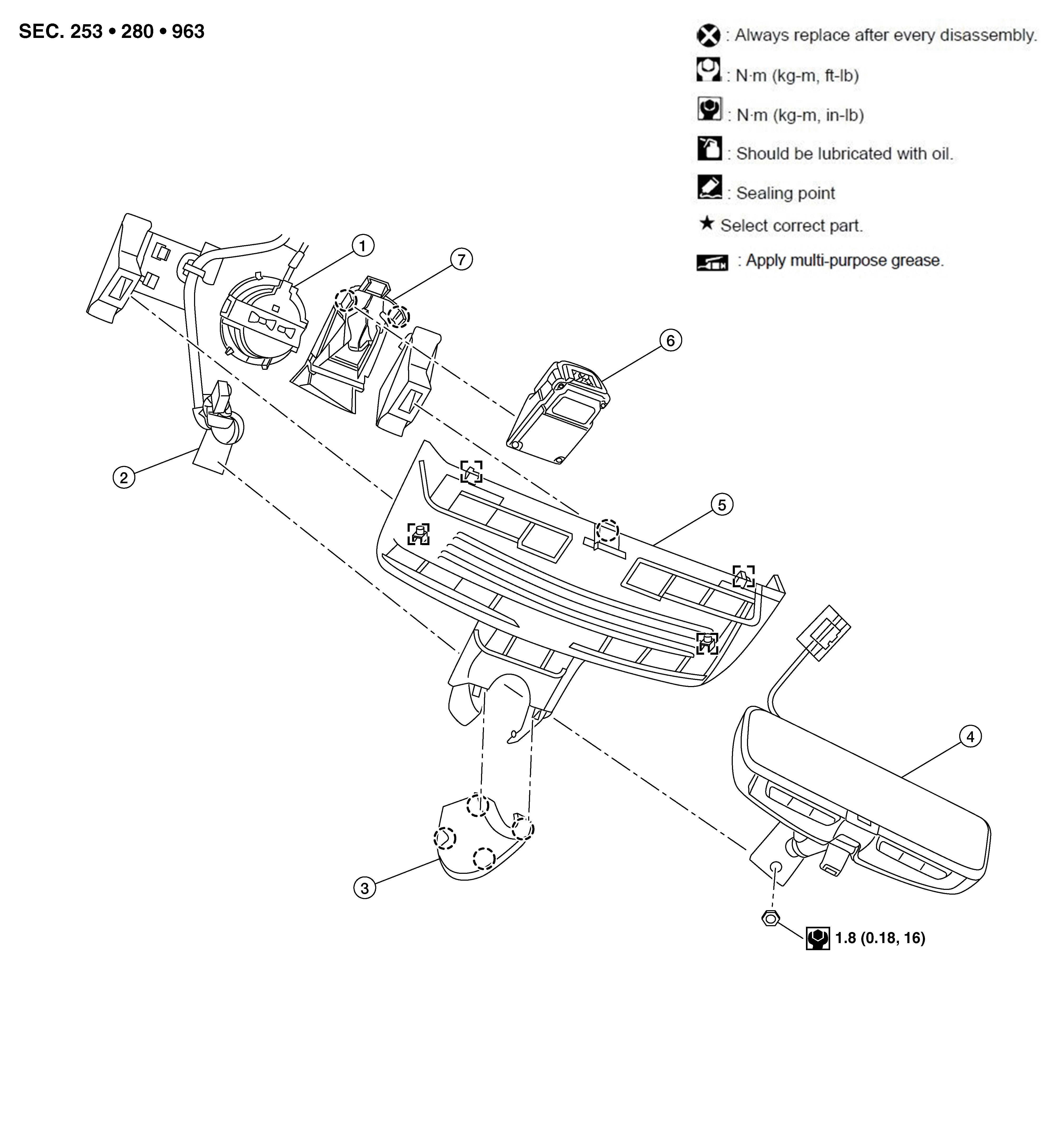

Fig 1: Front Camera Unit Components With Torque Specifications
GNSAWLIA0097Z-097Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rain sensor

2.

Mirror base

3.

Inside mirror cover

4.

Inside mirror

5.

Rain sensor cover

6.

Front camera unit

7.

Front camera unit bracket

SYMBOL

Pawl

SYMBOL

Metal clip
